Gas-insulated medium-voltage switchgear 8DAB 12 - blue GIS

Voltage up to

12 kV
  • Short-time withstand current up to 40 kA

  • Normal current up to 2750 A

  • Single busbar

Get in contact with our experts

Contact the customer service

Product information

8DAB 12 - blue GIS

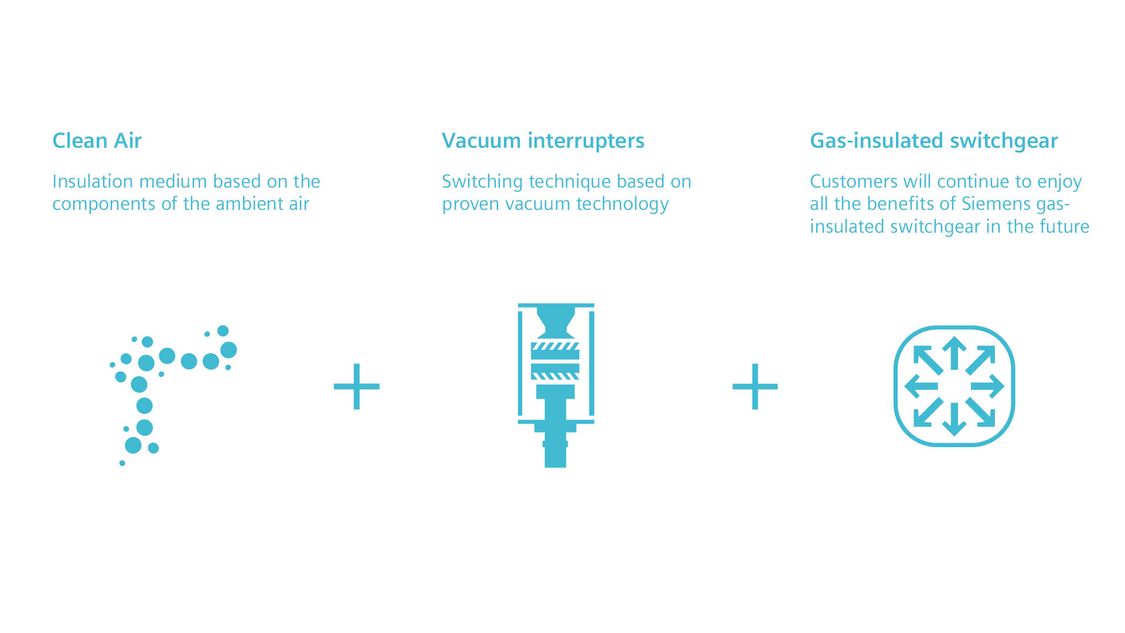

Gas-insulated switchgear (GIS) type 8DA/B has been an integral part of the medium-voltage portfolio at Siemens. More than 100,000 panels of this switchgear type have already been installed worldwide. The 8DA/B portfolio has now been extended by 8DAB 12 – a switchgear using Clean Air, an insulating gas exclusively consisting of natural elements of the ambient air. The new 8DAB 12 belongs to the “blue”-portfolio of Siemens AG. Every GIS of this portfolio is equipped with Clean Air and the proven Siemens vacuum technology, offering all advantages of a gas-insulated switchgear at the same time.

Features of blue GIS

Description of 8DAB 12

  • Up to 12 kV, 40 kA, busbar 2750 A, feeder 2750 A
  • Circuit-breaker panel, bus sectionalizer, disconnector panel, metering panel and cable connection panel
  • Single busbar
  • Single-pole metal-enclosed
  • Gas-insulated
  • Hermetically enclosed
  • Type-tested switchgear according to IEC 62271-100 and IEC 62271-200
  • Clean Air
    - F-gas-free
    - Global warming potential < 1
    - Highly stable
    - Non-toxic
    - Non-flammable
    - For every application temperature
  • Customer benefits
    - Environmental independence
    - Compact design
    - Maintenance-free design
    - Personal safety
    - Security of operation, reliability
    - Economy, ecology

8DAB 12 - blue GIS: Discover your benefits

blue GIS meets the expectations of the Siemens customers further on, for example, with respect to switchgear availability, maintenance-free design, personal safety, compactness, and environmental independence. Clean Air consists of the natural elements of the ambient air and is therefore free of F-gases, with a global warming potential <1, highly stable, non-toxic, non flammable, and suitable for every application temperature.


Please use our service offerings


Further information

Follow the link to our 8DAB 12 brochure.
