Meter Centres

Made in Canada, for Canada

Siemens multi-family metering includes an assortment of module types that can be configured to meet a wide range of residential, commercial or industrial group metering applications. With quality and service being the keystones of Siemens meter centres, the product line is designed and built with the contractor in mind.

Find your Siemens Canada Authorized Distributor

Authorized Distributors

Product Portfolio

240V Modular Meter Centres

120/240V 1PH 3W or 120/208V 3PH 4W
Horizontal bus bar rated at 600A or 1200A
Vertical bus rated at 800A per section
Meter Stacks are offered along with many sub-service module options
Standard and Feed-Through Tap Boxes available
Suitable for left and right hand side entry
Provisioned for 2 or 3 Pole Circuit Breakers

Power Product Catalog Extract

Features and Benefits

Direct Tap Feature

When using Siemens' direct tap Main Lug Feed Kit for services at 600A, no tap box is required. This allows for the connection of main incoming cables directly to the Meter Stack main bus and eliminates the need for a sub service tap box saving considerable installation room.

Flexibility

Siemens service entrance equipment can be top or bottom fed for single connection or feed through applications. A user-friendly combination of knockouts is factory installed at the top to minimize installation time.

Modular Design

Each individual slide-in module design allows for fast installation and provides flexibility for future needs. If the branch requirement changes, the module can be interchanged without changing the complete stack.

600V Modular Meter Centre

600Y/347V 3PH 4W
Horizontal bus bar rated for 1200A
Vertical bus rated at 800A per section
Each stack includes neutral and ground provisions
Sub-service modules contain 7 Jaws and are rated at 200A
Standard and Feed-Through Tap Boxes available
Suitable for left and right hand side entry
Close coupled option with Siemens SMP switchboard
Provisioned for 3 Pole Circuit Breakers

Application Guide

Features and Benefits

Reliable Design

Robust and compact enclosure standard with dripshield
Large wireway separated from meter area for easier connections
Trouble-free access to horizontal bars and easy access to cabling area

Sturdy Bus Connection

Simple and sturdy bussing connections providing durable support for each sub-service breaker
Breaker and bus bar protection allowing screws recuperation
Reliable and simple busbar to busbar connections

Simple Installation

Easy access to horizontal bar connections and bottom plate simplifying the installation process.
Load cables can enter the meter centre enclosure at the top and/or the bottom
Removable bottom plate to facilitate drilling holes for cable entry

Build your Meter Centre

Meter Stacks

All meter stacks are designed for “cold metering” in which individual subservice breakers are connected on the line side of the meter sockets thereby protecting the meter and all electrical equipment installed subsequent to it. Main bus connector kits are available to allow the connection of two meter stacks.

240V Meter Stacks can be offered with or without meter sockets.
600V Meter Centers are offered with four 7-Jawed meter sockets rated at 200A each.

Dimensions

Meter Stack Dimensions
Meter Stack Family	Height - Inches (mm)	Width - Inches (mm)	Depth - Inches (mm)
240V Meter Stacks (1PH & 3PH)	78" (1981mm)	14" (356mm)	7 1/4" (184mm)
600V Meter Stack	76 1/4" (1937mm)	20 5/8" (524mm)	13 15/16" (354mm)

Meter Sockets

Meter socket jaws consist of tin plated copper with steel spring reinforced clips for reliable contact pressure. The positive alignment of jaws and stabs is assured by bus straps which are bolted in place for 240V meter centres and factory installed for 600V meter centres.

240V Meter Stacks can fit sockets with 4 to 7 Jaws and rated up to 200A each
600V Meter Stacks can fit up to four 7 Jawed Sockets rated at 200A each

Dimensions

Meter Socket Dimensions
Meter Socket Voltage	Amperage	Jaws	Height - Inches (mm)
120/240V	125A	4	8 7/8" (225mm)
120/240V	200A	4	13 5/16" (338mm)
120/208V	125A	5	8 7/8" (225mm)
120/208V	200A	5	13 5/16" (338mm)
120/208V	100A	7	13 5/16" (338mm)
120/208V	100A	7	26 5/8" (676mm)
600/347V	200A	7	13 1/10" (333mm)

Tap Boxes

A Tap Box mounts directly next to the Meter Stack and is required to accommodate the incoming main service cable, unless a Main Lug Feed Kit is used for a 240V Meter Centre at 600A.

Standard and Feed Through tap boxes are availble at 600A or 1200A with connecters included. They can be offered with punched or unpunched aluminum or fiber entry plates.

Dimensions

Tap Box Dimensions
Tap Box Voltage & Type	Amperage	Height - Inches (mm)	Width - Inches (mm)	Depth - Inches (mm)
240V Standard	400/600A or 800/1200A	25 3/4" (655mm)	20 1/2" (521mm)	7 1/4" (184mm)
240V Feed Through	400/600A	25 3/4" (655mm)	20 1/2" (521mm)	7 1/4" (184mm)
240V Feed Through	800/1200A	46 1/4" (1175mm)	24" (610mm)	7 1/4" (184mm)
600V Standard	600A or 1200A	25 1/8" (638mm)	27 1/4" (692mm)	13 15/16" (354mm)
600V Feed Through	600A	25 1/8" (638mm)	27 1/4" (692mm)	13 15/16" (354mm)
600V Feed Through	1200A	50 5/8" (1285mm)	27 1/4" (692mm)	13 15/16" (354mm)

Circuit Breakers

240V Meter Centre Breakers

Compact, high performance type plug-in or bolt-on circuit breakers can be selected to address site requirements. Interrupting ratings of up to 100kA combine thermal and magnetic trip elements that feature isolated pole construction with a common trip bar for multiple pole devices, silver alloy contacts, and high pressure straight-in load connectors.

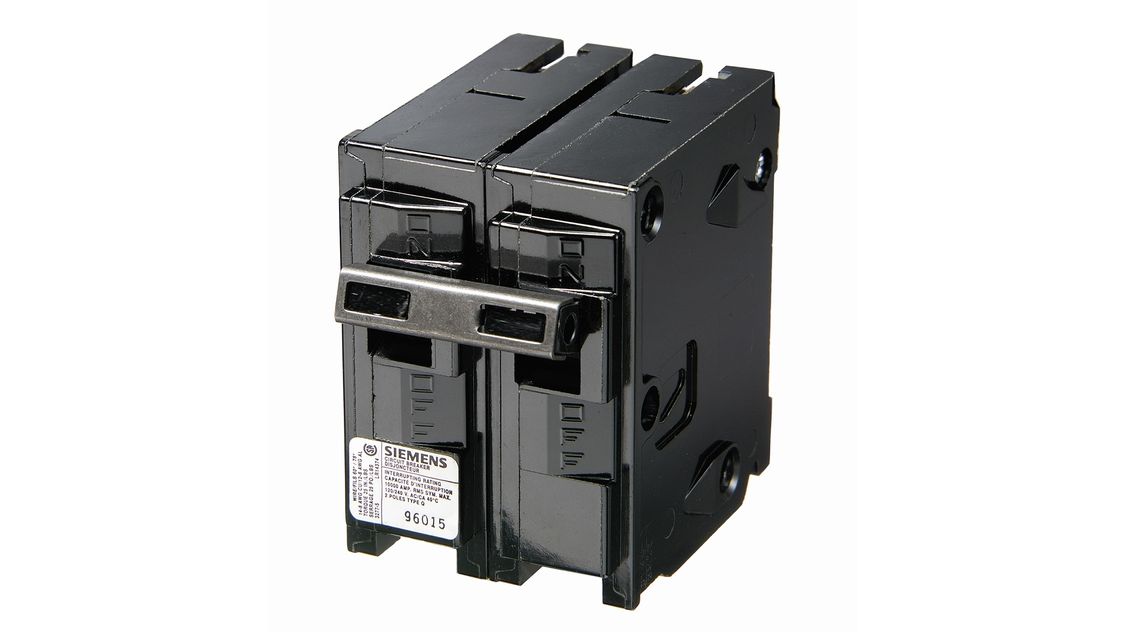

QP & EQ Plug-in Breakers

QP Breakers

KAIC rating of 10, 22, or 65 kA
2 Pole 60-125A
3 Pole 60-110A

EQ Breakers

KAIC rating of 10 or 22 kA
2 Pole 150-200A

BQ Bolt-on Breakers

BQ Breakers

KAIC rating of 10, 22, or 65kA
2 Pole 60-125A
3 Pole 60-100A

QR Bolt-on Breakers

QR Breakers

KAIC rating of 10, 22, or 65kA
2 Pole 125-200A
3 Pole 125-200A

600V Meter Centre Breakers

Each 600V meter stack has provision for four 3-pole 200A max bolt-on type FXD6/HFXD6 circuit breakers. Non-interchangeable trip unit breakers must be used for this application. Generous gutter space allows for wiring for the top or the bottom of the meter module.

FXD/HFXD6 Breakers

3 Pole 70-200A
22kA or 25kA maximum interrupting rating
Non-interchangeable trip only
Mounting hardware provided with meter stack

Find Solutions

Safety Switches

For our 240V meter centers, fusible switches can be placed directly next to a metering stack with a Standard Tap Box or a Main Lug Feed Kit. Easy to mount general and heavy duty safety switches are available for each application.

Safety Switches Product Catalog Section

Accessories

Filler plates, lug kits, and mounting rails are available for our meter centers. We also offer a variety of replacement parts including jaw front cover plates and breaker mounting kits for our breakers.
