Efficient power transmission and distribution

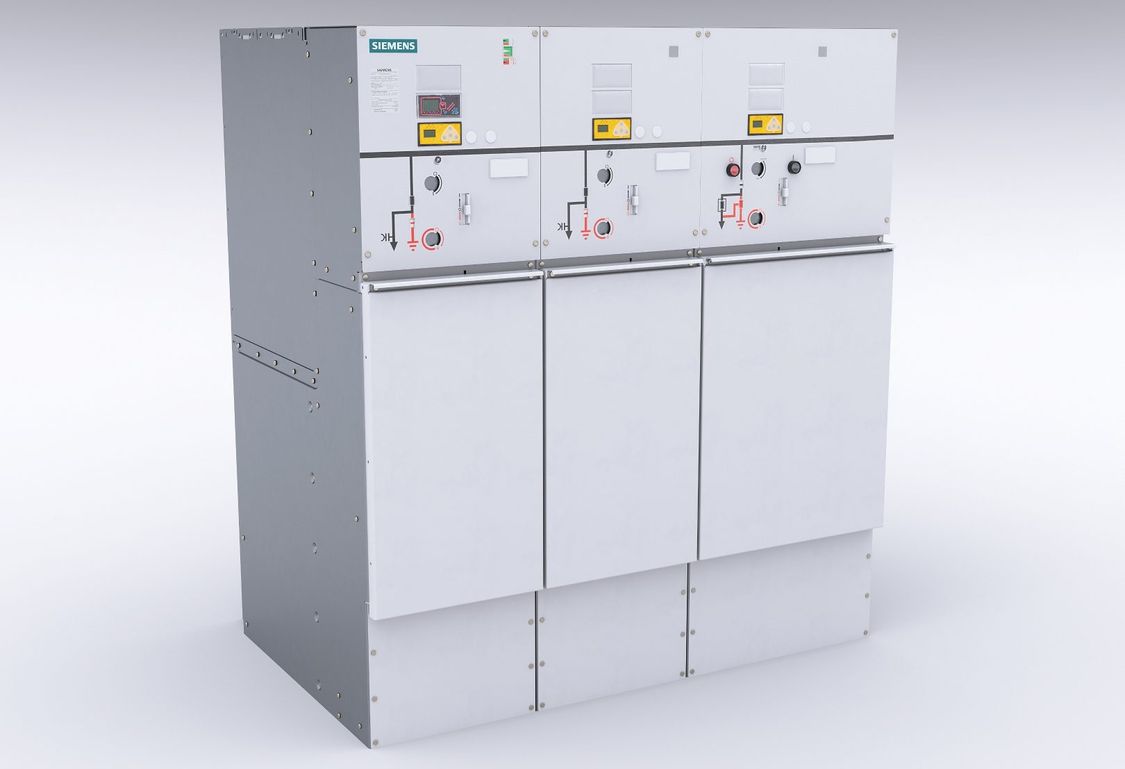

In the electrical power distribution of a wind turbine, the maintenance-free 8DJH 36 gas-insulated medium-voltage switchgear assumes a key role. Thanks to its modular, compact design, it fits easily in the tower of the wind turbine and offers maximum flexibility in terms of system configuration. The installation of the supply points in the immediate vicinity of the consumers possible in this way also reduces the energy losses. Optionally, the 8DJH 36 can also be used, for example, in onshore and offshore wind farms in arc-tested outdoor enclosures with up to four branch feeders.

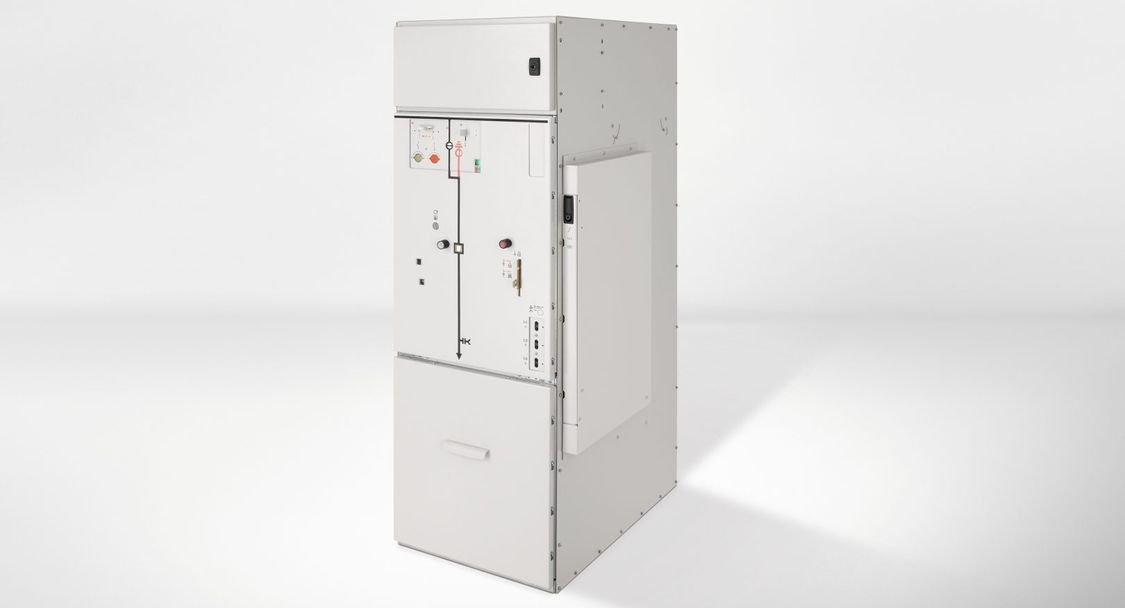

Operators of wind turbines must be able to rely above all on the safe and reliable operation of their wind farms. And because these are often difficult to access (e.g. offshore) and faults in a wind turbine can often only be repaired after several days, switchgear for wind turbines such as the NXPLUS C Wind are built particularly reliably. Their reliability is based on more than 30 years of experience in gas-insulated switching technology and the use of proven components.

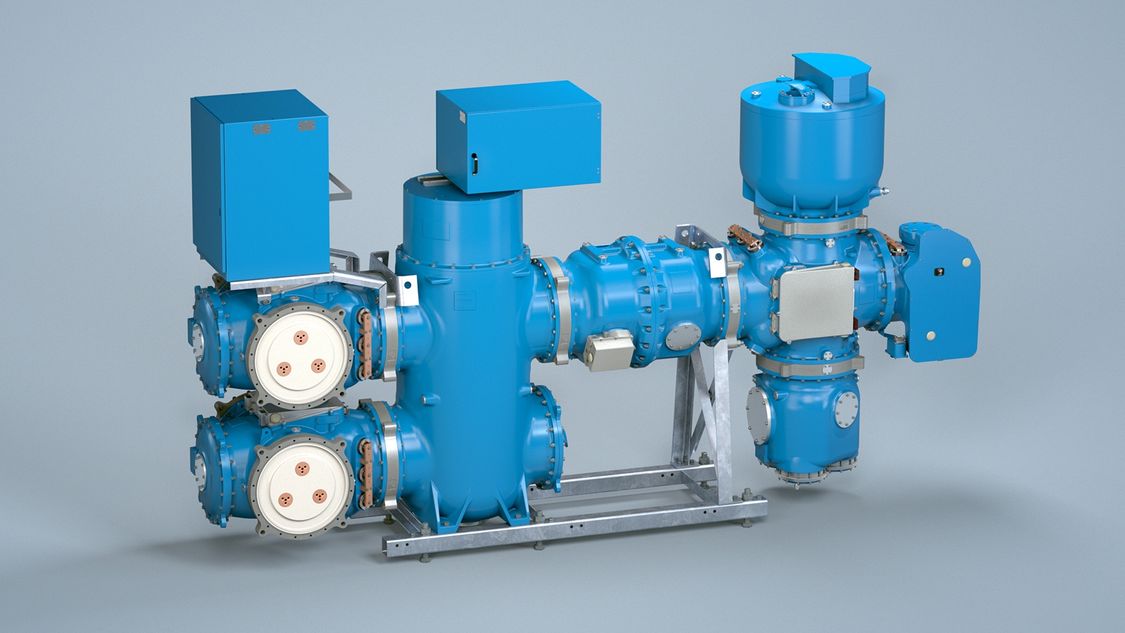

State-of-the-art wind turbines are becoming more and more efficient. However, when the power increases, so too does the amount of current to be transferred – and thus the cable losses. One way out is to use higher voltages, for which Siemens offers an innovative solution with the 8VM1 blue GIS gas-insulated switchgear. Their insulating medium is not SF6, but instead clean air, an environmentally neutral mixture of 20 % oxygen and 80 % nitrogen. In addition, the 8VM1 blue GIS uses innovative technology with vacuum circuit breakers up to 72.5 kV: The environmentally friendly technology has been successfully used in high-voltage switchgear since 2010.

Environmentally friendly, safe, reliable, with low fire load: GEAFOL cast-resin transformers are ideal for use in your wind turbine. With their compact dimensions, they fit into the smallest niche and their low weight (-10 %) relieves the load of the entire construction. With their high mechanical strength, they are also suitable for use in the nacelle.

Reliable quality for your wind turbine. For insulation purposes we use, for example, an environmentally friendly MIDEL® filling that does not endanger the groundwater. This means that liquid-immersed distribution transformers from Siemens can be used without any problems both onshore and offshore. This is supported by the compact, maintenance-free Tumetic design of the transformers, which also convince with low losses and a long service life.

Economical, reliable and safe - the SIVACON 8PS LDM busbar trunking system has been specially developed for the efficient power transmission between the nacelle and the base of the tower and has been proving itself in practical use: with its compact design, low-loss connection technology, pre-installed busbar elements, optimized material usage, low fire load and much more.

In addition, the LDM system can be combined with the LD and LDM-P systems, thus opening up further possible solutions for wind turbines.

It is crucial for the success of wind power projects to optimally protect investments in plant technology from network disturbances or lightning strikes. This includes protecting the main circuit, but also ensuring the voltage quality in the auxiliary circuits. Suitable monitoring via communication-capable switching devices such as the 3WL molded case circuit breaker enables errors to be detected early and minimizes downtimes through timely maintenance or remote switch-on from the control center. Furthermore, energy monitoring offers numerous options for optimizing system efficiency.
