SCALANCE X-200 Gigabit switch

SCALANCE X-200 Gigabit switch product family

High performance for applications from the machine level up to networked plants

Find solutions for many industrial applications easily and reliably. With our SCALANCE X-200 Gigabit switches, you benefit from maximum handling flexibility. Their robust and compact design with a range of port constellations makes them suitable for many different demands.

Select the right SCALANCE X-200 Gigabit switch for your needs

TIA Selection Tool

Get a promotional package – and quickly install a cost-effective gigabit network

Gigabit networks provide the prerequisite for securely collecting, aggregating, processing and securely transporting large data amounts to the cloud. With our promotional package, you can set up a gigabit network cost-effectively and in just a few steps.

Directly select and order via the Industry Mall

Product family

SCALANCE X-200 Gigabit switch in detail

Suitable for many tasks: Our SCALANCE X-200 product line offers you a wide variety of high-performance Ethernet switches in different variants – from Gigabit switches, to robust switches for process industry requirements.

XC-200
XF-200BA
XP-200
XB-200
X-200IRT
X-200IRT PRO
Port characteristics (max.)
electrical / optical
24x RJ45 /
2x ST or SC or SFP
4x LC, SC RJ or 2x ST
16x M12
13x RJ45 /
3x SC or ST
4x RJ45 / 4x SC RJ
4x RJ45 / 3x SC RJ
Temperature range
 -40 °C to +70 °C
 -40 °C to +70 °C
 -40 °C to +70 °C
0 °C to +60 °C
 -25 °C to +60 °C
 -40 °C to +70 °C
Design / Protection class
Plastic housing / IP20
Plastic housing / IP20
Metal housing / IP65
Plastic housing / IP20
Metal housing / IP30
Metal housing / IP65/67
Transmission rate
10/100/1,000 Mbit/s
10 Gbit/s
10/100 Mbit/s
10/100/1,000 Mbit/s
10/100 Mbit/s
10/100 Mbit/s
10/100 Mbit/s
Software coverage
managed Layer 2
managed Layer 2
managed Layer 2
managed Layer 2
managed Layer 2
managed Layer 2
Redundancy protocols
RSTP+, MRP, MRP-Interconnect
RSTP+, MRP, MRP-Interconnect
RSTP+, MRP, MRP-Interconnect
RSTP+, MRP, MRP-Interconnect
MRP
MRP
Special features
EEC variants with conformal coating
PoE variants (max. 300W), C-plug
ET 200SP design, conformal coating, C-plug, BusAdapter (BA)
Outdoor-ready, railway approvals
PoE variants (max. 120W), C-plug

Real-time applications with PROFINET IRT
Outdoor-ready, real-time applications with PROFINET IRT
Industry Mall

Flexible Gigabit switch for general applications

SCALANCE XC-200 Industrial Ethernet Gigabit switches offer many functions: Virtual LANs (VLAN), redundancy mechanisms, and optional complete PROFINET or Ethernet/IP diagnostics in one device.

Using the Fast Ethernet and Gigabit versions, powerful, reliable Industrial Ethernet networks can be established, and electrical and optical topologies likewise. For bandwidth-intensive applications, e.g. in tunnels, or high-availability control concepts, the SCALANCE XC-200G Gigabit switches are the ideal choice.

Typical uses

Thanks to a wide range of features, such as an extended temperature range (‐40°C to +70°C) and approvals for railway applications (trackside) and explosion-proof areas (ATEX Zone 2, IECEx), different SCALANCE XC‐200 Gigabit switches can be flexibly deployed in a variety of environments: machine construction, automotive industry, food and beverages industry, along rail-mounted routes in tunnels with video transmission, e.g. for height checks, or in oil and gas industry. In addition, optical lines can be monitored for wear and tear or contamination with the Fiber Monitoring function, thus avoiding downtimes.

Video: SCALANCE XC-200 Gigabit switch

Applications inside and outside the control cabinet and with high performance: Watch the video to discover the benefits of our SCALANCE XC-200 Gigabit switches.

Find your SCALANCE XC-200 Gigabit switch in the Industry Mall

Select and order now

Network switch with extremely flat design

The SCALANCE XF-200BA Industrial Ethernet switches have the same extra-flat design as the SIMATIC ET 200SP with a flexible bus adapter concept: This allows installation of various network topologies for copper or fiber-optic cables. In addition, there are SCALANCE XF-200BA network switches with the same flat design as the SIMATIC ET 200S, various port constellations and a diagonal cable outlet.

Typical uses

Equipped with coated printed circuit boards (Conformal Coating) and with a temperature range of -40°C to +70°C, the managed switches are ideal for use in manufacturing and process automation, for example in automobile manufacturing or in the Oil and Gas industry.

SCALANCE XF-200BA managed in the Industry Mall

Select and order now

Gigabit switch for cabinet-free use in harsh environments

Gigabit switches from the SCALANCE XP-200 product line are characterized by a robust and flat metal housing, with M12 connection technology in a high protection class (IP65). Up to four gigabit ports enable the transmission of large amounts of data. Devices with a total output of 120 W can be supplied via Power over Ethernet (PoE). Like all managed layer 2 switches, the SCALANCE XP-200 features numerous functions – such as virtual LANs (VLAN) and redundancy mechanisms – which can be switched for complete PROFINET or EtherNet/IP diagnostics.

Typical uses

SCALANCE XP-200 Gigabit switches are suitable for cabinet-free installation and can be used both indoors and outdoors. A robust and reliable operation is thus provided in many industries – ranging from automotive, transportation, food & beverage, to oil & gas.

Video: SCALANCE XP-200 Gigabit switch

Watch the video to learn how you can ensure reliable, end-to-end data transfers with our SCALANCE XP-200 Gigabit switches, even in the harshest environments.

Find your SCALANCE XP-200 managed Gigabit switch in the Industry Mall

Select and order now

Network switch with more functions in small spaces – selectable with PROFINET and EtherNet/IP

The managed switches of the SCALANCE XB-200 product line save space and feature a lightweight, industry-compatible plastic housing. They support PROFINET and EtherNet/IP (optionally switchable) and can thus be used for real-time communication applications.

Typical uses

SCALANCE XB-200 switches enable the setup of virtual networks thanks to their VLAN (Virtual Local Area Network) functionality and can also be deployed in potentially explosive areas (IECEx/ATEX Zone 2/UL HazLoc).

Video: SCALANCE XB-200

Watch the video and discover our universal SCALANCE XB-200 network switches with many functions for industrial network design.

Find your SCALANCE XB-200 managed network switch in the Industry Mall

Select and order now

Operation in strict real time

Specially designed for strict real-time applications: The SCALANCE X-200IRT Ethernet switches come in extremely compact or flat design and are especially easy to use.

Typical uses

The SCALANCE X-200IRT (Isochronous Real-Time) Ethernet switches are extremely versatile, they can be used for machine-level applications right up to networked units in PROFINET environments. The SCALANCE X-200IRT switches with integrated real-time ASIC are ideal, for example, for high-performance, isochronous motion control applications.

Find your SCALANCE X-200IRT Ethernet switch in the Industry Mall

Select and order now

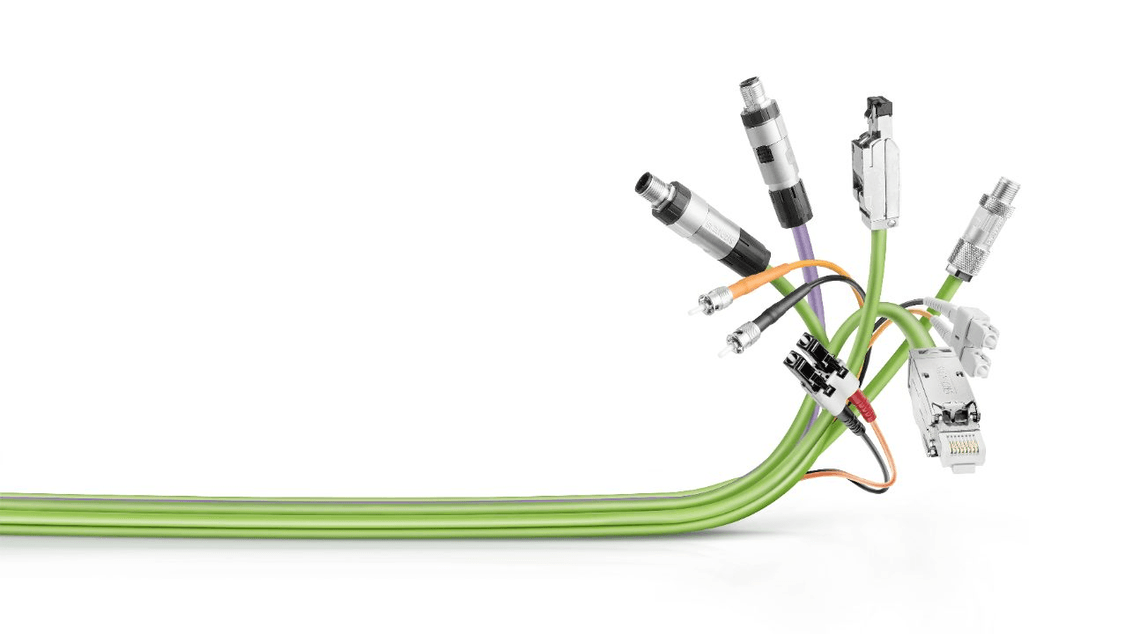

FastConnect – a cabling system gets the hang

Structured cabling is the basis of an industrial bus system or network and must fulfill much higher requirements than cabling in the office area. Stringent demands are placed on the installation of cables in the industrial environment. For the SCALANCE X-200 Gigabit switches Siemens offers FastConnect, a system that fulfills all these requirements: On-site assembly – quick, easy and error-free.

PLUGs for network components

Swap devices easily with no need for special knowledge: The C-PLUG, KEY-PLUG, and SCALANCE CLP removable storage media save the configuration data from your SCALANCE devices. Remove PLUG, install replacement device, insert PLUG – and the new device is ready to go! The KEY-PLUGs include all the functions of the C-PLUG and also enable specific functions like the Features in SCALANCE X-200 Gigabit switches.

Industrial Ethernet switch for the process industry

Discover our robust SCALANCE X-200 Industrial Ethernet switches to meet the stringent demands of the process industry.
