IWLAN RCoax Cable

In a complex radio environment, RCoax coaxial cables ensure reliable connections in the Industrial Wireless LAN (IWLAN)

Coaxial cable as antenna: RCoax radiating cable for industry

Whether it’s cranes, elevators, or rail-guided vehicles like overhead monorails, IWLAN RCoax radiating cables enable a reliable radio connection where conventional antennas are difficult to install or aren’t suitable for wireless communication.

Select directly and order from the Industry Mall

To the Industry Mall

Product description

Radiating cable for demanding radio environments

The IWLAN RCoax coaxial cable’s radio quality is impressive; and it’s also robust and can be easily installed along the route and without special approvals in potentially explosive atmospheres (Zone 2).

Easy integration of the IWLAN RCoax Cable in wireless networks

For wireless applications in Industrial Wireless LANs, the IWLAN RCoax Cable is available in two variants for the 2.4 GHz and 5 GHz frequency bands. RCoax radiating cables can be easily connected to SCALANCE W Access Points as an external antenna. The mobile participants are connected conveniently with SCALANCE W Client Modules.

Operating principle of the IWLAN RCoax Cable

RCoax radiating cables are Wireless LAN (Wi-Fi) antennas for industrial applications that can be laid as a cable. The coaxial cable is installed along the route that is used by moving participants, e.g. within the rail of an overhead monorail. The radio signal exits through openings in the outer conductor – thus establishing the radio connection with the mobile participant.

Reliable radio connection with IWLAN RCoax Cable

Thanks to its special radiation characteristics, the IWLAN RCoax Cable can establish a reliable radio field also in places where ordinary omnidirectional or directional antennas do not achieve continuous coverage, as with overhead monorails. With the RCoax Cable, the radio field can be defined along the route, such as a rail, without causing interference in other network segments of the production.

Select your right product!

TIA Selection Tool

Here’s why a transmitting coaxial cable: The benefits

More antennas and other accessories

As an alternative to the IWLAN RCoax Cable, you can also combine your SCALANCE products with other antenna types featuring different radiation characteristics. Of course, you will also find other accessories that are optimally matched to the SCALANCE products, such as cabling technology and mounting accessories – including cables, lightning protection elements, and plug-in connectors.

WLAN from the control cabinet

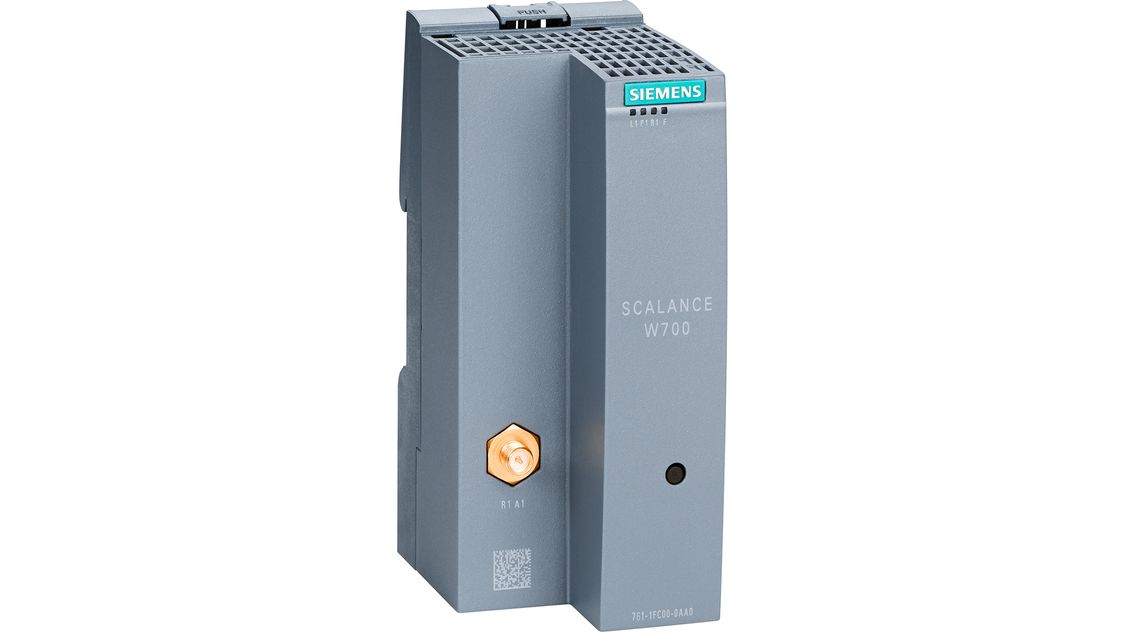

Implement wireless networking of machines easily and economically – with SCALANCE W760 Access Points and SCALANCE W720 Client Modules! Due to their practical SIMATIC design, minimum space is required in the control cabinet when integrating automation components such as a SIMATIC ET 200SP seamlessly into an industrial WLAN, in accordance with the IEEE 802.11n standard and with data rates of up to 150 Mbps.

WLAN for indoors, outdoors and in harsh environments

The SCALANCE W Access Points and Client Modules for demanding solutions can be used in a variety of ways. In combination with additional industrial functions (the so-called iFeature functionalities), application possibilities open up that go far beyond standard WLAN. For example, wireless real-time communication including safety-oriented communication with a focus on personal safety, or redundancy via WLAN.

Depending on the location and communication requirements of the application, different device classes are particularly well suited.

For particularly high bandwidths

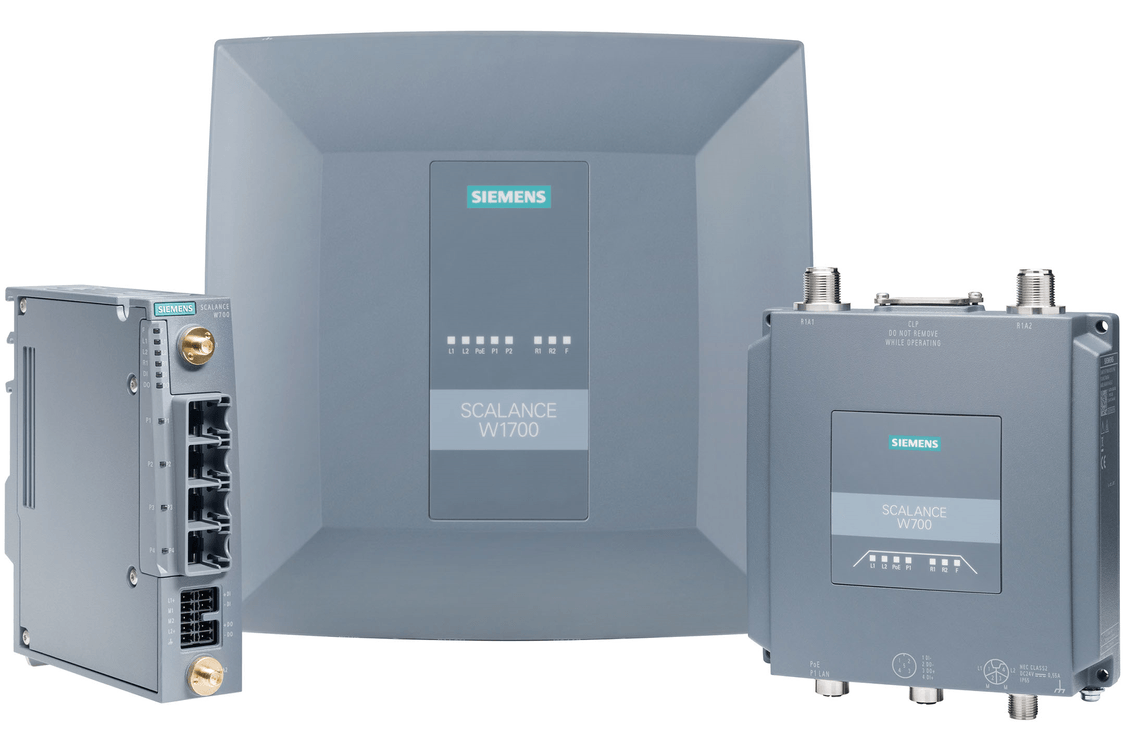

The SCALANCE W1780 Access Points and SCALANCE W1740 Client Modules according to wireless LAN standard IEEE 802.11ac Wave 2, and the SCALANCE WAM766-1 Access Points and SCALANCE WUM766-1 Client Modules according to IEEE 802.11ax (Wi-Fi 6) can be used to implement applications even in harsh industrial environments that require particularly high bandwidths, e.g., for high-performance video transmission.

References

IWLAN RCoax Cable in practical use

Our IWLAN solutions are already being used in practice with success – including in combination with other industrial communication network components, of course. Find interesting customer reference stories here.
Industrial Wireless LAN (IWLAN) from Siemens is specifically designed to meet industry’s high demands for reliability, safety, security, and flexibility

IWLAN: The Wireless LAN for demanding industrial applications

Want to know more about our complete Industrial Wireless LAN portfolio? Are you interested in sample applications from specific industries? Visit our website!

Further information

Downloads, Support and Services

Here you will find additional information about our products and services.

The fastest way to the experts

Proposed solutions for your queries and direct access to our experts in Technical Support

Service offers

To remain competitive over the long term, companies in industry must ensure – and ideally increase – the availability and productivity of  machines and plants. As your partner, we offer a unique range of services and support based on our extensive technology and industry expertise.

Well trained for excellent handling

Receive standardized or individual expertise directly from the manufacturer – with training centers in more than 60 countries.

Teaser Cybersecurity for Industry
Cybersecurity for Industry

Security information

In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial security concept. Siemens’ products and solutions only form one element of such a concept. For more information about industrial security, please visit.



siemens.com/cybersecurity-industry

Direct path to fast, reliable and robust IWLAN

To develop or modernize your wireless communication system, Siemens not only offers the ideal hardware and high-performance additional functions designed especially for the needs of industry; our experts will also advise you and put the ideal solution in place for you, individually tailored to your application. Don’t delay – talk to us now.
