RUGGEDCOM PoE power supplies and injectors

RUGGEDCOM PoE power injectors Keyvisual

Power up your network edge

The RUGGEDCOM RPS2410, RPS1300 rugged Power-over-Ethernet power supplies and RP100 power injectors help reduce costs for networks in harsh environments by eliminating the need for separate power and data cabling.

Find the right product for your needs

RUGGEDCOM Selector

Overview

Rugged communications for harsh environments

Designed for and put to the test under the harshest environments, RUGGEDCOM products meet and exceed recognized industry standards for performance in mission-critical applications.
RUGGEDCOM PoE power supplies and injectors

Eliminate separate power and data cabling

Like all RUGGEDCOM products, the family of PoE power supplies and injectors are built to meet and exceed recognized industry standards when it comes to performance in harsh environmental conditions.

Reliable and powerful

The RUGGEDCOM RPS2410 rugged power supply is designed to meet the high-power demands of physical security, access control, wireless connectivity, lighting, and other PoE applications in industrial networks.



A single RUGGEDCOM RPS2410 can provide up to 600 watts and cascaded to provide power redundancy at high temperatures of up to 75 °C and up to 1560 watts of DC power with two other RPS2410 devices.



The RUGGEDCOM RPS2410 is compatible with all RUGGEDCOM Power-over-Ethernet switches, such as the RUGGEDCOM RST2228P, RST916P, RSG920P and RS900GP. Tested and certified to the NEMA TS 2 standard, the RUGGEDCOM RPS2410 is the ideal solution to power several IIoT devices in ITS networks and other industries experiencing harsh ambient conditions.



Ideal companion for:

Small but powerful design

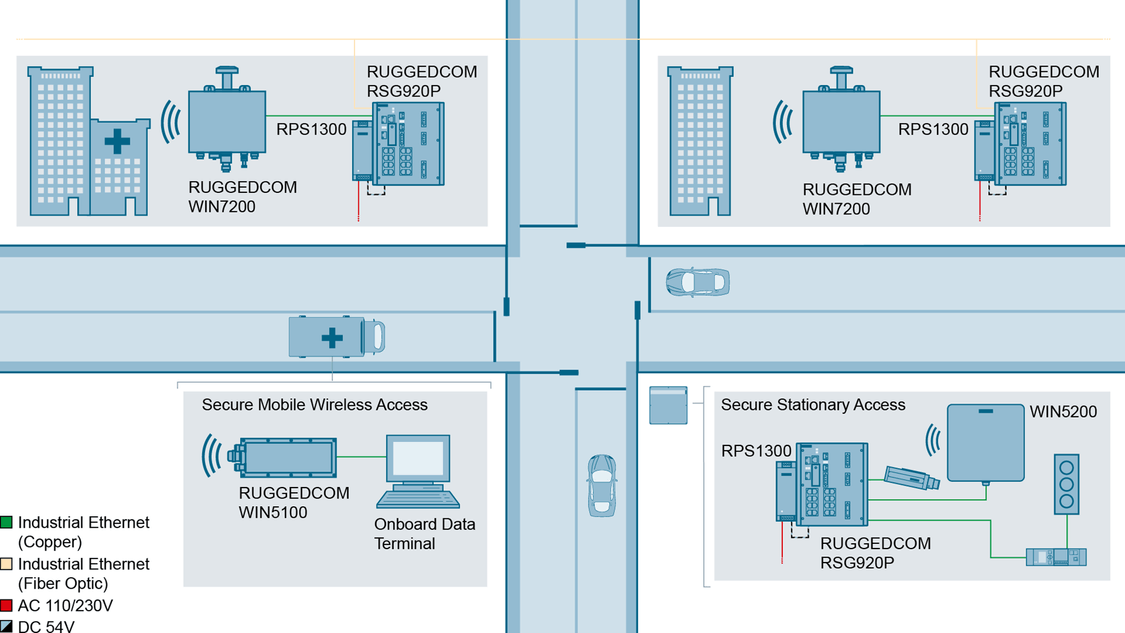

Tested and certified to the NEMA TS 2 standard, the RUGGEDCOM RPS1300 is the ideal solution to provide PoE power for RUGGEDCOM devices in harsh conditions such as those experienced in roadside traffic cabinets.



The RUGGEDCOM RPS1300 can fully support four PoE ports on the RUGGEDCOM RSG920P and RUGGEDCOM RS900GP at 30W each or all eight PoE ports of the RS900GP at 15W each. This makes it ideal for applications involving PoE devices such as PTZ cameras, VoIP phones, and Bluetooth/Wi-Fi enabled sensors.



Ideal companion for:

Reliable and cost-effective

  • Reliable: There for you when you need it, the RUGGEDCOM RP100 offers stability and performance under high levels of temperature variation, EMI stress and voltage fluctuations that occur in electrical and industrial applications.
  • Flexible: When it comes to network design, this configuration-free plug and play device is suitable for any PoE connection and supports a wide range of AC and DC input voltages.
  • Cost-effective: Reduce the cabling, connection and power supply requirements of your PoE device with DIN rail or panel mount space-saving design.
  • Certified: The RUGGEDCOM RP100 is certified under the same tests as protection and control devices, such as a protective relay, to offer maximum performance even under harsh conditions.

Ideal companion for:

Products at a glance


RPS2410
RPS1300
RP100
Type
PoE Power Supply
PoE Power Supply
PoE Power Injector
Description
Reliable rack mount 600W power supply for high powered PoE applications
Provides up to 140 watts of DC power to support up to four 802.3at ports or eight 802.3af ports for all RUGGEDCOM Power-over-Ethernet products
Single RJ45 port power injector for PoE (IEEE802.3af + 802.3at)
Type of Current Supply
Input: 120/240 VAC, 150/250 VDC
Output: 54 VDC / 11.1 A
Input: 120/230 VAC, ​
Output: 54 VDC / 2.6 A
-
Power Supply

1 x power supply Input

1 x Output terminal (2 pins output, 2 pins input)

2 x ISHARE

1 x power supply Input
1 x Output terminal (2 pins output, 2 pins input)
-
Signaling Contacts​
1 x Normally Open (NO)
1 x Normally Closed (NC)
1 x Common (C) Relay Output​
1 x Normally Open (NO)

-
Mounting
19" rack or panel mounting
Compact DIN Rail Mounting
Compact DIN Rail Mounting
Dimensions (mm)
Width 440 x Height 51.5 x Depth 267.5
Width 42 x Height 125 x Depth 125
Width 56.5 x Height 117.5 x Depth 95.2
Operating Temperature Range
-40° C to +75° C
-40° C to +75° C
-40° C to +85° C
