RUGGEDCOM WIN private wireless broadband

Product shot of RUGGEDCOM WIN base stations and subscriber units for private wireless broadband networks

Base stations and subscriber units for private wide area networks (PWAN)

Explore our wireless communications solutions for private critical infrastructure in harsh environments – such as those found in the electric power, transportation and aerospace industries.

Find the right product for your needs

RUGGEDCOM Selector

An image of airport representing how RUGGEDCOM WIN for AeroMACS enables reliable 4G WiMAX wireless private wide area communication networks

RUGGEDCOM WIN for AeroMACS

A secure and cost-efficient solution, RUGGEDCOM WIN for AeroMACS wireless technology ensures reliable high bandwidth data communications and information sharing on the airport surface. It is also recommended by the International Civil Aviation Organization and is WiMAX certified.

Find out more
Overview

RUGGEDCOM WIN subscriber units and base stations

The first field-proven broadband wireless product portfolio designed for private networks, RUGGEDCOM WIN products deliver the benefits of carrier-grade 4G WiMAX at ranges of up to 40 km.
Watch the video to learn more about RUGGEDCOM WIN solutions.

Designed for high availability over a wide temperature range and in harsh environments

Other features and benefits include:

  • Quality of service: built-in quality of service lets operators guarantee latency over a mix of IT and OT applications.
  • CBRS support: RUGGEDCOM WIN solutions support the Siemens SAS (Spectrum Access System) gateway, which offers access to the Citizens Broadband Radio Service frequency spectrum.
  • Security: the right security feature set for critical infrastructure to enable compliance with legal mandates and security guidelines.



Find out more about the products

Industry Mall

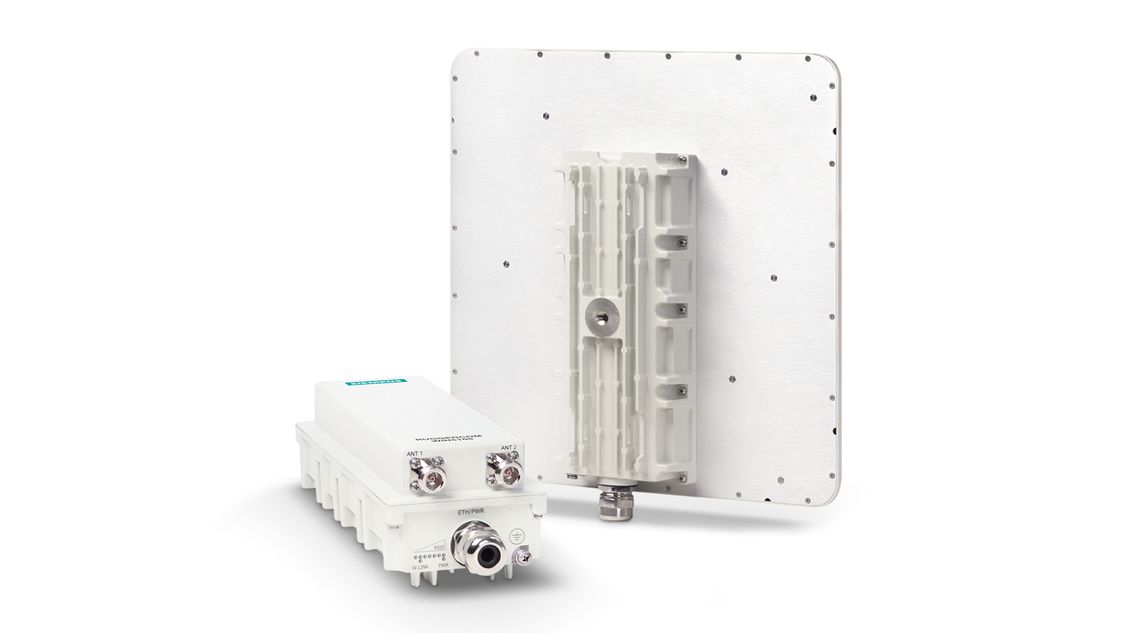

Product shot of RUGGEDCOM WIN subscriber units for private wireless critical infrastructure

For seamless communications, global availability and excellent performance over long distances

RUGGEDCOM WIN subscriber units enable secure, long-range connectivity by extending IP networks over long distances to fixed and mobile users.



With wide frequency band support for worldwide deployments, these subscriber units offer excellent performance in non-line-of-sight (NLO) conditions. Supported applications and services include guaranteed data, VoIP, video, and other services based on advanced QoS.

RUGGEDCOM WIN5100 vehicular subscriber unit

This broadband wireless subscriber unit is not only compliant with the IEEE 802.16e standard, but also offers external RF connectors for use in fixed or mobile applications in harsh environments.



A self-learning subscriber device, the WIN5100 automatically detects the base station on the best available signal. This allows for plug-and-play installation and maintenance-free operation.

RUGGEDCOM WIN5100-V enhanced vehicular subscriber unit

Built to sustain shock and vibration in compliance with heavy rail industry certifications, the WIN5100-V can be installed on vehicles such as trucks and tractors as well as in fixed locations susceptible to vibration, such as runways.



The WIN5100-V supports 9-36 VDC and comes with an optional GPS receiver for accurate location sharing with devices behind the subscriber unit or over-the-air using the 802.16e protocol.

RUGGEDCOM WIN5200 outdoor subscriber unit

This IEEE 802.16e-compliant broadband wireless subscriber unit comes with a built-in directional antenna for use in harsh environments.



Specifically designed for point-to-multipoint broadband wireless access applications, the WIN5200 greatly simplifies installation with LEDs for signal strength alignment, automatic connection to the strongest serving base station, and automated service provisioning.

Products at a glance


RUGGEDCOM WIN5100
RUGGEDCOM WIN5100-V
RUGGEDCOM WIN5200
Description
Vehicular Subscriber Unit
Enhanced Vehicular Subscriber Unit
High Gain Outdoor Subscriber Unit
Operating frequency

1350 … 1525 MHz/ 1800 - 1830 MHz/

2300 … 2400 MHz/ 2496 … 2690 MHz/

3400 … 3600 MHz/ 3600 … 3800 MHz/

4900 … 5000 MHz/ 4900 … 5200 MHz /

5000 … 5150 MHz  for AeroMACS / 5725 … 5850 MHz

1350 … 1525 MHz/ 1800 - 1830 MHz/

2300 … 2400 MHz/ 2496 … 2690 MHz/

3400 … 3600 MHz/ 3600 … 3800 MHz/

4900 … 5000 MHz/ 4900 … 5200 MHz /

5000 … 5150 MHz  for AeroMACS / 5725 … 5850 MHz

1350 … 1525 MHz/ 1800 … 1830 MHz/

2300 … 2400 MHz/ 2496 … 2690 MHz/

3400 … 3600 MHz/ 3600 … 3800 MHz /

4900 … 5000 MHz / 5000 … 5150 MHz  for AeroMACS / 5725 … 5850 MHz
Communication standard
IEEE 802.16e
IEEE 802.16e
IEEE 802.16e
Antenna
2 N-type antenna connectors for connection to external omni or directional antenna
2 N-type antenna connectors for connection to external omni or directional antenna
High gain integrated directional dual slant antenna
Flexible configurations
Designed for vehicular, cabinet or pole top installations
Designed for vehicular, cabinet or pole top installations
Designed for pole top installations
Integrated GPS
-
Optional
-
Operating temperature range
-40°C to +75°C
-40°C to +75°C
-40°C to +75°C
Power supply
PoE or Direct 12 to 24 VDC input
PoE or Direct 12 to 24 VDC input
Single Cable PoE
Special certifications
AeroMACS, WiGRID
AeroMACS, WiGRID, rail approval
AeroMACS, WiGRID
Industry mall
Click for more information
Click for more information
Click for more information
RUGGEDCOM selector
Order product
Order product
Order product

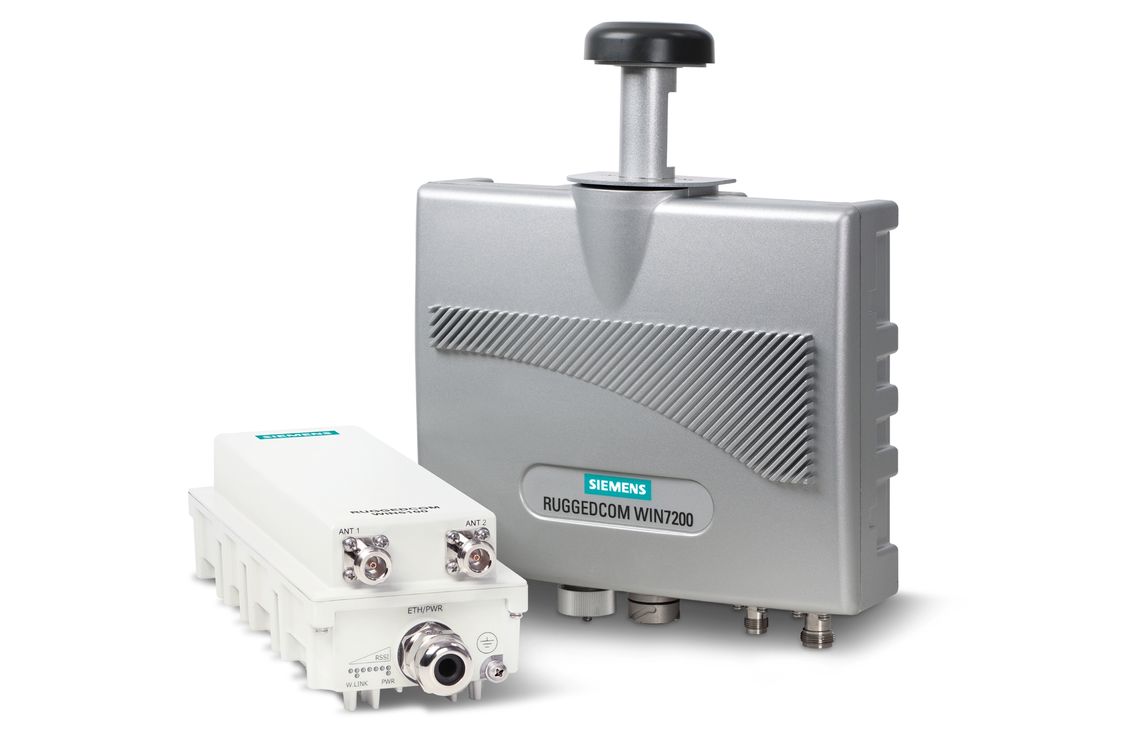

Product shot of RUGGEDCOM WIN base stations for private wireless critical infrastructure

For reliable long-range connectivity in harsh environments

Powered by OFDMA radio technology, RUGGEDCOM WIN7000 and WIN7200 base stations weather harsh environments and go the distance with non-line-of-sight (NLOS) operations.



They ensure robustness as well as high reliability, availability and efficiency by leveraging link adaption algorithms, modulation and coding to continuously adapt to prevailing link conditions.

RUGGEDCOM WIN7000 high power base station

This high power, broadband wireless base station is designed for long-range deployments within licensed frequency bands under harsh environments.



Compliant with standard IEEE 802.16e, the RUGGEDCOM WIN7000 delivers maximum coverage where regulations permit high-power operation. The single sector design accommodates as many sectors as required at a given site, while keeping in mind coverage, bandwidth, and subscriber-density considerations.

RUGGEDCOM WIN7200 standard power base station

This single sector, lightweight broadband wireless base station provides connectivity to fixed or mobile end points, and can be easily installed on poles, streetlamps, or walls.



The RUGGEDCOM WIN7200 supports unlicensed frequency bands in harsh environments and is IEEE 802.16e compliant. Connected via a single Power-over-Ethernet connection and easily provisioned, WIN7200 reduces operational cost and complexity.

Products at a glance


WIN7000
WIN7200
Description
High power base station
Small form factor outdoor base station with low power consumption
Support of worldwide WiMAX deployments
1.X, 2.X and 3.X GHz bands
2.5, 3.5, 4.9, 5.1 and 5.8 GHz bands, optimized for AeroMACS
Communication standard
IEEE 802.16e
IEEE 802.16e
Interfaces
Dual PoE (Power over Ethernet) or fiber optic interfaces
Single PoE interfaces
Maximum subscribers
128
64
Operating temperature range
-40°C to +75°C
-40°C to +75°C
Power output
2 x 36 dBm output power
2 x 27 dBm output power for 2.X GHz and 3.X GHz, 2 x 24 dBm output power for 4.9 GHz and 5.1 GHz, 2 x 21 dBm output power for 5.8 GHz
Special certifications
WiGRID
AeroMACS, WiGRID
Industry mall
Click for more information
Click for more information
RUGGEDCOM selector
Order product
Order product
Benefits

The perfect solution for private critical networks in harsh environments

Designed for and put to the test under the harshest environments, RUGGEDCOM products meet and exceed recognized industry standards for performance in mission-critical applications.
Thermometer icon for the proven reliability of RUGGEDCOM WIN base stations and subscriber units for private wireless broadband communication in harsh industrial environments

Proven reliability

When it comes to RUGGEDCOM products: Siemens conducts Highly Accelerated Life Testing (HALT) in the early stages of product development to detect any design or performance issues as well as Highly Accelerated Stress Screening (HASS) later to ensure that customers get orders free of manufacturing errors and random defects. RUGGEDCOM products are thus able to provide reliable and error-free operation in harsh industrial environments.

What makes our products rugged?
Icon for the high immunity of RUGGEDCOM WIN base stations and subscriber units for reliable private critical infrastructures

High immunity

The proliferation of IP networking technology in real-time, mission critical control applications requires a level of immunity to electromagnetic interference (EMI) beyond what is currently delivered by commercial grade networking products. Technology used in RUGGEDCOM products is able to withstand all EMI type tests required by IEC 61850-3 without any communications loss or delays. Products with this technology also qualify as IEEE 1613 class 2 error-free devices. This innovation – known as Zero Packet Loss™ technology – is designed to provide the same level of EMI immunity as protective relaying devices.

What is Zero Packet Loss Technology?
Computer and shield icon for the trusted security offered by RUGGEDCOM WIN base stations and subscriber units for private wide area networks (PWAN)

Trusted security

RUGGEDCOM products do not just offer immunity against electromagnetic interference, they also come with a variety of advanced cybersecurity features. These include multilevel user passwords, SSH/SSL (128/256-bit encryption), enable/disable ports, 802.1X port security, VLAN (802.1Q) to segregate and secure network traffic, RADIUS centralized password management, as well as SNMPv3 authentication and encryption.

How to ensure end-to-end network security
Further information

The knowledge and support you need, when you need it

Get a detailed overview of all Siemens has to offer – from RUGGEDCOM product information to support and services.

Brochures

Professional Services for Industrial Networks

Professional services for industrial networks

It’s easy to acquire a top-of-the-line industrial communication network when you’re backed by our first-class network components and strong network design expertise. Work directly with us and our certified Solution Partners to help develop a network solution tailored to your needs.

Learn more
Industrial networks education

Industrial networks education

Need in-house specialists? Participate in Siemens industrial networks training program and earn the subsequent certification aligned with international Industrial Ethernet standards.

Learn more

Warranty information

Gain an overview of the general terms and conditions of sale for RUGGEDCOM products.

Learn more
Cybersecurity Industry EN
A graphic that shows how Siemens’ industrial security concept protects plants against cyber threats.
Cybersecurity for Industry

Security information

In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial security concept. Siemens’ products and solutions only form one element of such a concept. For more information about industrial security, please visit.

Learn more

Contact

Rugged communications equipment for harsh environments

For more information about RUGGEDCOM, please contact our experts who will be pleased to assist you.
