Load Cell SIWAREX WL230 SB-S CA

The SIWAREX WL230 SB-S CA is a shear beam load cell made of nickel-plated steel. The rated loads 100kg and 250kg are bending beam load cells. With an adjustable foot the force transfer can be easily realized. This load cell type is suitable for rated loads from 100kg up to 10t. Beside that the load cell is legal-for-trade according to OIML R60. It is available in the accuracy classes C3, C4 and C5. Thanks to the galvanized coating with nickel and the protection degree of IP67 the SIWAREX WL230 SB-S CA can be used in harsh environments.

Industry Mall

Select and order

Benefits

  • Wide range of rated loads available

  • High  degree of protection

  • Legal-for-tr

  • High accuracy classes

Detail

Rated load
100kg, 250kg, 500kg, 1t, 2t, 3t, 5t, 10t
Accuracy class
C3, C4, C5
Degree of protection
IP 67
Sensor material (DIN)
Nickel-plated steel

Typical applications: for platform and hopper scales in harsh environments

Accessories

For our shear beam load cells we offer following installation accessories

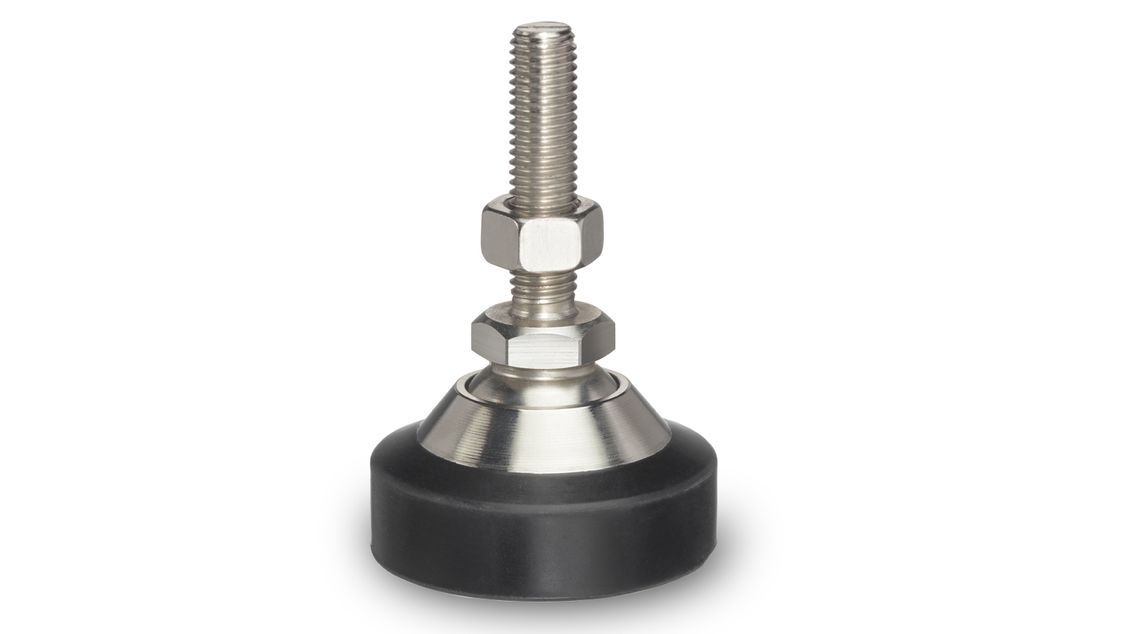

Load foot SIWAREX WL230 SB-S CA

The self-centering load foot for SIWAREX WL230 SB-S CA load cells can be used for the quick and easy assembly of platform weighing machines and hopper scales. Together with the load cell it forms a self-centering bearing unit. The load foot transmits the force directly into the load cell. The load foot is suitable for load cell rated load ranges from 100 kg up to 10 t (220.46 lb up to 9.84 tn. l.).

Select and order
