The technology library especially for the industry
The answer to industry-specific automation challenges: The SIMATIC PCS 7 Industry Library (IL)
There are similar challenges across all process industries that can be mastered with SIMATIC PCS 7. At the same time, every industry has individual requirements for automation and control technology. For example, the cost-effective monitoring and analysis of mechanical assets or the implementation of multi-control-room concepts. The SIMATIC PCS 7 Industry Library (IL) is an add-on product that extends the standard functionality of the Advanced Process Library with characteristic industry functions for industry-specific solutions in sectors such as chemicals, pharmaceuticals, water/wastewater or the food industry.
Industry-specific automation efficiency
The SIMATIC PCS 7 Industry Library can be used to create harmonious overall solutions for specific I&C tasks in numerous industrial sectors. It offers block symbols and faceplates in the look & feel of the SIMATIC PCS 7 Advanced Process Library. This allows the development of tailor-made industry applications with a uniform operating philosophy. The SIMATIC PCS 7 Industry Library speeds up engineering and simplifies process control.The SIMATIC PCS 7 Industry Library (IL) extends the standard functionality of the SIMATIC PCS 7 process control system concentrated in the SIMATIC PCS 7 Advanced Process Library (APL) with technological components and faceplates in APL design. It thus supports the implementation of diverse technological and industry-specific functions such as operation and monitoring via SIMATIC HMI Comfort Panels or the integration of SIMATIC S7 Package Units. The SIMATIC PCS 7 Industry Library is based on tried and tested industry libraries, e.g. from the fields of water/wastewater and building automation.

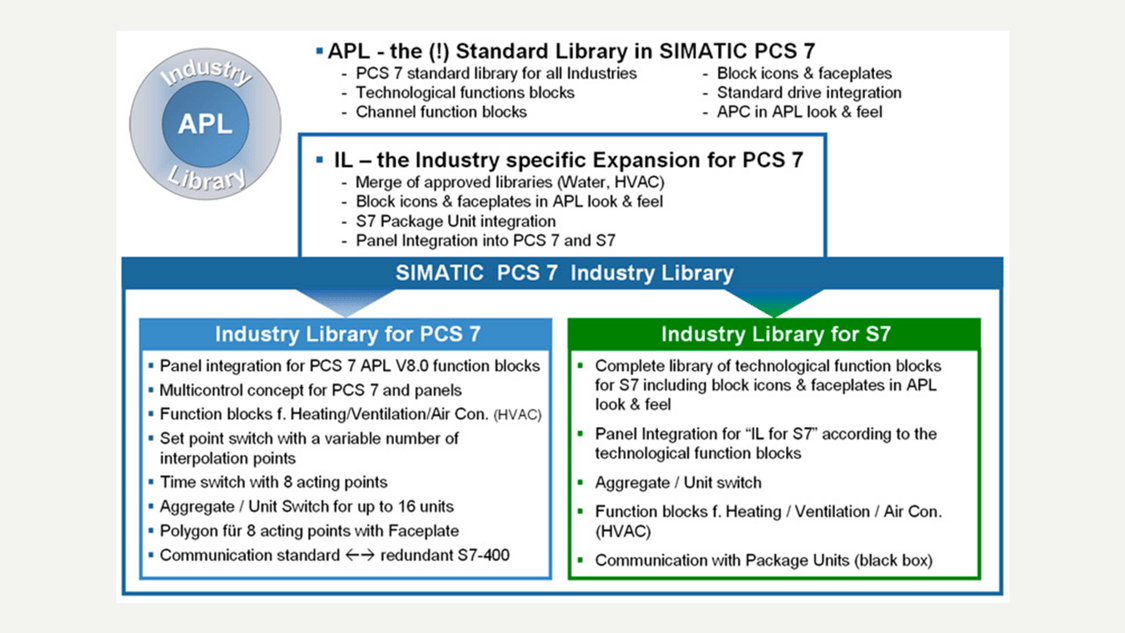

Communication modules enable standardized communication between PCS 7 controllers and S7-1500 with TIA portal. This ensures simple project planning and fast fault detection. The Industry Library also fully supports the use of SIMATIC HMI Comfort Panels. These on-site operating units ensure detailed display of process images, guarantee fast image build-up and offer various interfaces such as Ethernet or USB. It also supports operation and monitoring via touch panels and the integration of SIMATIC S7 Package Units in SIMATIC PCS 7 applications. The functionality of the SIMATIC PCS 7 Industry Library is distributed over two separately installable sublibraries:
- Industry Library for PCS 7
- Industry Library for S7
- Comfort Panel Integration for Standard PCS 7 APL

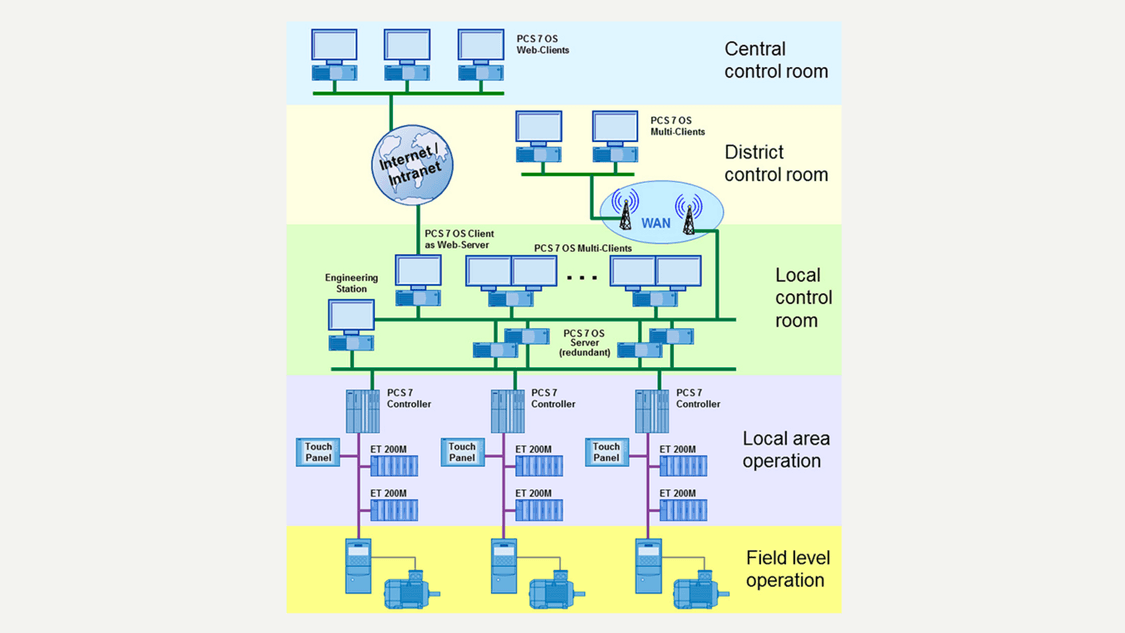

- Multi-control-room concept for PCS 7 and Panel
- System Integrated PCS 7 Load Management
- Standard connection to external APC applications
- Building blocks for heating / air conditioning / ventilation (HVAC)
- Technology components (e.g. setpoint switch, timer, aggregates switch, polygon)
- Communication between redundant and non-redundant controllers and to S7-300 and S7-1500
- Library of technological components for S7 incl. symbols & faceplates in APL look & feel

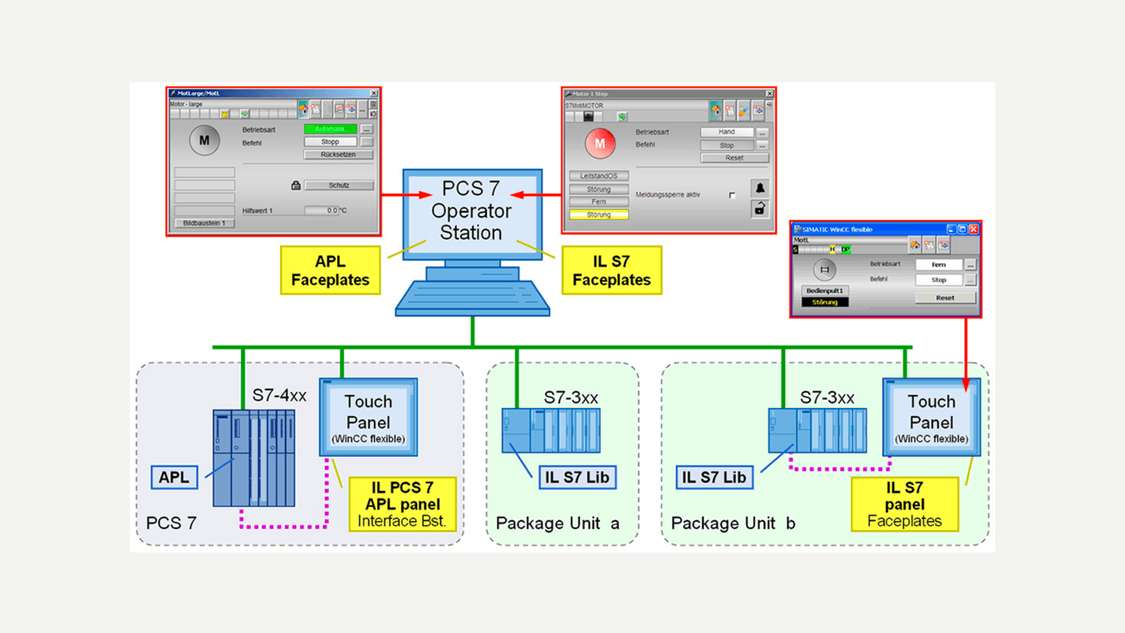

- Panel integration for "IL for S7" - suitable for the technological components
- Equipment assembly/ unit switch-over
- Building blocks for heating / air conditioning / ventilation (HVAC)
- Communication with Package Units (Black Box)
