Automatic Direct-On-Line Starters and Direct-On-Line Controllers

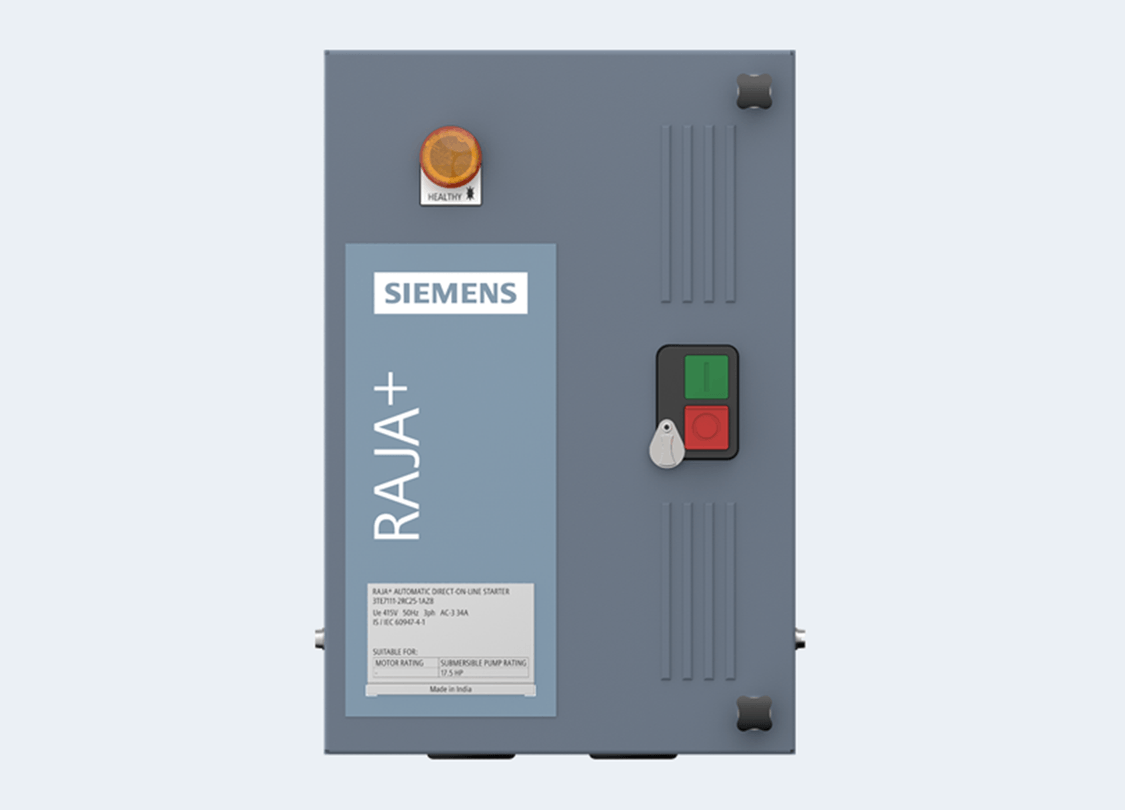

Automatic Direct-On-Line Starters
- Motor Rating at 415V 3ph 50Hz: 7.5– 17.5 HP | 5.5 – 13 kW
- Clearly defined ratings for submersible pump set & for 3-phase Motors
- Contactors | OLRs: 3TS contactors | 3US / 3UW overload Relay
- Coil Voltage: 200 - 400V | 260 - 457 V AC,50Hz
- IP42
- LED Indication: Indicating the incoming power supply availability & healthiness.
- Special Line Monitoring Relay for Agriculture Starters

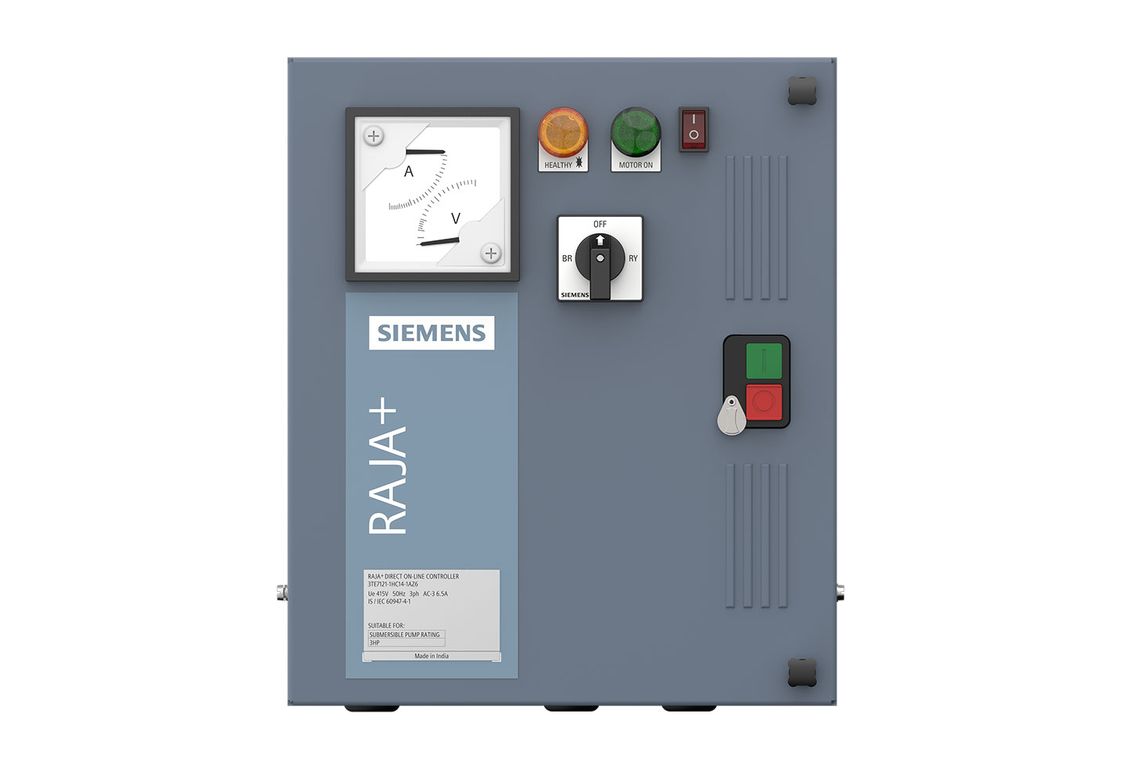

Direct-On-Line Controller
- Motor Rating at 415V 3ph 50Hz: 3 – 10 HP | 2.2 – 7.5 kW
- Clearly defined ratings for submersible pump set & for 3-phase Motors
- Contactors | OLRs: 3TS contactors | 3US overload Relay
- Coil Voltage: 200 - 400V | 260 - 457 V AC,50Hz
- IP43
- LED Indication: Amber LED Indicating the incoming power supply availability & healthiness. Green LED Motor on indication
- AV meter for current , voltage indication
- Special Line Monitoring Relay for Agriculture Starters

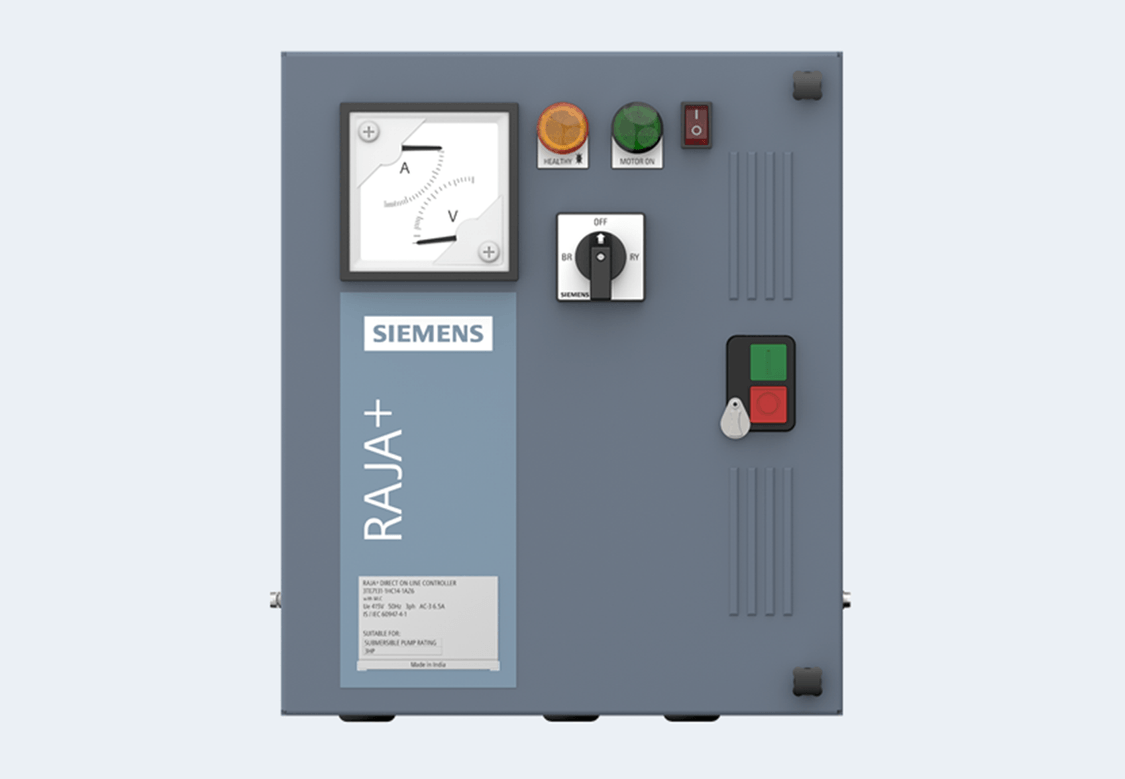

Direct-On-Line Controllers with WLC
- Motor Rating at 415V 3ph 50Hz: 3 – 10 HP | 2.2 – 7.5 kW
- Clearly defined ratings for submersible pump set & for 3-phase Motors
- Contactors | OLRs: 3TS contactors | 3US overload Relay
- Coil Voltage: 200 - 400V | 260 - 457 V AC,50Hz
- IP43
- LED Indication: Amber LED Indicating the incoming power supply availability & healthiness. Green LED Motor on indication
- AV meter for current , voltage indication
- With Integrated Water level controller
- Special Line Monitoring Relay for Agriculture Starters
