SIMATIC IOT2000

The intelligent interface for the Industrial Internet of Things

With SIMATIC IOT2000, you can easily connect your machines and plants to IT or the cloud and thereby make your production fit for Industrie 4.0 – for more efficient, transparent, and agile processes.

Information, sample applications, videos, and much more

Go directly to the IOT Forum

HM und SPS en Shoutbox

Hybrid Event, Apr 17 - Apr 21

Hannover Messe 2023

No time to wait, time to change.
Experience how industrial Digital Enterprises can be part of the solution for a smarter, more sustainable world.

Get your free ticket now to be part of the Siemens experience at Hannover Messe, April 17th to 21st.
Onsite (Hall 9, stand D53) and online.

Get your free ticket

Fields of application As an intelligent interface to your machine or plant, SIMATIC IOT2000 collects, analyzes, and transfers data to IT or the cloud. Numerous sample applications are available to help you get started on IoT solutions.

Data collection

Collection and compression of relevant production data

SIMATIC IOT2000 extracts data from a variety of automation components and devices, such as controllers, sensors, and USB devices.

The system supports numerous protocols, such as the S7 Protocol, OPC UA, Modbus TCP, TCP/IP; UDP, MQTT Subscriber or Modbus RTU

via various interfaces, including RS232/422/485, Serial USB interface, Ethernet or WiFi via mPCIe.

Easily connect analog and digital sensors

SIMATIC IOT2000 IO-shields are specially designed to directly connect non-time-critical sensor data to SIMATIC IOT2000. This enables you to easily connect your sensors to the SIMATIC IOT2000 gateway – with the support of sample applications.

SIMATIC IOT2000 IO shield 5x DI, 2x DO, 2x AI:

ARDUINO shield with GPIO (I2C and SPI free)
Digital inputs: 5 x DI (24V)
Digital outputs: 2 x DO
Analog inputs: 2 x AI (0 to 10 V or 0 to 20 mA can be selected)

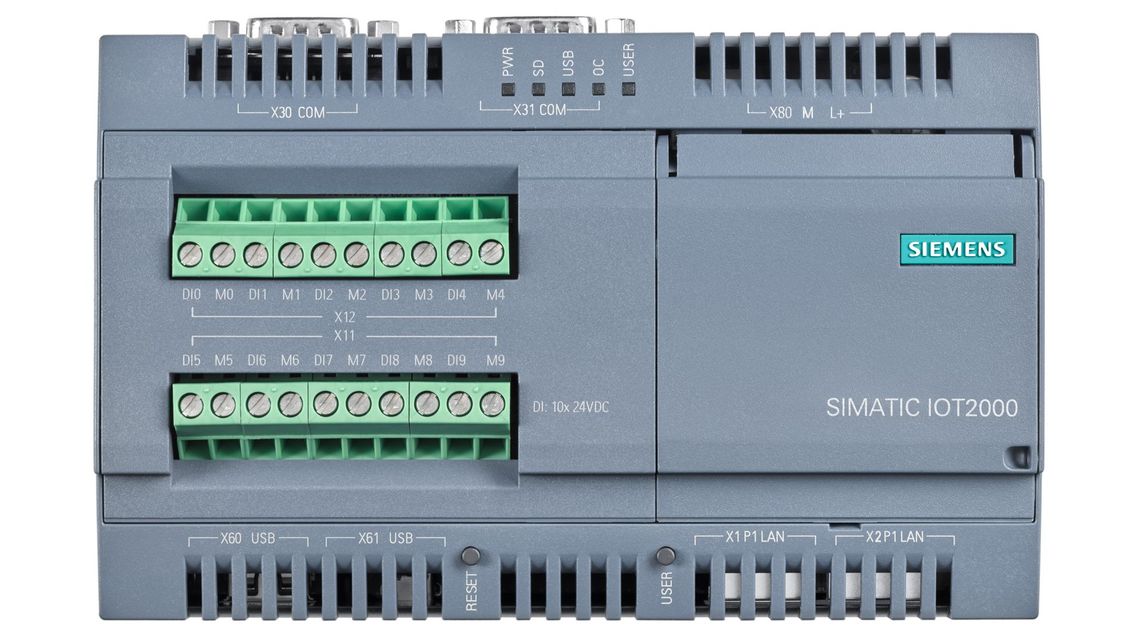

SIMATIC IOT2000 Input Module Sink/Source 10 x DI

ARDUINO shield with GPIO (I2C and SPI free)
Digital inputs: 10x DI sink /source (can be selected)

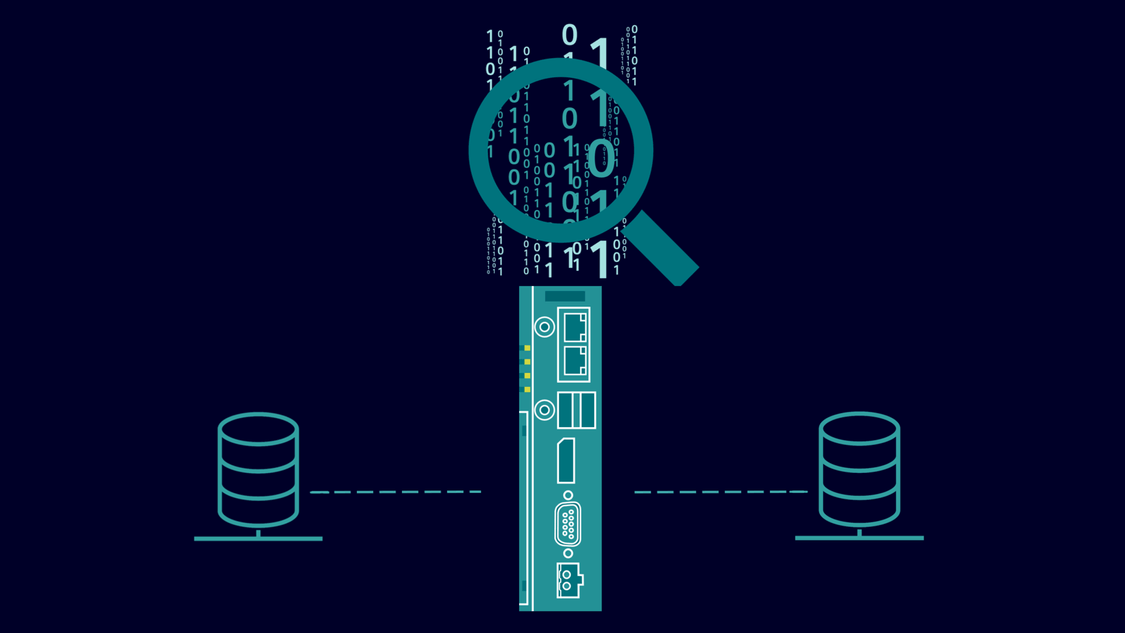

Data processing and visualization

Customized processing and visualization of production data

Data processing with SIMATIC IOT2000 can be programmed individually using high-level languages. This makes it possible to implement many methods for processing, visualizing, and storing data.

Data processing for higher-level systems or trend recognition

by arithmetic operations (including mean values) or more complex algorithms, e.g. based on machine learning.

Local data visualization for status messages or analyses

as IOT2000 webserver application – easy to configure, e.g. as node-red dashboard or on a machine-level HMI panel by means of data exchange via OPC UA, S7 connection.

Integrated buffering before the data is transferred or further processed

with MySQL databases or on connected USB hard disk.

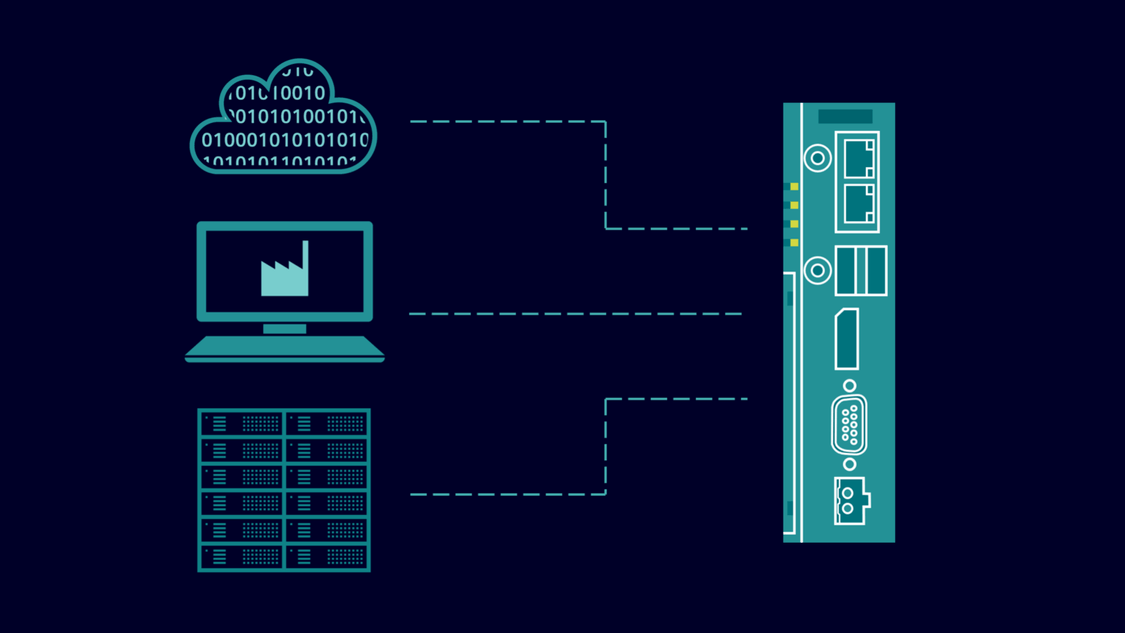

Data transfer

Secure and flexible data transfer to higher-level systems

SIMATIC IOT2000 converts data to the required protocol and securely transfers it to the higher-level IT system or the cloud. You can program the data transfer individually – SIMATIC IOT2000 supports the following solutions for data transfer and storage, among others:

Exchange of machine data for further analysis and for global access with cloud systems

via open protocols such as Mindsphere, AWS, Azure, IBM Bluemix and other Cloud Systems.

Data exchange with MES/ERP systems for applications, such as order control and purchase planning,

via open protocols such as MQTT & AMQP, OPC UA Server / Client, TCP / IP or SQL database accesses (write/read).

Data exchange with SCADA systems for production monitoring, execution, and visualization

via open protocols such as OPC UA Server / Client, TCP / IP or SQL database accesses (write/read).

SIMATIC IOT2000 community

Active support for getting started on the open SIMATIC IOT2000 platform

In our IOT2000 forum, you’ll find information on components and systems as well as numerous examples and applications that our users have developed for SIMATIC IOT2000. You can share knowledge with Siemens experts and with other users and benefit from extensive expertise on all aspects of Industrial IoT solutions using SIMATIC IOT2000 – from programming to implementation and optimization.

Take advantage of our users’ expertise and join the community

❯ Go to the IOT2000 success stories

Everything you need to know about SIMATIC IOT2000 in a brochure

Download PDF

The intelligent solution for the Industrial IoT

Open

SIMATIC IOT2000 supports numerous communication protocols and can be perfectly adapted to the specific application by means of programming in high-level languages.

Reliable and fit for industry

SIMATIC IOT2000 was developed specifically for use in industry. It’s an IoT gateway of proven SIMATIC quality: durable, reliable, and robust.

Retrofittable

SIMATIC IOT2000 gateways are easy to integrate into existing plants, including gradually or only for individual machines.

Applications From order reporting to condition-based maintenance: With SIMATIC IOT2000, you can program your customized IoT solution and implement innovative applications and services.

Example of optimized shop floor management

With SIMATIC IOT2000, you can record the current inventory of consumables and automatically notify the shop floor management system when the inventory drops to or falls below the minimum. In this way, you can reduce your plant’s downtimes.

Example of preventive maintenance

SIMATIC IOT2000 collects data, such as rotational speed and operating time, and analyzes it according to the specifications in order to detect the beginning of wear. This enables you to schedule maintenance activities based on the machine’s actual load and determine an appropriate maintenance window.

Product details SIMATIC IOT2040 is an intelligent gateway that standardizes communication between various data sources, then analyzes and forwards communications to the corresponding recipients – and is easy to implement.

Reliable and open platform for Industrial IoT applications

SIMATIC IOT2040 is ideally suited as a gateway between the cloud or the company IT level and production. The openness of the system enables customized solutions.

Numerous options for programming in high-level languages

Yocto Linux Support
Easily expanded with Arduino shields and miniPCIe cards
Compact industrial design and DIN rail mounting
Energy-saving, high-performance Intel Quark processor and numerous interfaces: Intel Quark x1020 (+Secure Boot), 1 GB RAM, 2 Ethernet ports, 2 RS232/485 ports, battery-backed real-time clock
Proven, extremely rugged SIMATIC quality

SIMATIC IOT2040 in the online catalog

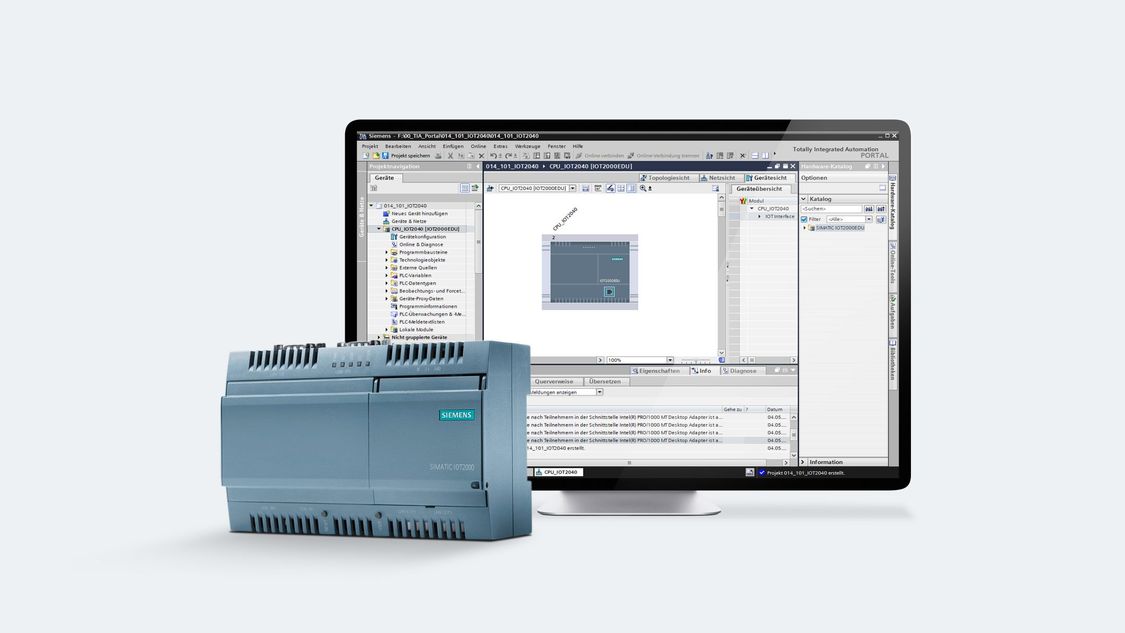

SIMATIC IOT for education

The open source platform for high-level language programming in education

With SIMATIC IOT2000, Siemens offers a solution for open source applications for education – with SIMATIC quality for 24/7 operation. You benefit from the open, expandable hardware, the Linux-based operating system Yocto V2.1, and the Arduino Uno R3-compatible interface.

Find out more about SIMATIC IOT for education

SIMATIC IOT2020 for education

IOT forum

Join the SIMATIC IOT2000 community

SIMATIC IOT2000 gives you lots of room for ideas. In our IOT forum, we supply you with updates, information, introductory videos, expert tips, and numerous applications that our users have implemented with SIMATIC IOT2000.
