SITOP PSU8600 – the unique power supply system with PROFINET

SITOP PSU8600 is the first power supply system with a complete integration in Totally Integrated Automation. This not only pays off in engineering in the TIA Portal or in manufacturer-independent communication systems, but also in operation. For example, voltage and current can be individually adjusted for each output, and the integrated overload protection enables each output to be monitored. Other modules from the system toolbox can be added to suit requirements with no wiring overhead, for example to buffer power failures. Comprehensive diagnostic and maintenance information is available via PROFINET. SITOP provides the best possible support for power management for plants or machines, from recording power data from individual outputs to switching outputs on and off via PROFIenergy. In this way, the SITOP PSU8600 is setting new standards in plant reliability and efficiency.

Configure your SITOP PSU8600 system via TIA selection tool

Configure & order

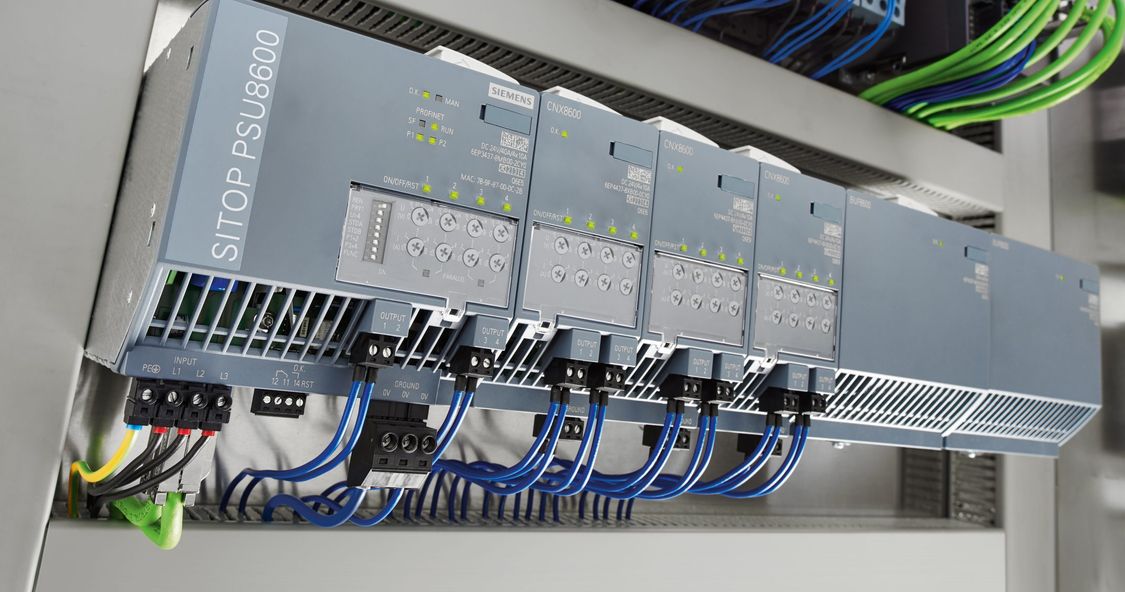

Portfolio – overview of all system components

SITOP PSU8600 base units

Great performance in a very small space

The high efficiency up to 94% of the basic devices ensures minimum heat loss, which makes very compact designs possible. Up to four outputs monitored for overloads also help save space for circuit-breaking devices. Integrated Ethernet/PROFINET communication opens up new opportunities for diagnostics and the range of applications for your power supply.

3-phase power supply, nominal output current 20 A or 40 A at 24 V DC
One or four outputs monitored for overload, individually adjustable from 4 V to 28 V
Integrated Ethernet/PROFINET interface with two ports
Easy configuration in the TIA Portal
Extensive diagnostic information and adjustment options with the system in operation
Extremely narrow installation width 80/125/100 mm

More information and ordering options in Siemens Industry Mall

SITOP CNX8600 expansion modules

More outputs for more flexibility

The expansion modules can be used to expand the base units with up to 32 additional, selectively monitored outputs. The connection takes place on top of the modules without any wiring by means of the System Clip Link, a connecting plug for system data and power supply.

Base unit capable of being combined with up to two buffer modules to suit requirements
Easy to connect using the System Clip Link, a connector for system data and power supply
Output voltage: 24 V DC (setting range 4 V to 28 V per output)
Max. four expansion modules per base unit le: 4 x 5 A, 4 x 10 A, 8 x 2,5 A, also in optional combination
Narrow installation width: 60 mm for 4 output expansion modules and 100 mm for 8 output expansion modules

More information and ordering options in Siemens Industry Mall

SITOP BUF8600 buffer modules

Bridging brief and longer power failures

Buffer modules with electrolytic capacitors, providing buffering for up to 600 ms at a load current of 40 A, can be used to protect against brief power dips on the line side (brownouts). The versions with double-layer capacitors (UltraCaps) buffer against longer outages up to 20 s at 40 A. Because the buffer time is longer for lower buffer currents, this enables industrial PCs to be shut down manually as required.

Base unit capable of being combined with up to two buffer modules to suit requirements
Easy to connect using the System Clip Link, a connector for system data and power supply
Installed widths: 60/125 mm

More information and ordering options in Siemens Industry Mall

UPS8600 uninterruptible power supply

Bridging longer power failures lasting from minutes to hours with full system power

An uninterruptible power supply with appropriate battery modules can be used to protect against longer power dips on the line side and thus to bridge power failures lasting from minutes to hours. These expansion modules make it possible to shut the plant down safely and selectively in the event of a power failure. For most power interruptions, the bridging time is sufficient to allow the plant to continue operating without disruption.

UPS8600 module for charge/discharge control with up to five BAT8600 battery modules of the same construction
Simple connection of UPS8600 via the System Clip Link, a connector for system data and power supply
Smart battery management for optimal battery service life
Battery modules BAT8600 with maintenance-free lead-acid or lithium iron phosphate batteries

More information and ordering options in Siemens Industry Mall

Highlights Complex facilities require high conditions on the efficiency, flexibility and reliability of their components. The innovative SITOP PSU8600 power supply system satisfies them all – thanks to ist unique functionality, diagnostic capability, full integration in TIA, open communication networks and modular expandibility.

Integration – with complete system integration

With its entire integration in Totally Integrated Automation (TIA), SITOP PSU8600 is the first power supply system to offer notably simple, fast and convenient engineering in the TIA Portal, as well as an extensive evaluation of operating and diagnostic data and energy management functions. Furthermore, the same functions can be realized with open communication either via OPC UA or with the SITOP Manager. SITOP PSU8600 with its Industrial Ethernet/PROFINET switch functionality, with two ports on the base units, can be perfectly incorporated into existing automation networks in both in-line and ring structures. The integrated Web server also allows power supply monitoring or diagnosis to be performed remotely.

Efficiency – from engineering through to operation

SITOP PSU8600 is the first power supply system that is completely embedded in the digital world of automation. On the one hand, complete integration into Totally Integrated Automation (TIA) not only permits especially easy, fast, and convenient engineeringTotally Integrated Automation (TIA). Not only does this facilitate especially easy, fast and convenient engineering in the TIA Portal, but also allows extensive evaluation of operating and diagnostics data as well as energy management functions. On the other hand, the same functions can be implemented for open communication with OPC UA. SITOP PSU8600 with its Industrial Ethernet/PROFINET switch functionality, with two ports on the base units, can be perfectly incorporated into existing automation networks in both in-line and ring structures. The integrated Web server also allows power supply monitoring or diagnosis to be performed remotely.

Reliability – thanks to selectivity and monitoring

SITOP PSU8600 offers the optimum basis to identify and eliminate faults at an early stage, initiate preventive maintenance and avoid plant downtimes. This includes monitoring all of the outputs – and selectively switching them off when a fault develops, for instance. As a consequence, a short circuit or an overload at an individual load does not mean that the complete plant or system shuts down. 50% extra power for short-term loads as well as the ability to buffer brief power failures up to 20 seconds at a full 40 A load are further advantages that the SITOP PSU8600 can offer. Additionally, buffer and battery operation are signaled for line-side voltage dips, and the time that the power actually failed – an ideal indicator to evaluate line quality.

More highlights of the power supply system

Strong performance within the smallest space

Space-saving power packages

SITOP PSU8600 offers a lot – in a highly compact design. This not only includes 50% extra power for brief overloads, but also integrated overload monitoring for every output. As a result, even the base units enable the use of additional circuit-breakers, and with installed widths of just 80-125 mm, they save a great deal of space in the control panel. The high efficiency rating up to 94% ensures minimum heat loss.

Expandability by modular system design

Flexible configuration

With its modular design, SITOP PSU8600 can be flexibly adapted to address the particular application. The System Clip Link is a connector for system data and power supply. This allows basic devices to be expanded using expansion modules, buffer modules, and uninterruptible power supplies without requiring any wiring. A maximum of six modules can be used in any sequence. Up to 20 outlets can now be selectively monitored by connecting up to four expansion modules. To protect against short-term voltage dips at the network end, up to two SITOP BUF8600 buffer modules with electrolytic capacitors for up to 600 ms at full load (40 A) can be added – and to protect against longer outages, up to two SITOP BUF8600 buffer modules with double-layer capacitors for up to 20 s at 40 A. For bridging power failures lasting from minutes to hours, up to two UPS8600 uninterruptible power supplies can be mounted side by side and each can be expanded with a maximum of five battery modules of the same construction. Battery modules using lithium iron phosphate (LiFePO4) technology ensure an especially long service life with an average mains power failure bridging time of 14 minutes at full load (960 W). Lead batteries (Pb) have a “normal” service life with an average buffering time of 10 minutes at full load (960 W).

For integration into manufacturer-independent networks, communication via the OPC UA server functionality can be selected. In this case as well, all program-controlled parametrization and diagnostics options are available.

Full integration in the TIA portal

User-friendly engineering

With SITOP PSU8600, a power supply can be completely integrated in open, networked automation applications and in the TIA Portal for the first time. Engineering in the TIA Portal is particularly easy, fast and convenient - e.g. Setting up the network connection via PROFINET as well as selecting and parameterizing the power supply, including switching on and off of individual outputs. Prefabricated function blocks for SIMATIC S7 user programs support the operation and diagnostic data analysis - and free WinCC faceplates the setup for operatingand monitoring. For the integration into manufacturer-independent networks, the communication can be selected via OPC UA or the SITOP Manager. All program-controlled parameterization and diagnostics options are also available via these paths.

All the important data at a glance:

Brochure SITOP PSU8600

References & applications From engineering to operation, the powerful, modular SITOP PSU8600 power supply system gives users many advantages for supplying DC power to machines.

Reference

Jinan Tobacco

China

Lighting up the future

Jinan Tobacco counts on smart SITOP PSU8600 integrated power supply system for maximum operational safety and efficiency.
The combination of the SITOP PSU8600 base unit and BUF8600 buffering modules provides reliable 24 V electricity for the SIMATIC S7-1500 control system.
Communication via PROFINET and TIA Portal integration ensure constant load monitoring and diagnosis of the power supply.

Reference | Siemens AG

Siemens plant in Amberg

Full transparency for manufacturing solutions

At the Siemens plant in Amberg, Siemens AG relies on the modular SITOP PSU8600 power supply system to supply electricity to its state-of-the-art manufacturing facilities.
It monitors all DC outputs for overload or short circuits, and supplies diagnostic and operational information via PROFINET.
For power management, SITOP PSU8600 provides the current and voltage values for all outputs, and switches off all consumers via PROFIenergy as required.

Watch video

Application | Dynamically adjustable switchable outputs

Floating ball – SITOP PSU8600 controls fans

The voltage from every output of the SITOP PSU8600 power supply system can be dynamically adjusted via PROFINET, for example to control the speed of the fans.
The outputs can be switched on and off individually, meaning that loads of up to 20 A can be switched directly without PLC output and without a relay.
The current and voltage of each output can be measured continuously and used for troubleshooting and energy management.

Watch video

Application | TIA Portal configuration

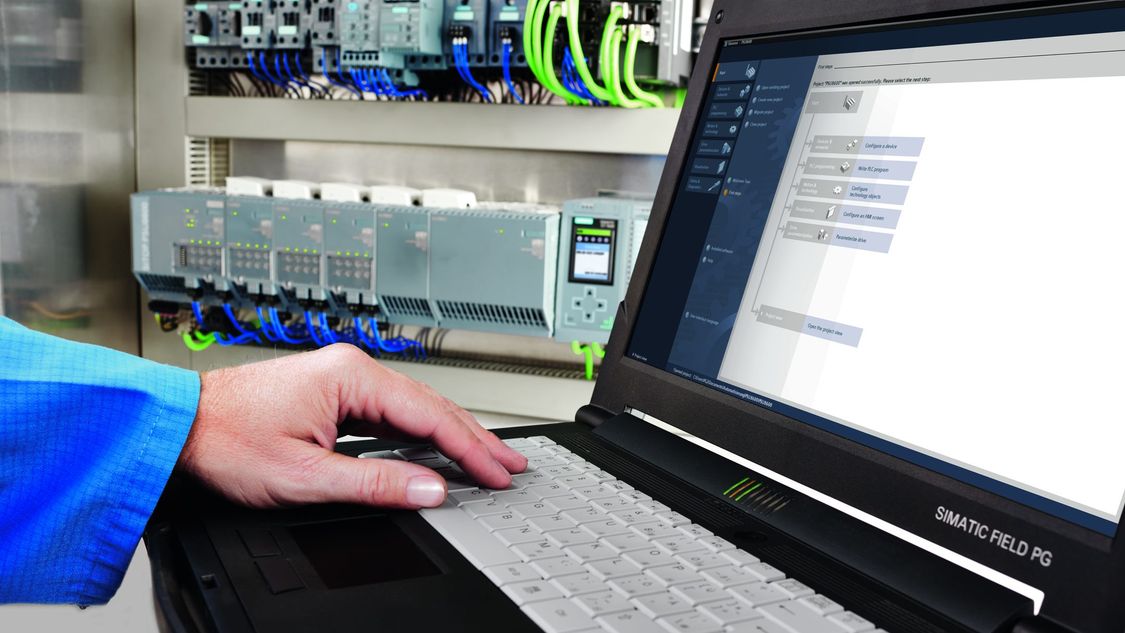

Configure SITOP PSU8600 in the TIA Portal

The SITOP PSU8600 power supply system can be fully integrated into the TIA Portal and a TIA Portal project, where it can be configured to communicate with the PLC.
Engineering in the TIA Portal is very convenient, and evaluation of operational and diagnostic data is supported by preassembled function modules for SIMATIC S7 user programs.
Free WinCC faceplates are available for operating and monitoring purposes.

Watch video

Application | Function blocks for SIMATIC S7

Functional modules for fast engineering

Siemens offers a range of software components to conveniently integrate the SITOP PSU8600 into the TIA environment.
For engineering via the TIA Portal, special functional modules for SIMATIC S7-300, S7-400, S7-1200 and S7-1500 facilitate integration into the STEP 7 user program.
The function modules are available free of charge.

Watch video

Downloads, Support, Services Download brochures and documentation with more details on the SITOP PSU8600 power supply system here. Support links take you to system-specific FAQs, manuals, product notes and technical data. Discover our range of practical services at the same time.

Downloads

SITOP catalog KT10.1 – edition 2019/2020

Support

+49 (0) 911 895-7222

support.automation@siemens.com

Services

The fastest way to the experts

Proposed solutions for your queries and direct access to our experts in Technical Support

Support request (SIOS)

Special investigation

Special investigations analyze the causes of problems that have been occurring more frequently with no explanation.

Special investigation

Logistical handling of returned goods from service processes

Central returns processing at the Service Logistics Center in Erlangen

Return delivery address: Siemens AG Retouren Center c/o Geis Industrie-Service GmbH, Tor 1-4, Kraftwerkstr. 25a, 91056 Erlangen, Germany

News & Events

Tools

With SITOP Manager, the SITOP power supplies with communication capability can be conveniently configured and diagnosed using a Windows PC - ideal when the plant is not configured with SIMATIC software.

Know-how

SITOP knowledge pool

Benefit from our manufacturing expertise: In the SITOP knowledge pool, we offer you a growing number of tips, tutorials, and information on all aspects of SITOP power supplies.

Products

The new UPS8600 module extends the SITOP PSU8600 to an uninterruptible power supply. Using energy storage in lead or lithium technology, it buffers up to hours.

Products

The new CNX6800 8 x 2.5 A module enables the SITOP PSU8600 power supply system to be expanded to as many as 36 outputs. The outputs can be set to between 4 and 28 V with trip currents of between 0.5 and 2.5 A.

Products

SITOP PSU8600 and SITOP UPS1600 are also available with a platform-independent OPC UA interface, as an alternative to PROFINET, for seamless communication with third-party applications.

Specialist articles

DC motors and actuators can be used with high energy efficiency and flexibility with SITOP PSU8600. The system opens up potential for savings, in the area of PROFINET communications or for recording energy data.

Specialist articles

More efficiency, easier procurement, construction and configuration: SITOP PSU8600 meets the stringent demands made by plant and machine construction in the manufacturing and process industry for a reliable DC power supply.

Tools

The SITOP PSU8600 power supply system (base units and expansion/buffer modules) can be selected quickly and easily using either the SITOP Selection Tool or the TIA Selection Tool.
