SITOP in special designs and applications

Product group image SITOP power supplies in special designs and applications

Equipped for special functions and conditions

Whether restricted installation conditions, harsh ambient conditions, or special input or output voltages are concerned: The power supply units in special designs and applications ensure a reliable and efficient supply of power, even when subject to extraordinary demands. Thanks to their compact design they can be integrated perfectly into existing installations.

Select your special design in the TIA Selection Tool:

Configure & order

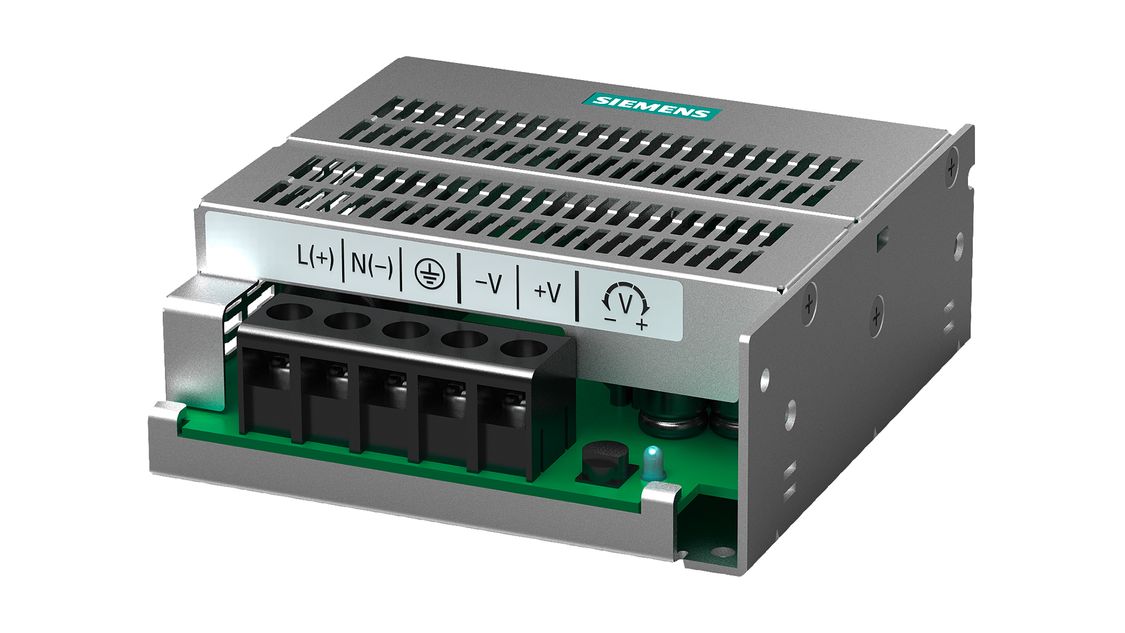

Product image SITOP power supply unit for wall mounting

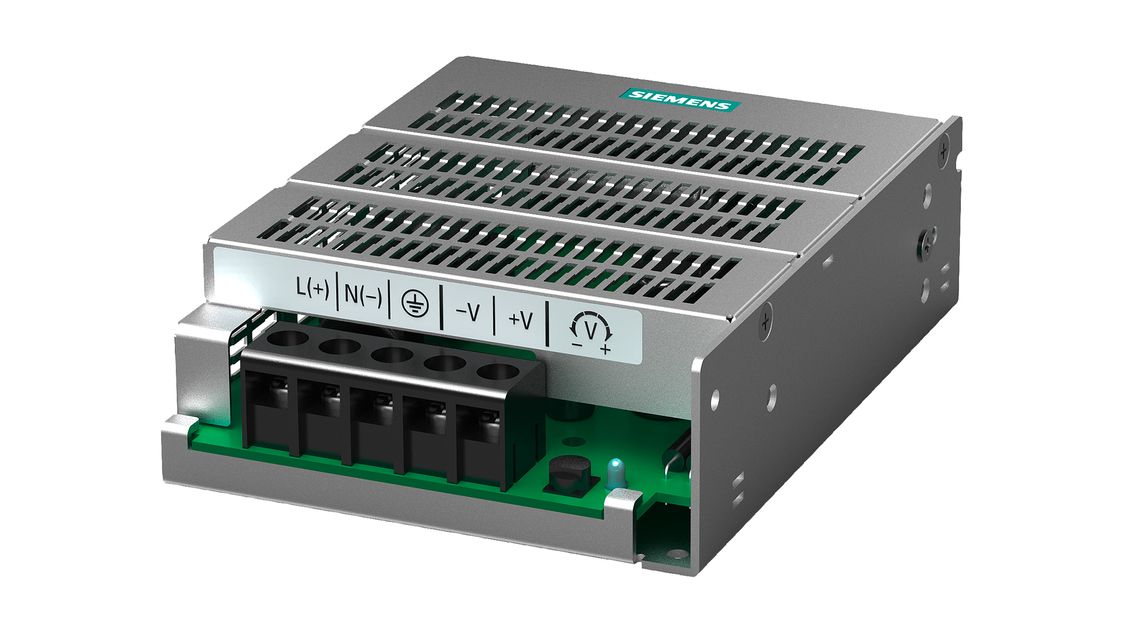

Low-cost SITOP power supplies for wall mounting

SITOP PSU100D offers attractively priced single-phase standard power supply units for direct wall mounting using screws. The flat and rugged aluminum enclosure with IP20 degree of protection can be installed in various orientations – Ideal for installation locations with limited space or for mounting in control cabinets and enclosures without a DIN rail. Typical applications are apparatus, automated equipment and automation solutions.

Product image SITOP power supply unit with high degree of protection

Rugged SITOP power supplies with IP67

The 1- and 3-phase SITOP power supplies for wall mounting, with their rugged design and IP 67 degree of protection are ideal for distributed applications outside the control cabinet.

Product image SITOP power supply unit for battery charging

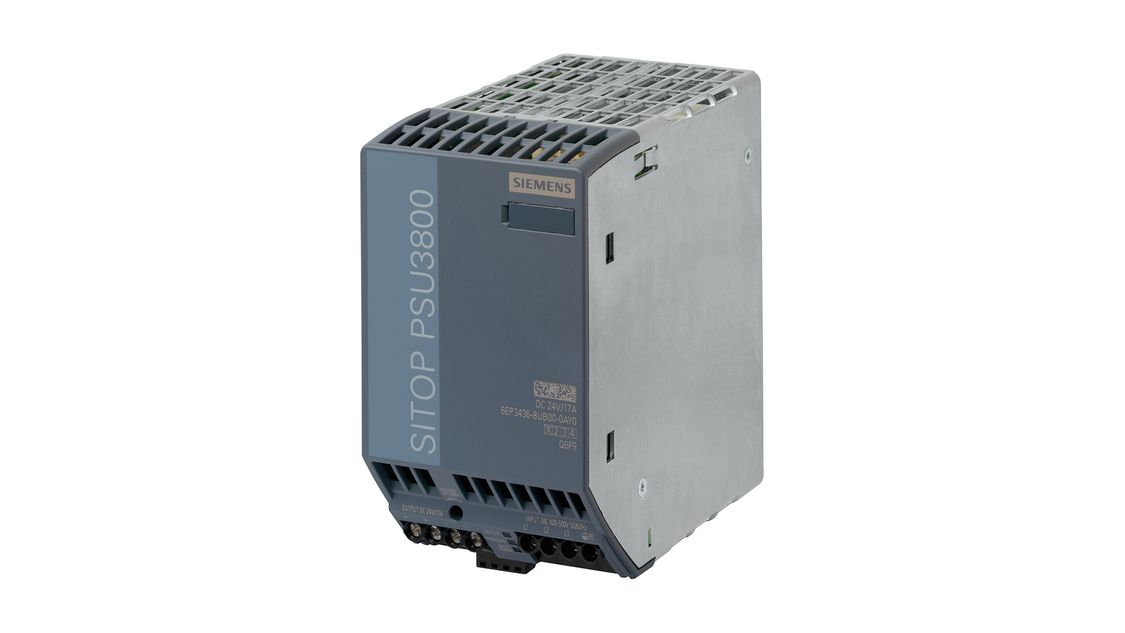

SITOP power supplies optimized for battery charging

SITOP PSU3800 power supplies are ideal for battery charging, thanks to their constant-current characteristic. For other applications the output characteristic can also be switched to latching shutdown. The 3-phase, wide-range input enables them to be used worldwide. The slim design requires little space on the DIN rail. Installation gaps are not required. The high degree of efficiency keeps the heat dissipation and energy consumption to a minimum. An LED and an isolated signaling contact indicate the status of the output voltage.

Product image SITOP power supply unit for medical applications

SITOP PSU2600 for use in medical engineering

The 1-phase and 3-phase stabilized SITOP PSU2600 power supplies are specially designed for use in medical engineering.

Product image SITOP power supply unit with alternative output voltages

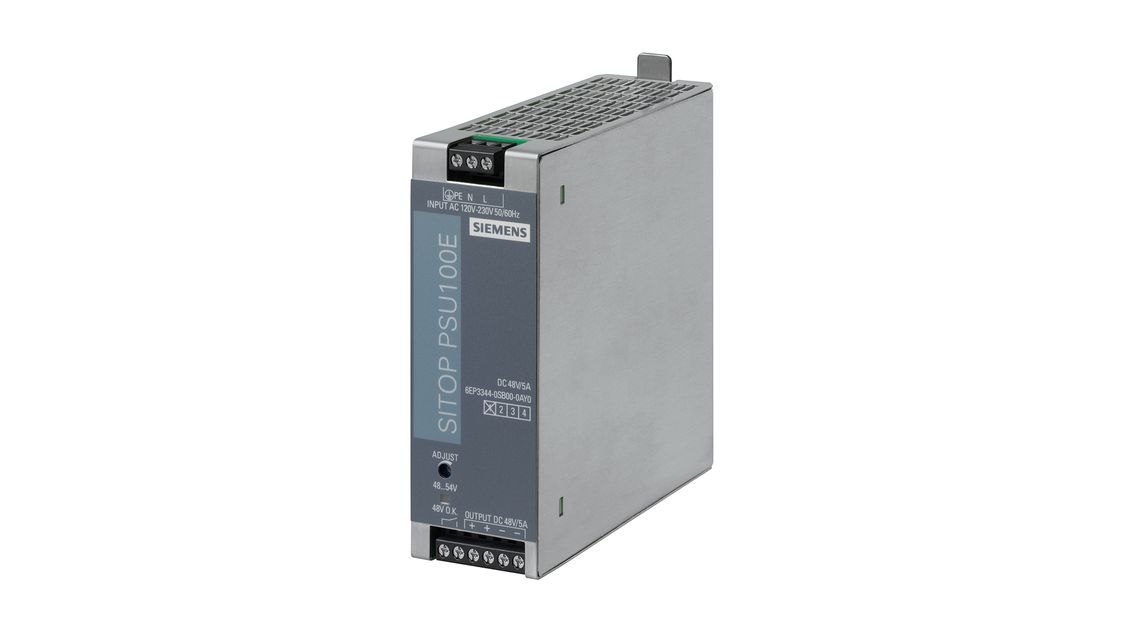

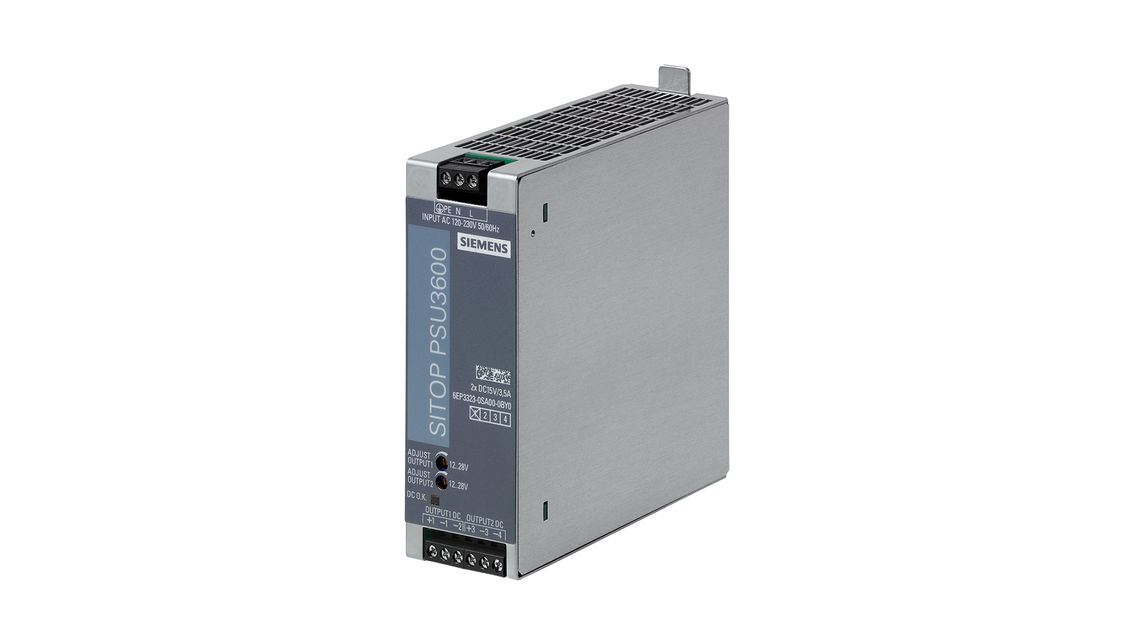

Not just 24 V – SITOP power supplies with alternative output voltages

SITOP provides a reliable supply of precisely stabilized DC voltage not just to 24 V loads, but also to those with "alternative" supply voltages.

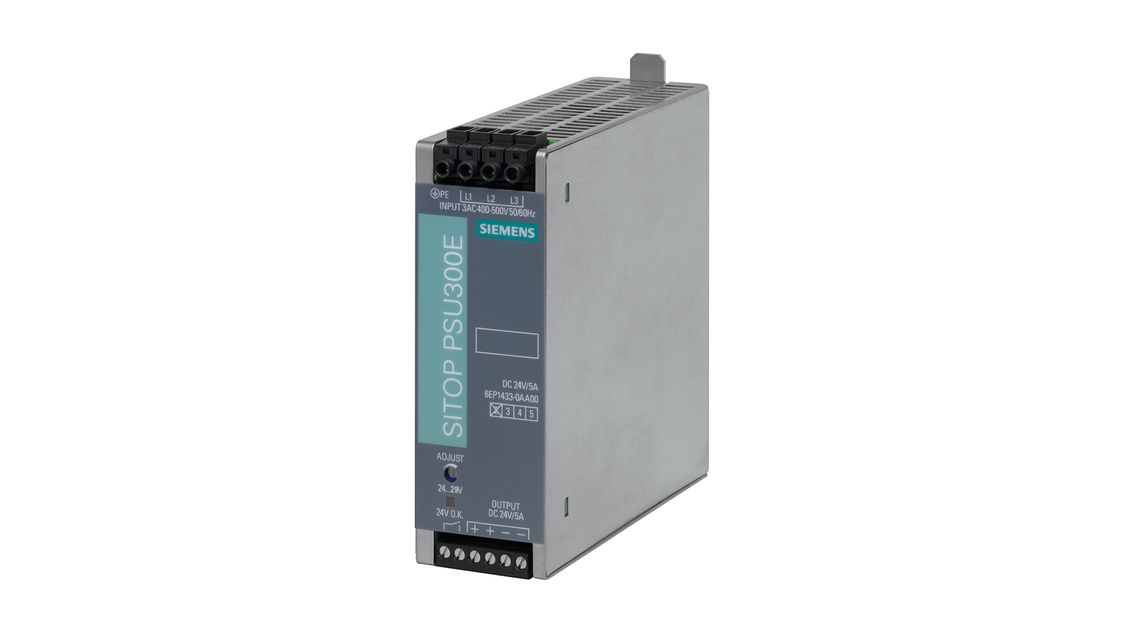

Product image SITOP power supply unit for special uses

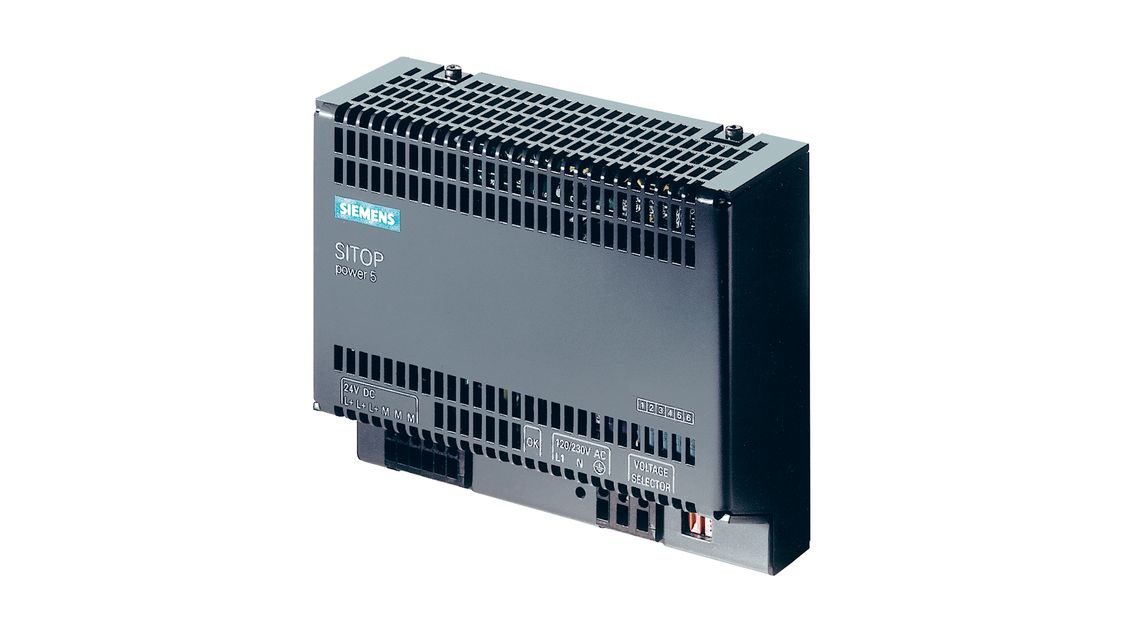

SITOP power supplies for special uses

With their particular design and metal enclosures, the 1-phase and 3-phase power supplies are ideally suited to special requirements.

Highlights Even if you require something special, the right SITOP power supply is available. The wide variety of special designs and switched-mode power supplies optimized for special requirements includes power supplies for many use cases – whether for restricted installation conditions, complex areas of application, or special installation types and functionalities.

Well-equipped for all eventualities ...

... with a wide range of power supplies in special designs and for special applications

SITOP power supplies also meet unusual requirements. Whether for mounting directly on the wall, with a high degree of protection for distributed applications outside the control cabinet, optimized for battery charging, or for use in medical technology – the product line of special designs and applications offers a large number of suitable power supply units. This also includes power supplies that provide a reliable supply of precisely stabilized DC voltage not just to 24 V loads, but also to loads with an "alternative" supply voltage.

Discover more:

Special designs and applications

Customized power supplies

Our well-proven standard power supplies cannot, of course, satisfy the requirements of every application. We make it possible for you to optimize your system to suit application-specific requirements. You benefit from the expertise of large-scale production and gain maximum development security and quality.

Our customer-specific solutions are used today in many sectors of mechanical engineering, in automation technology, vehicle electronics, equipment manufacturing and in industrial instrumentation technology.

Our offer is in principle open to every application case. If we have awakened your interest or if you would like to receive further details, please contact your local Siemens representative.
