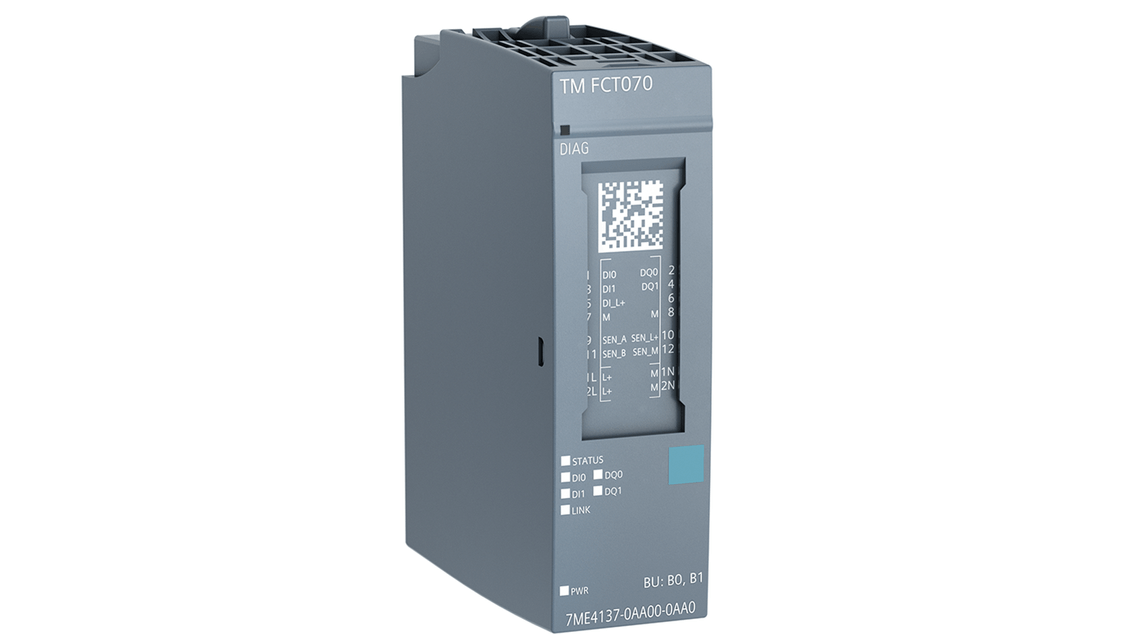

SITRANS FCT070

The SITRANS FCT070 technology module is a Coriolis flowmeter technology module for the distributed SIMATIC ET 200SP for direct integration of flowmeters into the SIEMENS TIA Portal and SIMATIC PCS 7.

Let our experts advise you

Register for a consultation

The SITRANS FCT070 can be combined with the following sensors of the Coriolis series.

SITRANS FCS300:  Innovative design and stable performance

SITRANS FCS400:  For OEM and skids

SITRANS FCS MASS 2100:  For low flow applications

Benefits

  • Fast setup and combination with additional SIMATIC ET200SP modules
  • Simple module selection and integration via Siemens TIA Selector
  • Direct integration with drivers and user interfaces for the SIMATIC TIA Portal and SIMATIC PCS 7
  • Real-time exchange between controller and flow meter
  • For universal use with all Siemens Coriolis flowmeters via digital sensor link
SITRANS FCT070 order instructions

Download interactive PDF

Detail

Technology Modul
For SIMATIC ET 200SP Profinet
Base unit ET 200SP
BU 20 type B1
Supported control

SIMATIC PCS7 V9.0 SP2 or higher
TIA Portal V16 or higher

SIMATIC STEP 7 V5.6 SP3 or higher
Outputs
2 individual programmable outputs
Inputs
2 individual programmable inputs
Communication
Profinet via SIMATIC ET 200SP
Protection class
IP 20
Environmental temperature
-13° F…122 °F Vertical (140°F)
Approvals (standard version)

CE

cULus
EAC

Tick

KCC

ROHS
Approvals (Ex version)

ATEX II 3 G Ex ec IIC T.. Gc

IECEx Ex ec IIC T4
FM Class I, DIV 2, Group A.B.C.D

With barrier SITRANS I300 also for ATEX zone 1
Power
24V, Class 2, max. 0.5 A

Application examples: Machine builder, water supply, oil and gas
