Electrically-powered into the future – with the VersiCharge IEC wallbox

Growth in new registrations for electric cars in Europe in 2017:

0 percent

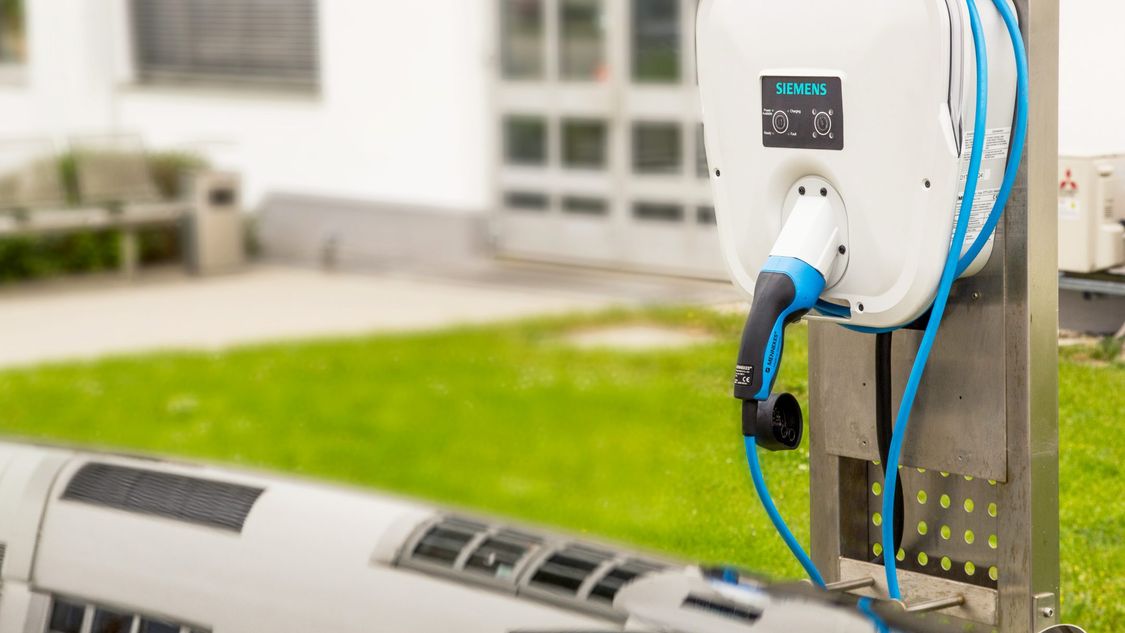

VersiCharge IEC, the new wallbox from Siemens charges electric vehicles safely, quickly and efficiently.

Find the right wallbox for your electric vehicle in our Industry Mall.

Siemens Industry Mall

Highlights Today’s electromobility is fast, safe and efficient. With the VersiCharge, the new charging unit for electric vehicles according to IEC standard, Siemens sets new standards in the area of electric vehicle charging. This applies to use in both the private and the semi-public environment, including garages as well as hotel or company parking lots. What’s special about the VersiCharge IEC is that the start of the charging process can be preset in two-hour intervals, from two to eight hours, allowing you to take advantage of economical electricity rates outside of peak periods.

Flexible charging

When you connect your electric vehicle to the charging unit, the charging process begins automatically. Or you can easily and conveniently delay charging by up to 8 hours in two-hour increments (2/4/6/8 hours) with the push of a button. This allows you to use your photovoltaic installation or take advantage of off-peak tariffs.

Ergonomic design

Whether in parking garages, parking lots, or outdoor carports, the functional design of the VersiCharge IEC with protection class IP56 withstands all conditions. As an added bonus, easy cable handling allows you to make optimal use of tight spaces.

Easy installation

The system-tested VersiCharge IEC wallbox can be quickly and easily connected to a 230/400 V grid. You can set the maximum charge current in accordance with on-site conditions. An upstream RCCB and MCB are required for higher-level personal and line protection in home installations. Alternatively, you can use the version that already has 6 mA DC detection and thus does not require an RCCB type B.

How you benefit from the VersiCharge IEC

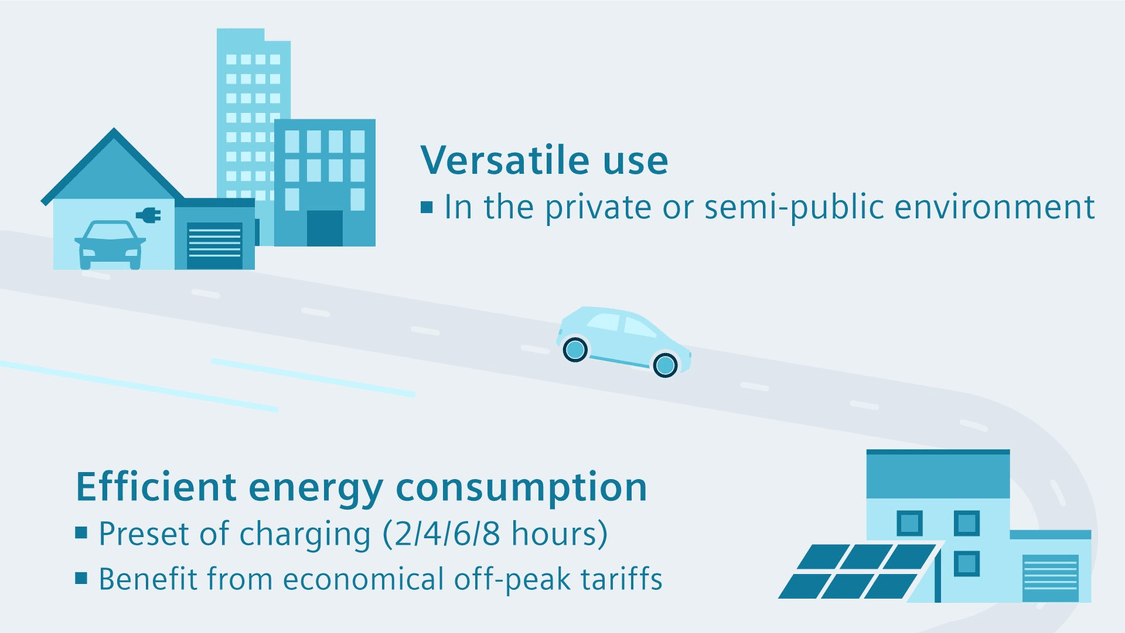

Smart energy consumption

Strategic energy usage saves money and optimizes consumption – which is exactly what the VersiCharge IEC enables you to do: Because you can flexibly preset the start of charging in two-hour increments, you can take advantage of less expensive electricity outside of peak periods – whether from your own solar or PV installation or the municipal grid, both of which are possible.

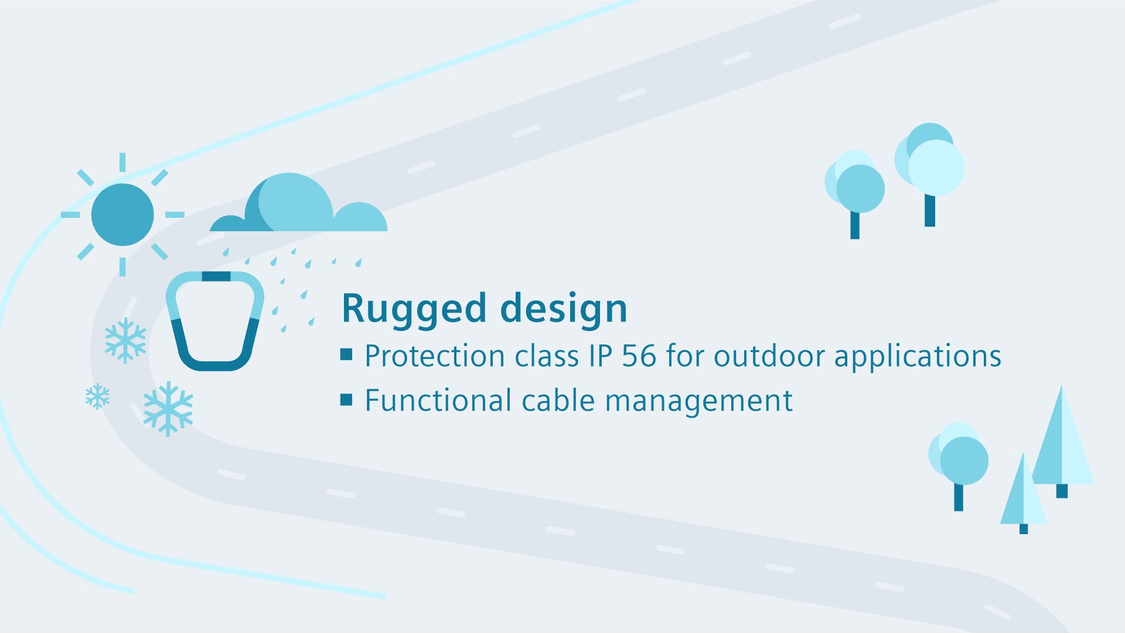

Rugged design

Whether rain, dust, heat or snow – you can rely on the VersiCharge IEC even under extreme conditions. The key is in the dirt-resistant industrial design. Outdoor applications are no problem, thanks to the protection class IP56.

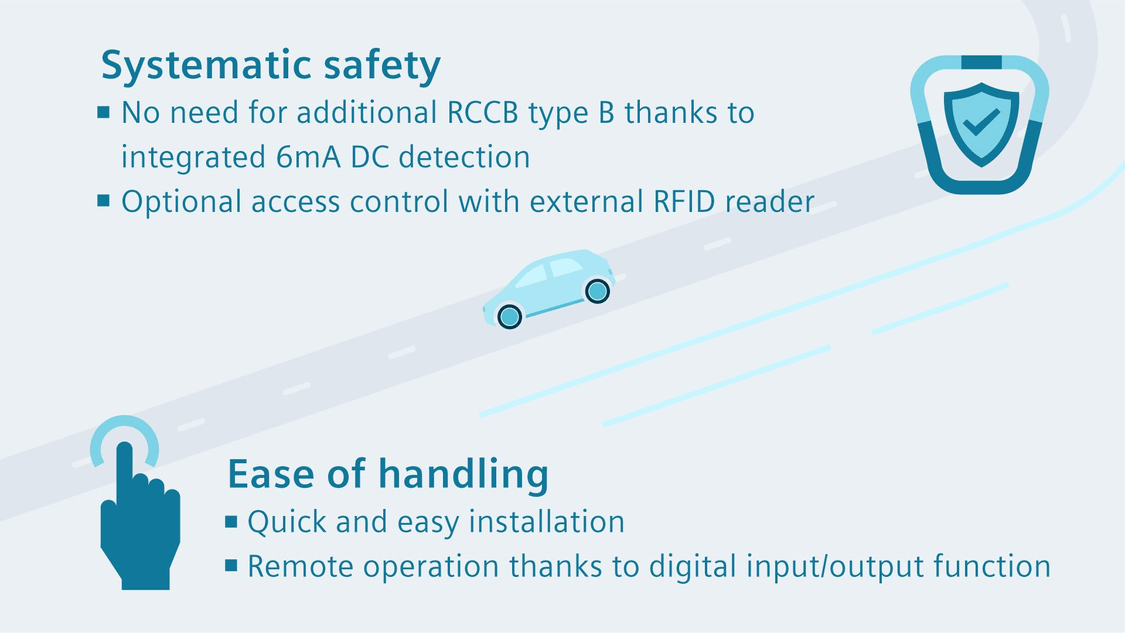

Systematic safety

Safety is the top priority – and is already integrated into our charging unit. Thanks to optionally integrated 6 mA DC detection, there is no need for an additional RCCB type B.

Ease of handling

The VersiCharge IEC is compact with maximum functionality – not just in terms of design but also with regard to handling. Take advantage of functional cable management and simple wall mounting – even in limited spaces. The charging unit has optional access control on top: Thanks to an external RFID reader, you can also operate your charging station remotely if necessary.

Download infographic (PDF)

Technical data The new VersiCharge IEC wallbox features compact dimensions, flexible applications and easy installation. See for yourself – here you will find all the features and technical data at a glance.

Attribute	5TT32011VR00	5TT32011VR01	5TT32011VR02	5TT32011VR03
Input voltage	230V AC		400V AC	230 V AC
Max. rated current	20A		32A
Frequency	50Hz / 60 Hz
Output power	4.6kW		22kW	7.2kW
Standby power	Less than 9 Watts
Cord length	4m	7m
Dimensions in cm	36.83 W x 40.64 H x 16.51 D
Enclosure	IP56
Connectivity	Digital input / digital output; connection to PV and home control
Connector	Type 2

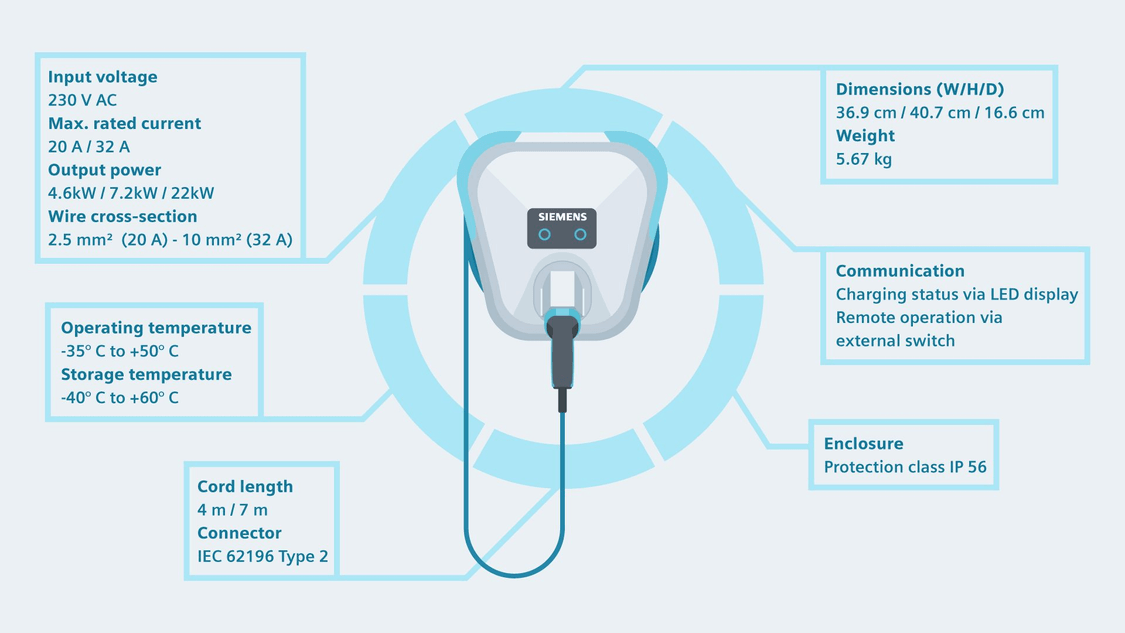

All the features at a glance

All the information and ordering data at a glance

Download compact information

Download and Support Here you will find important information, documents, and addresses relating to the charging of electric vehicles.

Downloads

Support

+499118957222

References Installed in garages, shopping centers and parking lots, the VersiCharge IEC charging unit is already supporting electromobility in many regions, and promoting smart cities around the world. The goal is to protect the environment using state-of-the-art technology and improve the quality of life of citizens and communities.

Moravian-Silesian Region

Jablunkov, CZ

New e-charging station installed in the Moravian-Silesian region

Total of 10 charging stations in operation in the Moravian-Silesian Region since January 2018
Electric car battery charged to 100% capacity in 1 to 4.5 hours with VersiCharge IEC
Regularly scheduled reports and analyses of times of use, kW consumption, user type, etc.

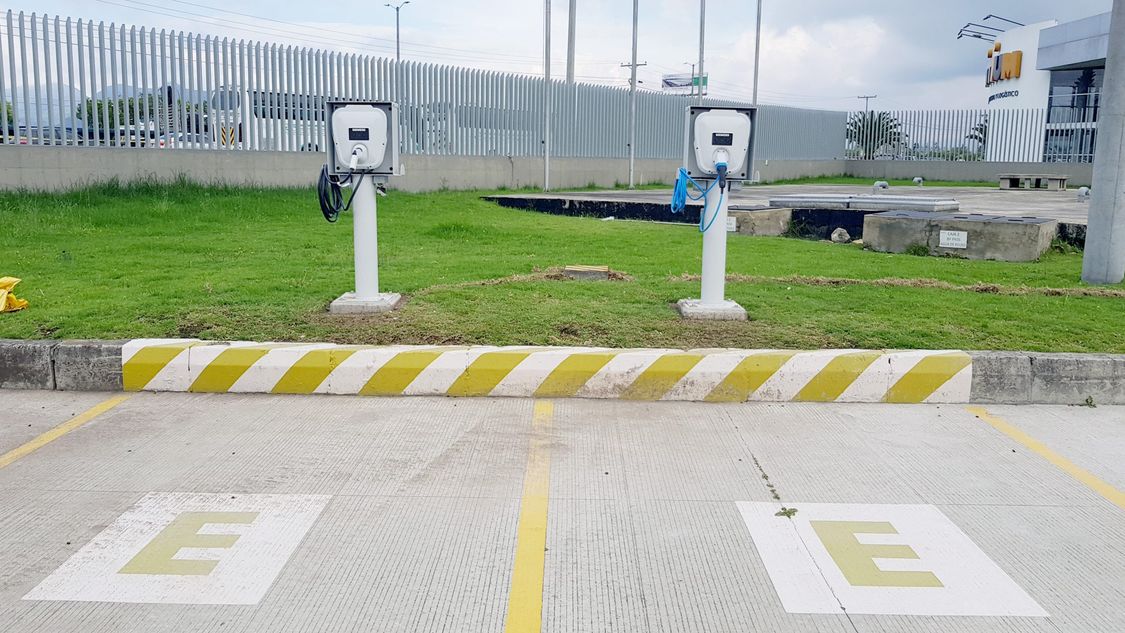

Siemens S.A. Colombia

Tenjo, Colombia

With the eCar to work

Two eCar charging stations were implemented at Siemens
Energy efficiency was increased by Siemens employees using electric vehicles to get to work
Employees can charge their electric vehicle free of charge

Project with Tarsheed

Doha, Qatar

Qatar's first charging network for electric cars

First ever eCar charging stations in Qatar
Network of 5 charging stations throughout the city of Doha installed
Important step in the development of efficient and sustainable city infrastructure in the country

Order now

The future runs on electricity

Climate change, globalization, growing cities – the challenges of our time require answers for both today and tomorrow. Siemens offers smart solutions for improving the efficiency of buildings, transportation and energy systems. This includes electromobility solutions such as the VersiCharge IEC charging unit that support urban transport and the municipal infrastructure. You, too, can take a step into a future where electromobility is playing an ever greater role.
