Valves and actuators

Intelligent Valves are self-optimizing dynamic valves with cloud connection used in heating groups and air handling units. They balance and control flow, measure energy, and provide data for energy monitoring and system optimization.

Intelligent Valves offer benefits:

• Facilitate work
• Save time
• Ensure comfort in buildings
• Increase energy efficiency

We have a responsibility to create buildings that are better for people and that are sustainable for the environment – and that means transforming buildings into environments that care.

PICVs (pressure-independent combi valves) prevent oversupply and reciprocal hydronic interference, reducing energy consumption and operational costs. Additionally, PICV enabled precise temperature control improves the comfort and wellbeing of building users. Siemens recommends PICVs especially for radiators, chilled ceilings, VAV and fan coil units.

Acvatix product benefits:

• Simple planning and implementation of energy-efficient HVAC systems
• Flexible planning thanks to continuous volumetric flow ranges and large differential pressure ranges
• Simplified dimensioning, presetting, hydronic balancing, and commissioning
• Easier system extension with independent pressure control

Globe valves are used for flow shutoff, flow regulation or fluids mixing in the majority of HVAC applications. Siemens recommends globe valves especially for floor heating, zone control, heating groups, district heating and boiler plant applications.

Acvatix globe valves provide you with:

• Reliability rates and long service life, even in extreme temperature and high pressure environments
• Fast installation
• Visible operating and position displays for easy troubleshooting during servicing
• Simplified system modernization with backwards compatibility
• Siemens HVAC Lab product quality certification

Designed for efficiency, with precise control and leak-free operations, control ball valves are used for continuous and precise control in closed circuits. Siemens recommends control ball valves especially for air handling units and the 6-port control ball valves for heated and chilled ceilings.

Acvatix benefits:

• Simple handling for quick, error-free installation
• Highly efficient, with low torque and friction, and fine kvs graduation
• Broad range of actuators and customer-specific adaptations
• Flexible connection with internal and external thread screw fittings for the 6-port control ball valves

Magnetic valves are valves with a pre-installed magnetic actuator. They are used for the shutoff and mixing of fluids (water, water with antifreeze, heat transfer fluid etc.) and steam in nearly all HVAC applications. Magnetic valves are also ideal for applications with even the most stringent requirements, including industry-related areas such as engine test benches. Siemens recommends magnetic valves especially for domestic hot water and chiller plants.

Your benefits with Acvatix:

• Energy efficiency
• Rapid, magnetic valve control in under two seconds
• Precise drop-by-drop control, for high efficiency and stable control conditions

Butterfly valves – ball valves, slipper valves, butterfly valves – are primarily used in energy generation and distribution. Typical applications are if an additional boiler needs to be connected, or for the switching over of storage tank charging. Siemens recommends butterfly valves especially for cooling towers.

Acvatix benefits:

• Fast and simple valve-actuator coupling
• Large dimensions for the highest volumetric flows
• Visibility of operating status and position displays for easy service troubleshooting

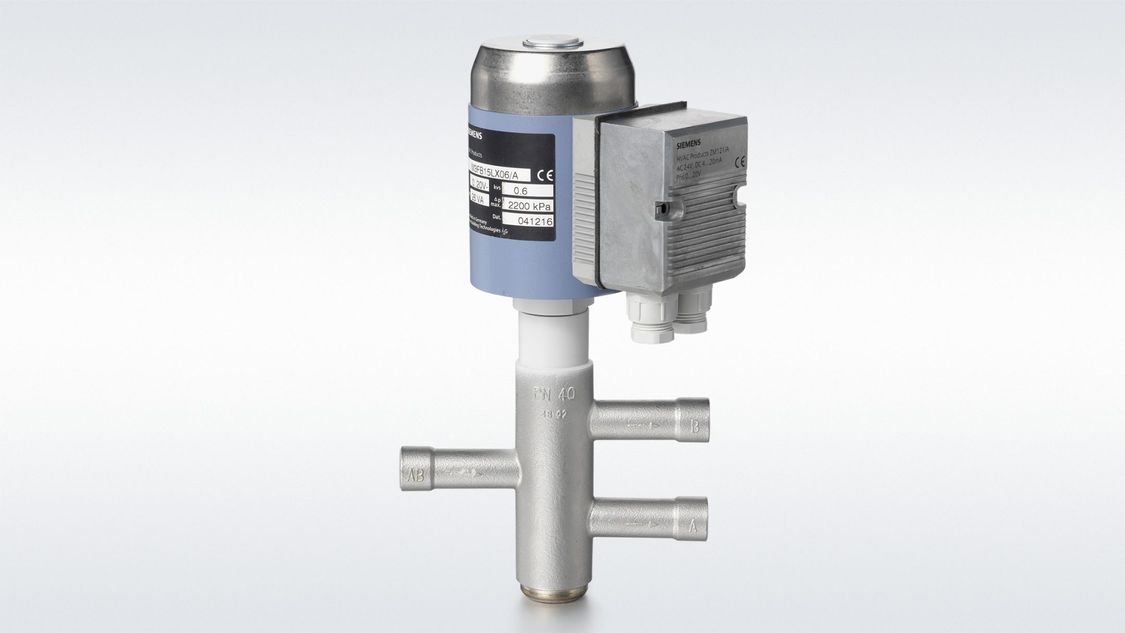

The Acvatix range offers hermetically sealed mixing, diverting, and 2-port valves for refrigeration plants. They also include refrigerant valves for expansion, hot gas and suction throttle applications. All Acvatix refrigerant valves save energy in the refrigeration plant, for example through their accurate superheat control also in part load situations.

Your benefits with Acvatix:

• Hermetically sealed refrigerant valves – also in IP65 design
• Energy savings with accurate superheat control, fine stroke resolution and <1 second  positioning time
• Vibration-free operation
• Safety feature for power failure
• Control of dynamic processes
• Easy to install and service
• High degree of environmental compatibility

Acvatix actuators for globe valves and PICVs consist of a comprehensive range of electrohydraulic, electromotoric, thermostatic and thermal actuators that can perform in a broad range of applications. For every type of actuator the suitable Acvatix valves are available.

The Acvatix range offers actuators for butterfly, mixing and slipper valves as well as damper actuators for ball valves. They cover a wide application area, and for every type of actuator the suitable Acvatix valves are available.
