SIMOTION Runtime-Software

Maximum flexibility in machine building

The SIMOTION runtime software combines a powerful runtime system with high-performance PLC functionality, diverse motion control and technology functions.

Get in touch directly with a contact partner in your area

Your personal contact

High performance and scalability

The runtime system for all your motion control applications

In addition to the basic functions of SIMOTION it’s possible to extend the range of technology functions as desired. With the various options to scale and expand the SIMOTION runtime software you can immediately realize customized solutions according to your specifications.

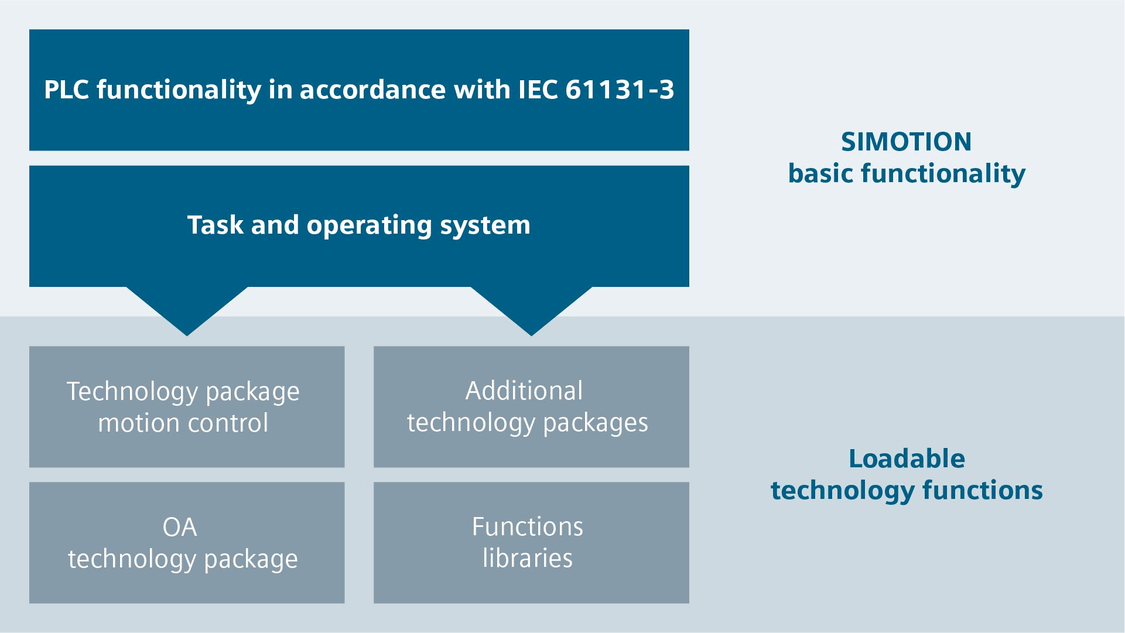

SIMOTION runtime software: high flexibility with loadable technology functions

Customizable package of services

The SIMOTION runtime system includes the PLC functionality, the task system, and the entire range of SIMOTION technology functions that are integrated via technology packages. In addition, integrated function libraries allow the integration of special I/Os and communication modules and expand the system functionality (e.g. controller).

Versatile customization options

The perfect package for individual solutions

The SIMOTION runtime system is based on the interplay of basic functions and integrable technology packages and function libraries.

SIMOTION basic functionality

SIMOTION covers all necessary PLC commands (in accordance with IEC 61131-3) for process and machine control as well as for I/O administration. User programs can be processed in different task levels without additional programming. The runtime system supports PLC, technology, and motion control tasks in cyclical, synchronous, sequential, time- and event-controlled tasks

Function libraries

As part of SCOUT, function libraries make it especially convenient to integrate I/Os into the SIMOTION user program.

Building on the technology packages, a large number of industry-specific technology functions are available, such as for a rewinder or an unwinder.

SIMOTION technology packages

Basic functions can be flexibly adjusted to your current requirements through the addition of suitable technology packages. They can be conveniently accessed via the SCOUT command libraries and PLC open blocks.

Preconfigured industry-specific functions can be integrated into the project additionally.

> Overview of industry-specific solutions

Motion control technology package

A scalable functionality is available for motion control. This includes everything from cam to positioning, gearing and camming, as well as 3D path interpolation for various handling kinematics.

The motion control technology package allows intuitive and universal programming of all important motion sequences of a production machine, from simple

single-axis to complex multi-axis applications and from low to high PLC performance.

Temperature control technology package

The SIMOTION technology package for temperature control provides temperature channels with extensive functions. These functions are accessed via additional language commands and system variables.

Drive Control Chart (DCC) technology package

The SIMOTION technology package for Drive Control Chart (DCC) provides a library with Drive Control Blocks (DCBs). These blocks make it easy to configure control functions graphically.

SIMOTION OA technology packages

SIMOTION OA technology packages are based on SIMOTION’s open architecture interface. This OA interface is used to provide customer or industry specific solutions, independent of software development cycles. SIMOTION OA technology packages are optional packages for SIMOTION SCOUT and can be installed with a separate setup.

Additional technology packages are available:

  • Multipurpose Information Interface (MIIF) technology package
  • Vibration Extinction (VIBX) technology package
  • OACAMGEN technology package
  • Learning Error Compensation (LECo) technology package
Detailed information about technology packages in the SIMOTION catalog

Download catalog

How you benefit from SIMOTION runtime software

High performance

Maximum efficiency thanks to the real-time operating system with task-oriented levels for high clock cycle and short response times.

Scalable

Different functionality levels as well as diverse software modules and technology packages make it possible to precisely tailor the SIMOTION runtime system to any motion control requirement.

Flexible

The SIMOTION runtime system offers an impressive broad scope of languages and freely programmable PLC functionalities. The extensive technology functions provide you with maximum freedom when it comes to the implementation of nearly any type of machine.

Extendable

Technology packages with a wide range of commands and function libraries for I/O connection as well as industry-specific functions can be combined in various ways to precisely align the solution to the specific requirement.

Expand SIMOTION functionality with open architecture

Learning Error Compensation (LECo)

The LECo algorithm compensates mechanical weaknesses when combined with SIMOTION. Cyclic errors and lags of the position controller are reduced to a minimum, so your production process becomes as precise and as stable as possible.

More about LECo
