Ochrana pre digitálne rozvodne
Vysokovýkonná ochranaumožňuje vášmu zdroju použiteľnosť v budúcnosti
Ochrana je nevyhnutná pre prevádzkovateľov sietí, dodávateľov elektrickej energie a priemyselných podnikov v každom sektore. Siemens už viac ako 100 rokov ponúka úspešné a vždy inovatívne technológie ochrán. To znamená dlhodobú spokojnosť používateľov s produktmi a riešeniami, službami a partnerstvom so skutočným globálnym hráčom. Siemens je ideálnym partnerom pre prekonanie vízií v digitálnej budúcnosti.
Highest availability even in harsh environment
SIPROTEC 5 and SIPROTEC Compact – Conformal Coating as standard
The new coating feature provides an additional level of protection for SIPROTEC devices used in extremely harsh environmental conditions.
With SIPROTEC 5, Siemens is offering the most comprehensive protection portfolio in the industry.
SIPROTEC 5 sets the benchmark for protecting, automating, and monitoring your network. As an incomparably modular, flexible generation of intelligent digital field devices, SIPROTEC 5 offers a comprehensive product family with modular elements for every application and requirement that can be precisely configured to your application.
SIPROTEC 5 delivers maximum protection and flexibility throughout the entire lifecycle. Take advantage of the leading provider in the field of protection, a global partner that supports you every step of the way.

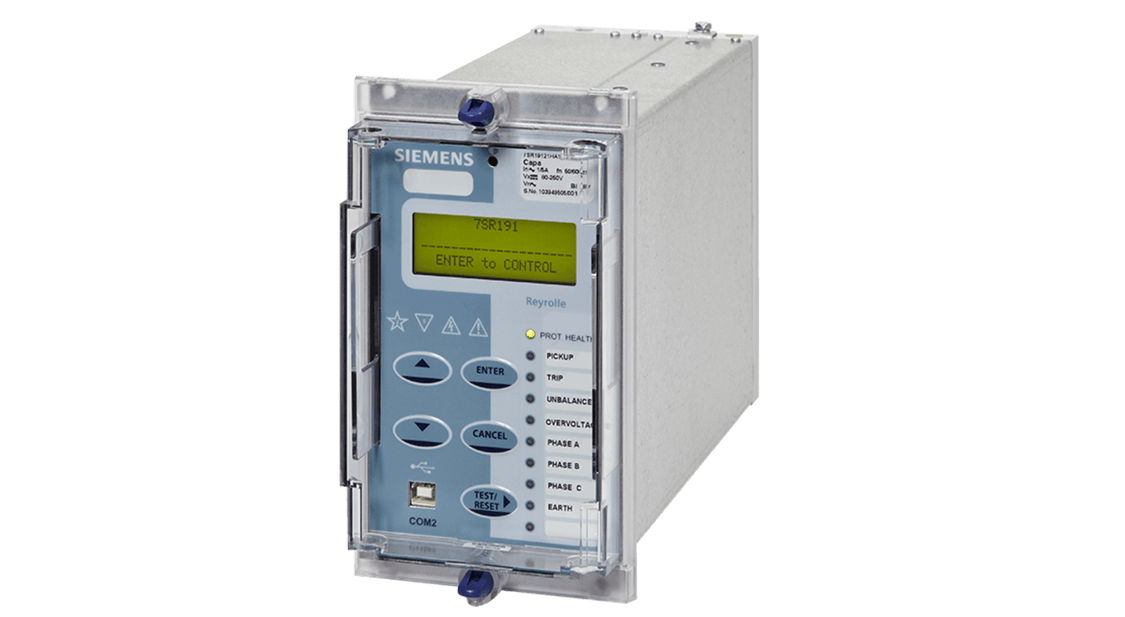

Reyrolle continues its tradition of quality protection relays and control devices.
Uncompromising to achieve maximum performance: We are committed to high technology development and manufacture with full use of the latest software at all stages of product development, manufacture, and testing. This can be seen in the latest digital products that Reyrolle offers and is continuing with new innovations as part of Siemens.
Protection devices for your successFor over a century, innovative protection relay and control technology from Siemens has ensured a reliable power supply as well as secure and efficient grid operations. The comprehensive range of products and solutions meets all conceivable requirements. Here are some examples.
Process bus with SIPROTEC
Protection functions require the measurement of voltages and currents. The analog values are measured via instrument transformer, then provided to the protection device and processed by the protection algorithm.
The conventional instrument transformers are directly connected to the protection devices with parallel copper lines. This solution is proven, but requires a lot of wiring effort, has physical limits (accuracy, saturation) and bears the risk of open CT circuits.
Process bus solution

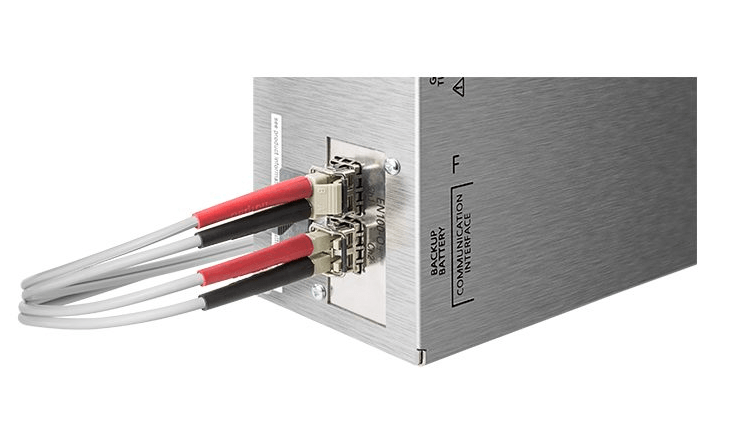

This innovative solution involves positioning a Merging Unit close to the transformer. The Merging Unit records the measured values of the transformers, digitalizes them and sends them to one or more protection devices via a sampled measured values (SMV) data stream over fiber optical Ethernet.
The protection relays no longer work with analog values, but directly use the digital values from the sampled measured values data stream.
The Merging Unit is the interoperable interface between primary and secondary equipment for process bus solutions conforming to IEC 61869 and IEC 61850-9-2. Measured values of conventional and non-conventional transformers are converted into standardized, Ethernet-based telegrams (SMV).
- Cost saving - Copper cable reduction, faster installation and commissioning
- Independency - Interoperable design enables multi-vendor solutions based on IEC 61850 standard
- Flexibility and scalability - Easier adaptation to future requirements and integration of wider range of data sources (independent signal routing)
The use of non-conventional transformers (LPIT) makes the process bus solution even more efficient.
- Cost saving - Reduced space and 90 % reduced weight of transducers
- Cost saving - One LPIT type for protection and measurement in all feeders because of the wide dynamic range
- Operational safety - Danger of open CT circuits obsolete or reduce
Transient Ground Fault Function
Low-impedance ground faults are generally managed reliably with protection devices like the SIPROTEC 7SN60. The high sampling rate of SIPROTEC 5 devices allows for the integration of new, sensitive digital procedures for the reliable detection of high-impedance ground faults. The parts of the signal which are caused by the discharging and charging of the ground capacitances of the grid are of particular interest here. The active power in the zero-sequence system is a good criterion to detect the direction of the ground fault. As the charging takes place over a longer period of time with high-impedance ground faults, this part of the active power is available during this time period and can be integrated right from the ignition of the fault. This results in the active energy in the zero-sequence system.
Radial systems do not pose a problem for determining the direction. In meshed systems, operational zero-sequence currents can falsify the resulting direction. These operational zero-sequence currents are eliminated by the new algorithm in order to determine the correct direction.
Arc fault protection is a relatively new technique employed for the fast clearance of arcing faults on busbars and within metal clad switchgear & associated cable boxes. The arc is detected using an optical sensor & the signal input to a protection device which also monitors the load current on the system. Conventional current based protection techniques are at times challenged by the nature of arcing faults, and can result in slow protection clearance times. Slow protection clearance times increase the risk to nearby personnel and increase the degree of damage to plant and equipment. By employing an optical detection technique, Arc Fault Protection results in fast clearance of arcing faults.
Phasor Measurement Units (PMUs) and its measured synchrophasors make a valuable contribution to the dynamic monitoring of transient processes in energy supply systems. Phasor Measurement Units (PMUs) measure current and voltage by amplitude and phase at selected stations of the transmission system. The high-precision time synchronization (via GPS) allows comparing measured values (synchrophasors) from different substations far apart and drawing conclusions as to the system state and dynamic events such as power swing conditions.
All SIPROTEC 5 devices can be used as a Phasor Measurement Unit. When selecting the option “Phasor Measurement Unit”, the devices determine current and voltage phasors, provide them with highly accurate time stamps and transmit them for analysis together with other measured values (frequency, speed of frequency change) using the IEEE C37.118 communication protocol, which are typically sent to the control center.
SIGUARD PDP (Phasor Data Processor) is a system for Wide Area Monitoring and Grid Monitoring that, as its measured variables, uses synchrophasors from phasor measurement units serving as sensors. It helps with quick recognition of the current network situation and indicates both power swings and transient phenomena, transparently as well as instantly. Replication of the respective network topology is not required. The tool supports control center personnel in assessing critical grid situations and contributes to the taking of suitable action. As all measured results are stored, power system disturbances can be promptly analyzed.
Capacitor Bank Protection
Reliably detect errors in capacitor banks while protecting the filter circuit. Protect your capacitor banks and thereby maintain grid stability.

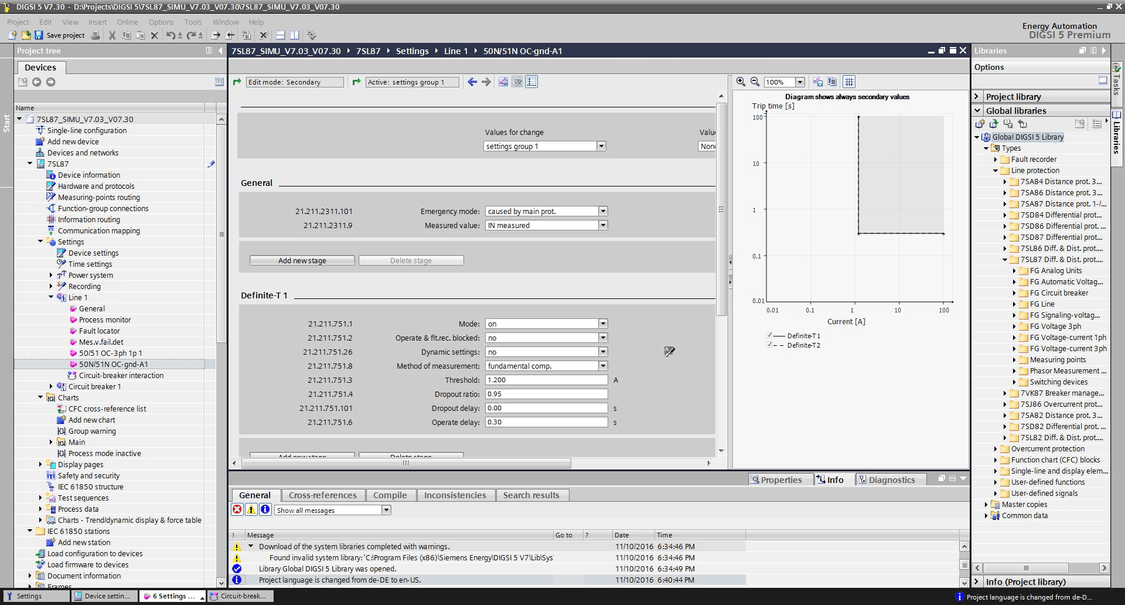

Engineering Software DIGSI 5
DIGSI 5 is the versatile engineering tool for parameterization, commissioning and operating all SIPROTEC 5 devices. Its innovative user interface includes context-sensitive user instructions. Simple connection to the device via USB enables you to work with a device easily and efficiently. The full capabilities of DIGSI 5 are revealed when you connect it to a network of protection devices: Then you can work with all of the devices in a substation in one project.
DIGSI 5 offers superior usability and is optimized for your work processes. Only the information you actually need to carry out your tasks is shown. These can be reduced further using expanded filter mechanisms. The consistent use of sophisticated, uniform mechanisms in the user interfaces requires less training.
