RUGGEDCOM RS900 family
Discover a family of compact, fully managed Ethernet switches
Ideally suited for mission-critical, real-time control applications requiring high levels of reliability and availability.

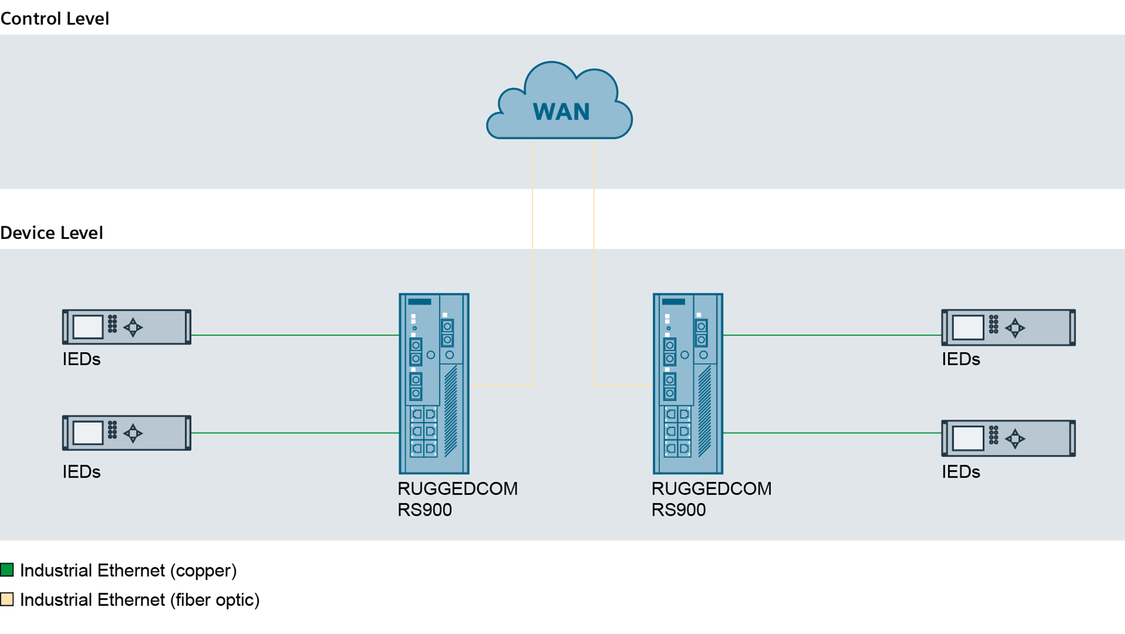

RUGGEDCOM RS900
The RUGGEDCOM RS900 is a 9-port utility-grade, fully managed Ethernet switch designed to operate reliably in electrically harsh and climatically demanding environments.
It offers a high level of immunity to electromagnetic interference and heavy electrical surges typical of environments found on plant floors or in curbside traffic control cabinets.
An operating temperature range of –40 to +85°C (–40 to +185°F) and hazardous location certification (Class 1 Division 2) allows the RS900 to be placed in almost any location.

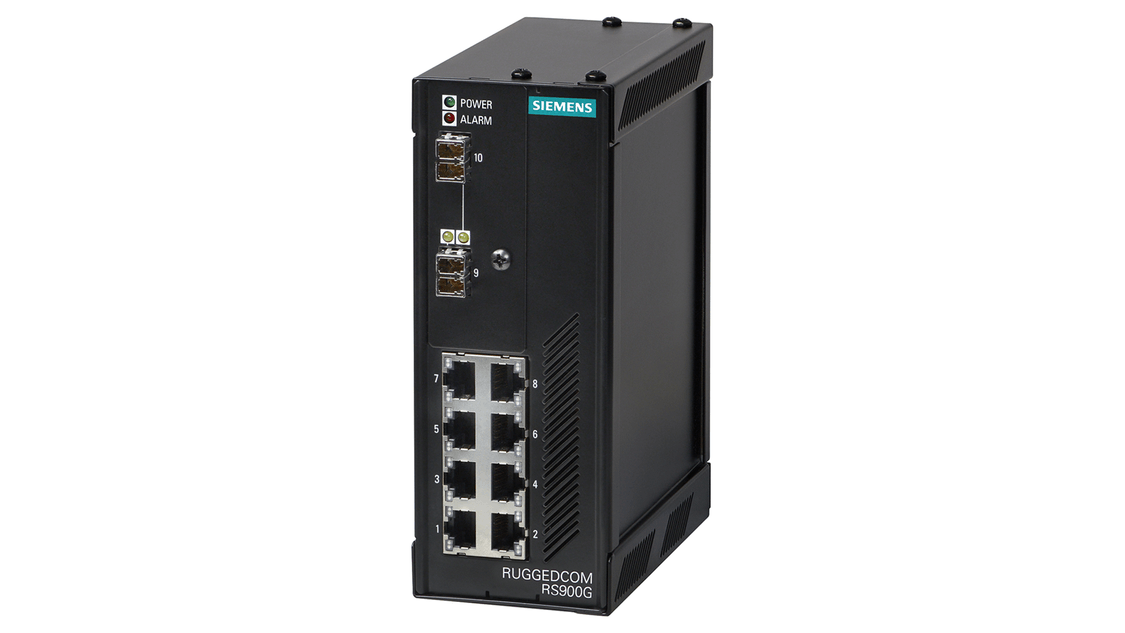

RUGGEDCOM RS900G
The RUGGEDCOM RS900G is a 10-port utility-grade, fully managed Ethernet switch which has dual fiber optical Gigabit Ethernet ports and eight fast Ethernet copper ports.
It offers a high level of immunity to electromagnetic interference and heavy electrical surges typical of environments found in electric utility substations, factory floors and curbside traffic control cabinets.
An operating temperature range of -40°C to +85°C combined with hazardous location certification, optional conformal coating, and a galvanized steel enclosure allows the RS900G to be placed in almost any location.

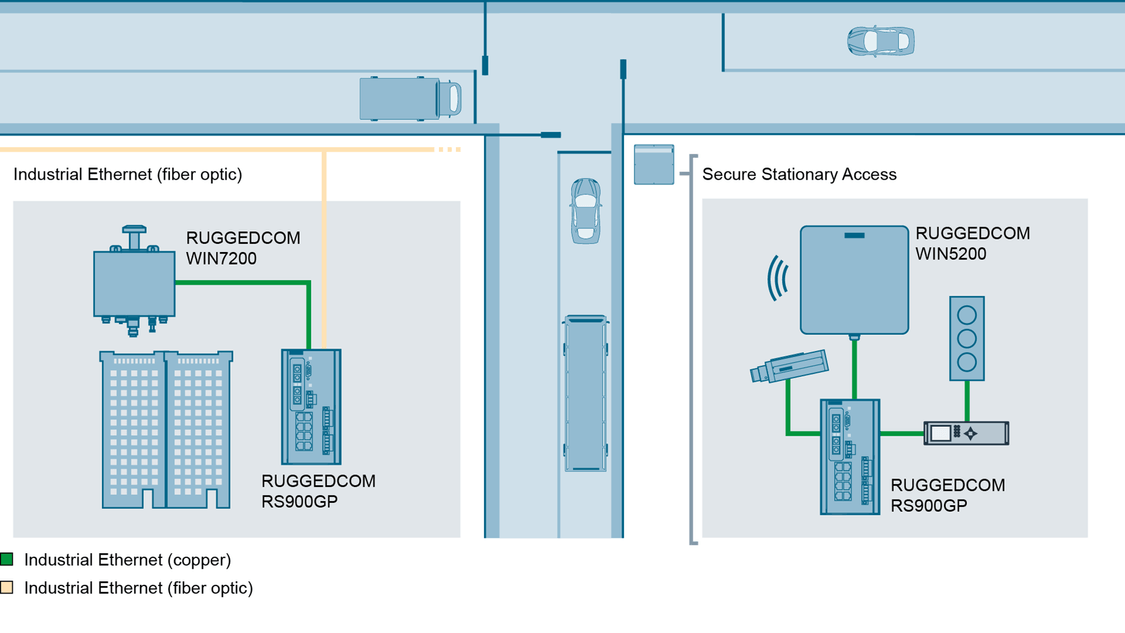

RUGGEDCOM RS900GP
The RUGGEDCOM RS900GP is a 10-port utility-grade, fully managed Ethernet switch which has dual fiber optic or copper Gigabit Ethernet ports and eight fast Ethernet copper ports, each capable of supplying high power 802.3at compliant power over Ethernet.
It offers a high level of immunity to electromagnetic interference and heavy electrical surges typical of environments found in electric utility substations, factory floors and traffic control cabinets.
The two fiber optic Gigabit Ethernet ports are capable of creating a fiber optic backbone with high noise immunity and long haul connectivity.

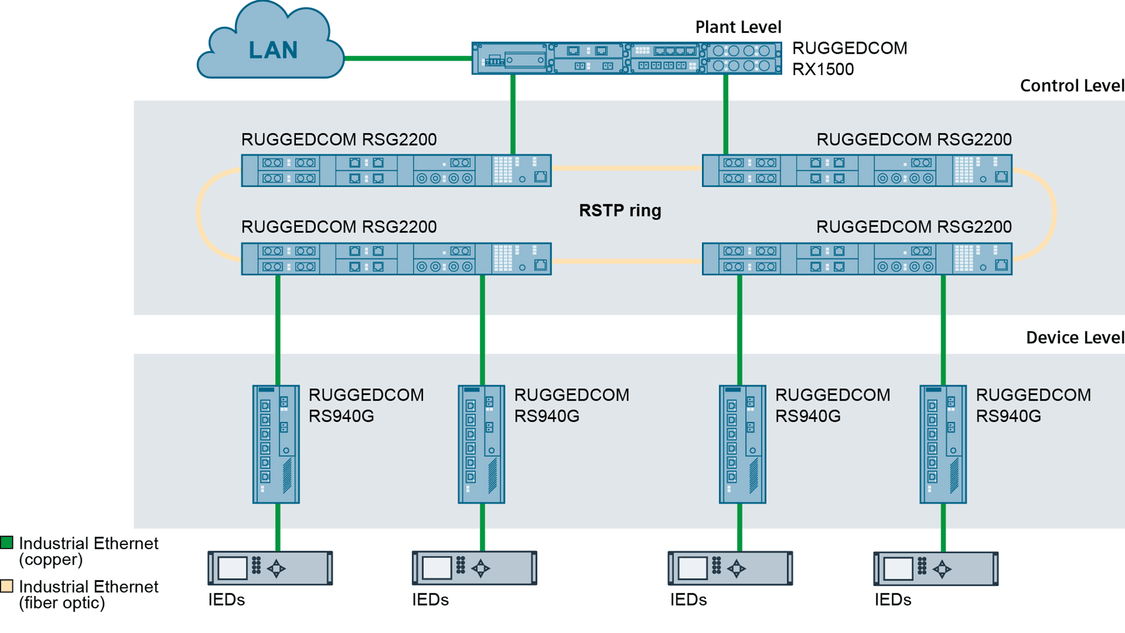

RUGGEDCOM RS940G
The RUGGEDCOM RS940G is a utility-grade, fully managed Ethernet switch with six or eight Gigabit Ethernet ports. Six 10/100/1000BaseTX triple speed copper ports are standard. An additional two Gigabit fiber or copper ports can be added.
It is a cost-effective way of connecting a cluster of field devices to a Gigabit Ethernet backbone. The two fiber optic Gigabit Ethernet ports are capable of creating a fiber optic backbone with high noise immunity and long haul connectivity.

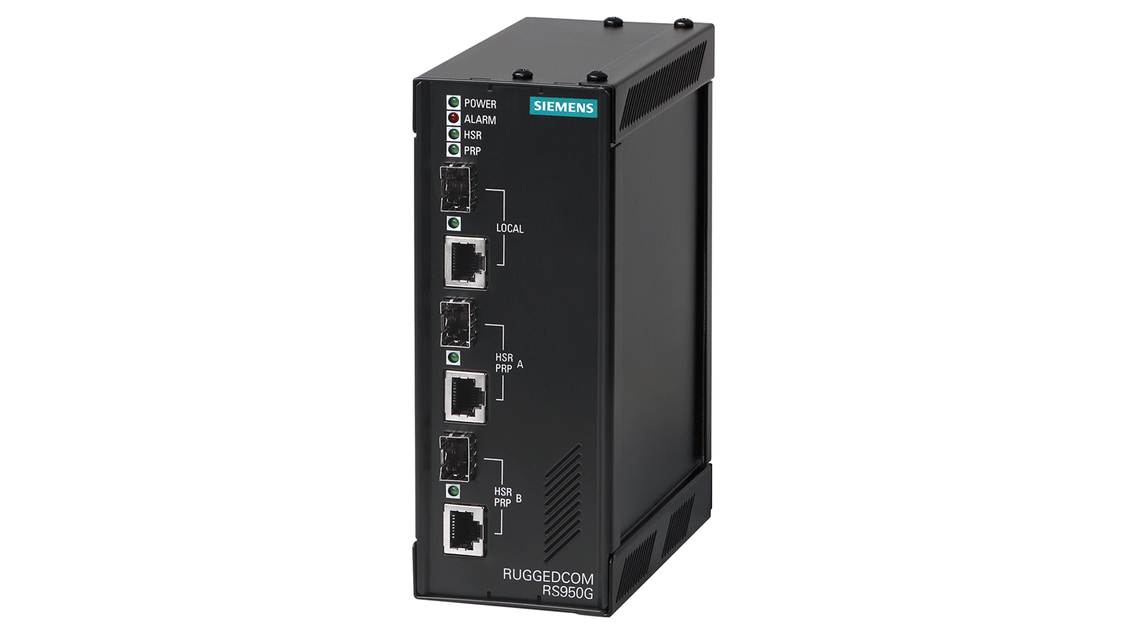

RUGGEDCOM RS950G

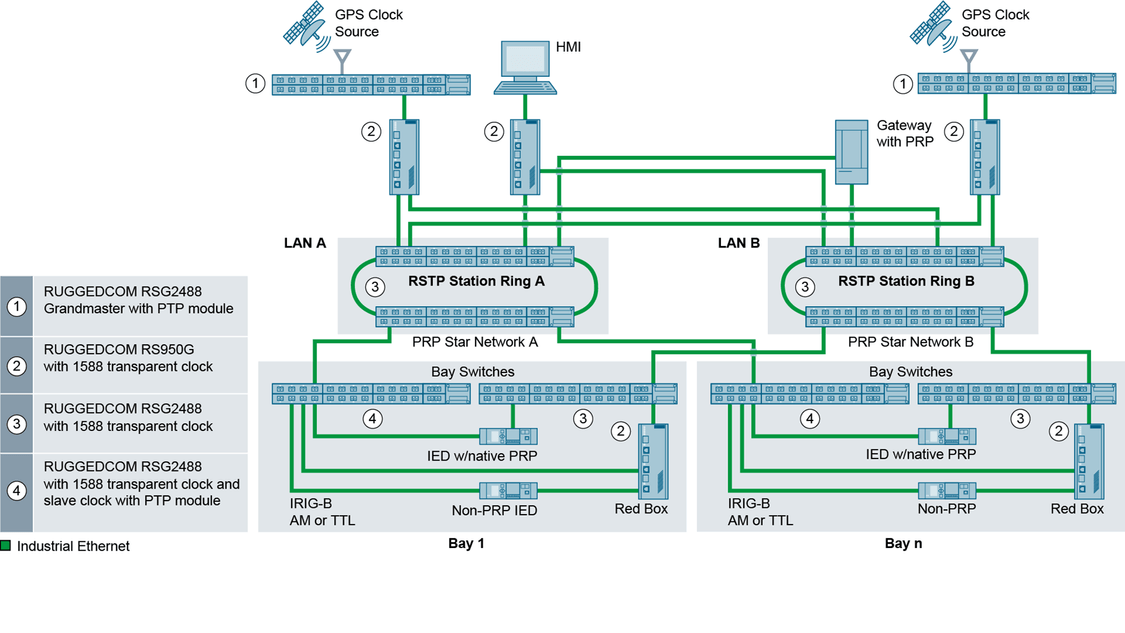

The RUGGEDCOM RS950G is an IEC 62439-3 Redundancy Box (RedBox) supporting both High Availability Seamless Redundancy (HSR) and Parallel Redundancy Protocol (PRP).
It provides the ultimate in network reliability from any network fault. This is achieved by simultaneously transmitting duplicate packets on independent routes through the network to provide complete path redundancy at the data link layer.
Products at a glance
Technology that meets industry requirements
True to their name, RUGGEDCOM solutions are built tough – delivering error-free communications under high levels of electromagnetic interference in extreme temperatures and over long distances. See how RUGGEDCOM solutions have been put to the test. Discover special features, examples of international standards compliance, and more.
