RUGGEDCOM RSG2000 Family

Ethernet switches optimized for harsh and demanding industrial environments

This family of rack-mounted Ethernet Layer 2 switches deliver utility-grade performance, reliability, and field-proven MTBF (Mean Time Between Failures) to lower operating expenses.

Find the right product for your needs

RUGGEDCOM Selector

Overview

Rugged communications for harsh environments

Designed for and put to the test under the harshest environments, RUGGEDCOM products meet and exceed recognized industry standards for performance in mission-critical applications.
Icon Improved reliability

Proven reliability

When it comes to RUGGEDCOM products: Siemens conducts Highly Accelerated Life Testing (HALT) in the early stages of product development to detect any design or performance issues as well as Highly Accelerated Stress Screening (HASS) later to ensure that customers get orders free of manufacturing errors and random defects. RUGGEDCOM products are thus able to provide reliable and error-free operation in harsh industrial environments.

Icon Rugged

High immunity

The proliferation of IP networking technology in real-time, mission critical control applications requires a level of immunity to electromagnetic interference (EMI) beyond what is currently delivered by commercial grade networking products. Technology used in RUGGEDCOM products is able to withstand all EMI type tests required by IEC 61850-3 without any communications loss or delays. Products with this technology also qualify as IEEE 1613 class 2 error-free devices. This innovation – known as Zero Packet Loss™ technology – is designed to provide the same level of EMI immunity as protective relaying devices.

Icon Cybersecurity

Trusted security

RUGGEDCOM products do not just offer immunity against electromagnetic interference, they also come with a variety of advanced cybersecurity features. These include multilevel user passwords, SSH/SSL (128-bit encryption), enable/disable ports, MAC-based port security, VLAN (802.1Q) to segregate and secure network traffic, RADIUS centralized password management, as well as SNMPv3 authentication and 56-bit encryption.

RUGGEDCOM RSG2000 family

Discover our product portfolio

RUGGEDCOM RSG2100

RUGGEDCOM RSG2100

Featuring 4 modular Gigabit uplink ports and 128-bit encryption, the RUGGEDCOM RSG2100 32-port Ethernet switch offers durability, availability, and performance reliability.



A utility-grade, fully managed, modular Ethernet switch, the RUGGEDCOM RSG2100 is specifically designed to operate reliably in harsh and demanding industrial environments.



This product is designed for Ethernet networks in mission-critical control applications. The rugged hardware design and embedded Rugged Operating System (ROS®) means that the RSG2100 provides improved system reliability along with advanced cybersecurity and networking features.

Thanks to its interface versatility the RUGGEDCOM RSG2100 is an ideal device to connect a multitude of different devices using a combination of fiber optic and copper with different connector types and speeds.
RUGGEDCOM RSG2100P

RUGGEDCOM RSG2100P

When you think durability, availability, and performance reliability: think RUGGEDCOM RSG2100P. A 32-port Power-over-Ethernet (PoE) enabled switch is equipped with 4 modular Gigabit uplink ports and 128-bit encryption.



Specifically designed for reliable operation in harsh and demanding industrial environments, this utility-grade, fully managed modular switch:

  • Comes standard with four 10/100BaseTX 802.3af (PoE) compliant Ethernet ports
  • Offers modular flexibility for up to 15 additional Ethernet ports, including 10BaseFL/100BaseFX/1000BaseX fiber and 10/100/1000BaseTX copper port combinations
  • Supports multiple fiber types and connectors (ST, MTRJ, LC, SC) without loss of port density

The highly versatile RSG2100P is an ideal solution to power and connect several Ethernet devices (e.g. IP phones, video cameras, and wireless access points) where AC power is not available or is too cost-prohibitive to provide locally.

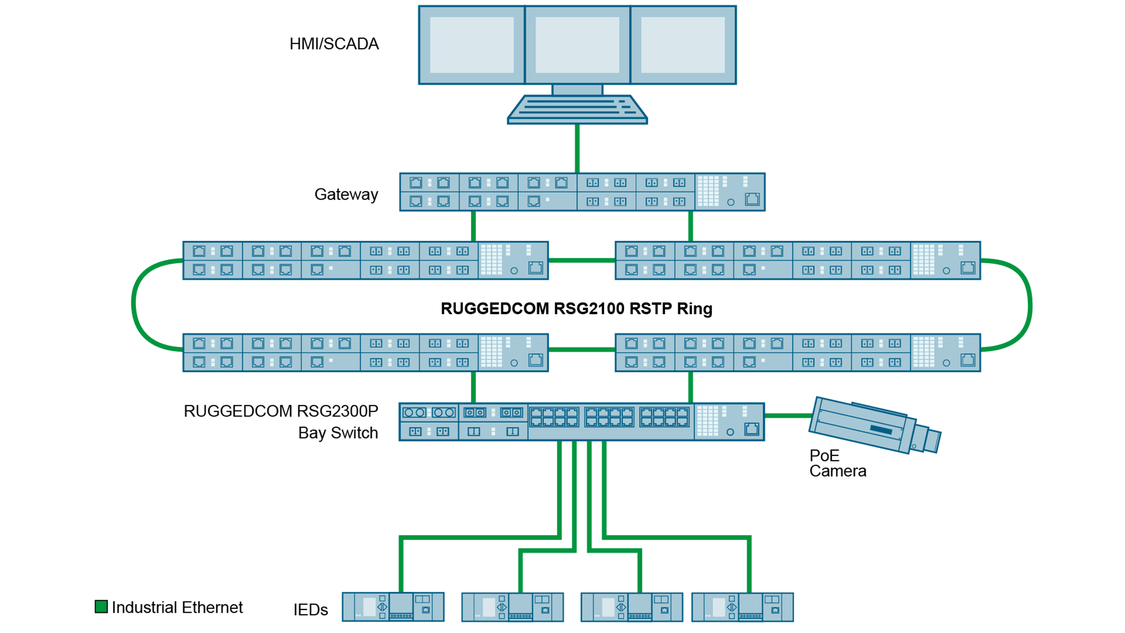

The RUGGEDCOM RSG2100 is deployed in a redundant ring based on RSTP for optimal reliability.
RUGGEDCOM RS900GP

RUGGEDCOM RSG2200

Utility-grade, fully managed, modular Gigabit Ethernet switch which:

  • Offers modular flexibility with 1000BaseX fiber and 10/100/1000BaseTX copper port combinations
  • Provides support for front or rear mount connectors coupled with multiple fiber connector types (SFP, GBIC, LC, SC) without loss of port density
  • Comes packaged in a rugged galvanized steel enclosure with industrial grade DIN, panel, or 19" rack mount options

Highly versatile and suitable for any application, RSG2200 was specifically designed to operate reliably in harsh and demanding industrial environments.

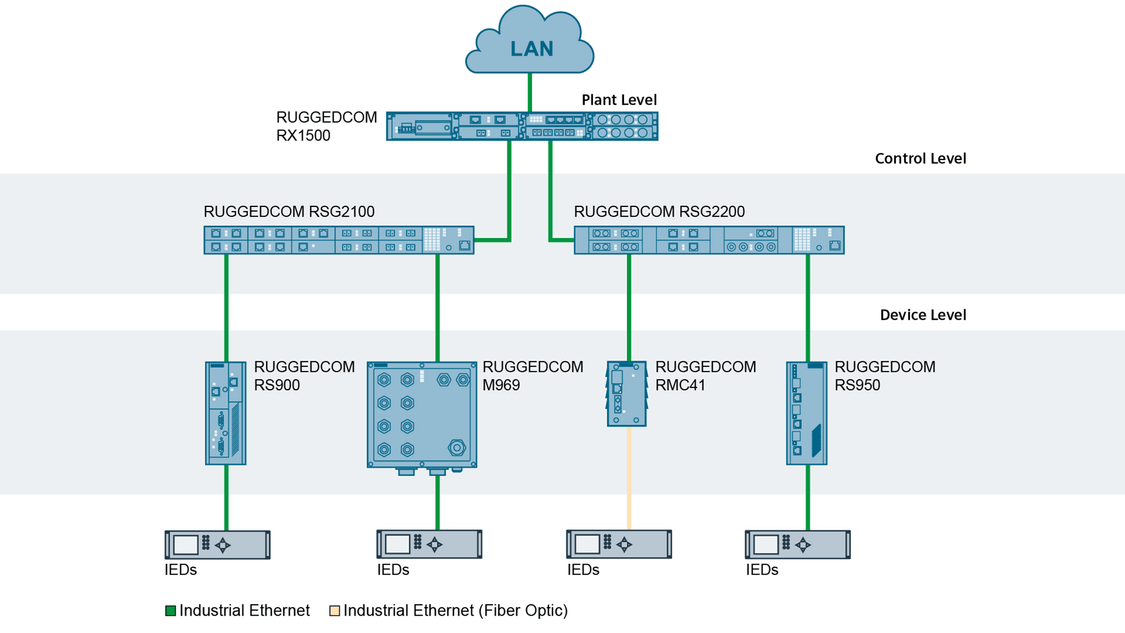

The RUGGEDCOM RSG2200 Gigabit communication provides reliable, high speed connection throughout the network.
RUGGEDCOM RSG2300

RUGGEDCOM RSG2300

The RUGGEDCOM RSG2300 is a utility-grade, fully managed, 32-Port Managed Ethernet Switch with 4 Modular Gigabit Uplink Ports. Its features include a modular flexibility which offers 10BaseFL /100BaseFX /1000BaseX fiber and 10/100/1000BaseTX copper port combinations.



Optional front or rear mount connectors make the RSG2300 highly versatile and suitable for any application. It can also support multiple fiber connectors (ST, MTRJ, LC, SC) without a loss of port density.

With its high port density of copper interface, the RUGGEDCOM RSG2300 is ideal for connecting a large number of devices at the Bay level.
RUGGEDCOM RSG2300

RUGGEDCOM RSG2300P

Fully managed, utility-grade RUGGEDCOM RSG2300P is a PoE-enabled modular Ethernet switch. Specifically designed for reliable operation in harsh and demanding industrial environments, it:

  • Comes standard with 2 10/100BaseTX 802.3af (PoE) compliant Ethernet ports with an optional additional 2 PoE ports
  • Offers modular flexibility for up to six additional Ethernet ports, including 10BaseFL/100BaseFX/1000BaseX fiber and 10/100/1000BaseTX copper port combinations
  • Supports multiple fiber types and connectors (ST, MTRJ, LC, SC) without a loss of port density

The highly versatile RSG2300P is an ideal solution to power and connect several Ethernet devices (e.g. IP phones, video cameras and wireless access points) where AC power is not available or too cost-prohibitive to provide locally.

With its high number of ports, the RUGGEDCOM RSG2300P is ideal for connecting wireless LAN, cameras and other peripheral devices directly.
With its high number of ports, the RUGGEDCOM RSG2300P is ideal for connecting wireless LAN, cameras and other peripheral devices directly.

Products at a glance


RSG2100
RSG2100P
RSG2200
RSG2300
RSG2300P
Description
19 port managed ethernet switch with Gigabit uplinks and configurable modules
19 port managed PoE Ethernet switch with Gigabit uplinks and configurable modules
9 port, managed Gigabit ethernet switch with configurable modules
32 port, managed Ethernet switch with Gigabit uplinks
28 port, managed Gigabit PoE Ethernet Switch with Gigabit uplinks
Configurable Modules
10
10
6
4
4
Fast Ethernet Ports
Up to 16 (copper and/or fiber)
Up to 15 (copper and/or fiber)
-
24 x copper ports / optional up to 8 x fiber
24 x copper ports / optional up to 8 x fiber
Gigabit Ports
Up to 3 (copper and/or fiber)
N/A
9 (copper and/or fiber)
Optional up to 4 (copper and/or fiber)
N/A
Power-over-Ethernet (PoE)
-
Up to 4 PoE
-
-
Up to 4 PoE
Operating Temperature Range
–40°C to +85°C
–40°C to +85°C
–40°C to +85°C
–40°C to +85°C
–40°C to +85°C
Power Supply
24 VDC, 48 VDC or HI
24 VDC, 48 VDC or HI
24 VDC, 48 VDC or HI
24 VDC, 48 VDC or HI
24 VDC, 48 VDC or HI
