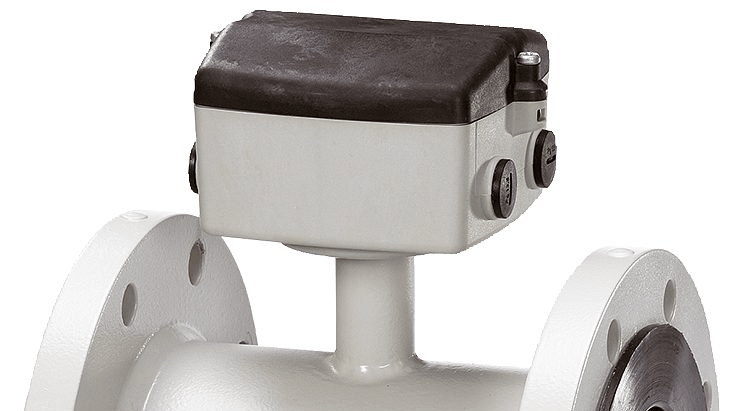

Electromagnetic Flow Meter Sensor

The SITRANS FM MAG 5100 W with its patented liners of hard rubber NBR or ebonite and EPDM is a sensor for all water applications such as ground water, drinking water, cooling water, wastewater, sewage or sludge applications.

SITRANS FM MAG 5100 W Catalog Specifications

Download PDF

 In order to  have a complete flowmeter, please  combine it  with one of the following MAG transmitters:


SITRANS FM MAG 5000: Cost efficient transmitter, accuracy of + 0.4 % of flow rate

SITRANS FM MAG 6000: Bus communication, batch function and accuracy of + 0.2 % of flow rate

SITRANS FM MAG 6000 I: Alu enclosure, Ex approvals, bus communication, batch function and accuracy of + 0.2 % of flow rate


The transmitter can be combined with the energy calculator SITRANS FUE950

Application examples: Water abstraction, Water distribution network, Waste water and as custody transfer water meter or cooling meter.


  • Short lead time

  • Rugged NBR hard rubber liner for all water and wastewater applications

  • EPDM liner specifically for drinking water applications requiring special approvals

  • Ebonite liner for drinking water, water and wastewater applications

  • Increased low flow accuracy for water leakage detection (Ebonite or EPDM liner)

  • Suitable for direct burial and constant flooding (IP68)

  • Designed to allow patented MAG in-situ verification using the SENSORPROM fingerprint



Meassuring range
0 to 10 m/s
Nominal Sizes

From DN 15 to DN 2000 (1" to 78")


0.2 % ±2.5 mm/s

Operating Pressure

Max. 16 bar (Max. 150 psi)

Ambient temperature

From -40 to 70 °C (-40 to 158 °F)

Medium Tempreature

From -10 to 70 °C (14 to 158 °F)


EPDM NBR hard rubber Ebonite hard rubber


Hastelloy C-276

Built-in grounding electrodes


Carbon steel, with corrosion resistant

two-component epoxy coating

Drinking Water Approvals

EPDM: WRAS, NSF/ANSI Standard 61, DVGW 270,

ACS and BelgAqua

Ebonite: WRAS, NSF/ANSI Standard 61

Custody Transfer Approvals

OILM R 49


PTB K7.2 (Germany)

BEV OE12/C040 (Austria)

General approval
MCERTS Sira Certificate No. MC080136/00
