Advantage Series Motors

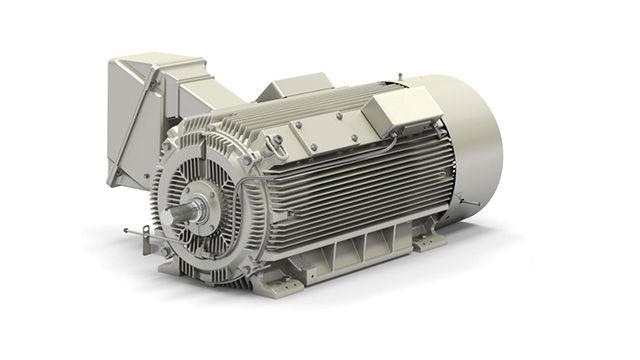

AboveNEMA Advantage TEFC Motor

Largest power offered with up to

150 HP.

  • New innovative products in this general -purpose series includes an extensive list of standard options to meet your applications. With assembly and stock in Ohio, this new line is available with short lead times!

Request A Quote

Document Links

Brochure

Factsheet

Motor Retrofit Guide

Construction Features

Enclosure

TEFC (IC411)

Degree of Protection

IP55

HP Range

150 - 1100 HP (2, 4 pole), 150 - 900 HP (6 pole)

Frame Size / Shaft Height

449, S449, 5011, 5810, SH400

Voltage

2300V/4000V

Service Factor

1.15 @ 40ºC

Warranty

36 months from date of manufacture

Construction Materials

Frame

Cast Iron

Bearing Housings

Cast Iron

Main Terminal Box

Fabricated Steel (449 frame), Cast Iron (5011+ frames)

Auxiliary Boxes

Cast Iron - NEMA 4X

Shaft

AISI 1045 (449 frame) 4140 (S449-449T frames), S355J2+-N (5011+ frames)

Rotor

Aluminum Die Cast

Lamination Material

C5 Core Plate

External Cooling Fan

Polyamide & Polypropylene (449) Bronze (S449)

Anti-Static Reinforced Polyamide (5011+ frames)

Fan Cover

Cast Iron

Top Cover / Heat Exchanger / Tube Material

N/A

Insulation

MiCLAD™ Class F non-hydroscopic, NEMA Class B temp rise (449 frame), MICLASTIC™ VPI (5011+ frames)

Hardware

Zinc Plated Carbon Steel

General Information

Noise Level

85 dB(A)

Vertical Mounting

N/A

Inverter Operation

Meets NEMA MG1-20 (449 frame), Meets NEMA MG1-31 rated at 6kV

(5011+ frames) Variable Torque: 10:1, Constant Torque: 2:1

Paint

Two-part Epoxy

Paint Color

RAL 7030 Gray

Bearing Type

Anti-friction ball

Vibration

0.12 IPS

Hazardous Area

CSA Class 1, Division 2, Groups B, C, D, Temp Class T3

(5011 frame on VFD Temp Class T2D)
Protection

Space Heater: 120/240 Volt

Stator RTD’s 2/Phase: 449, S449 – 3 wire; >449 – 2 wire

Bearing RTD’s 1/Bearing: 449, S449 – 3 wire (option); >449 – 2 wire (std.)
