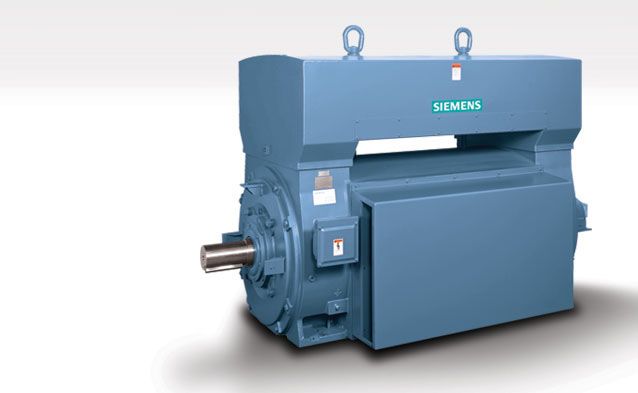

Horizontal WPII Enclosure
WPII Enclosure / IC01 / IP24 - Siemens Type CGII / 1RP
These horizontal, foot-mounted motors are specifically designed for outdoor applications where the motor is not likely to be protected by other structures.
|
Feature
|
Standard |
Available Option |
|---|---|---|
|
Power Range
|
200 - 18,000 HP
|
|
|
Poles
|
2 - 16 |
|
|
Frame Sizes
|
500, 580, 680, 800, SH630 & SH710
|
|
|
Voltage
|
460 - 13,200V (460-690V to 800 HP only)
|
|
|
Service Factor
|
1.0
|
1.15
|
|
Frame |
Cast iron yoke for 500-800 frames, fabricated steel for SH630/SH710 frames
|
N/A
|
|
Bearing Housings
|
Cast iron yoke for 500-800 frames, fabricated steel for SH630/SH710 frames
|
N/A
|
|
Main Terminal Box
|
Cast iron yoke for 500-800 frames, fabricated steel for SH630/SH710 frames
|
Fabricated steel
|
|
Auxiliary Boxes
|
Cast iron NEMA 4X
|
Stainless steel
|
|
Shaft
|
2 Pole - AISI 4140 4 Pole & slower - AISI 1045 |
Other materials available
|
|
Rotor
|
Die cast aluminum for 500 & most 580 frames Induction brazed copper bar for 680 - SH710 frames |
Induction-brazed copper bar where die cast aluminum is standard
|
|
Lamination Material
|
C5 core plate
|
N/A
|
|
Top Cover
|
Fabricated steel with provisions for future filters
|
N/A
|
|
Insulation
|
<=600V is random wound class F, >600V is form wound class F-VPI
|
N/A
|
|
Hardware
|
<=M12 - 300 series stainless steel >M12 - zinc-plated carbon steel (per API541 4th Edition) |
N/A
|
|
Paint
|
Two-part epoxy
|
Special paint system
|
|
Paint Color
|
Siemens Motor Blue
|
Other colors
|
|
Bearing Type
|
Anti-friction for 500-580 frames Anti-friction for SH630/SH710 frames (6 Pole & slower) Sleeve bearing for 680-800 frames and for SH630-SH710 frames (2 & 4 Pole) |
Sleeve bearing for 500-580 frames
|
|
Vibration
|
0.12 IPS or as defined by NEMA
|
Special balance
|
|
Warranty
|
24 months from shipment per AboveNEMA Motor Supplemental Warranty Policy
|
Deferred and/or Extended
|
