Medallion Series | AboveNEMA Motors

Horizontal TEFC

TEFC Enclosure / IC411 / IP54 - Siemens Type CZ, CGZ, & 1LA4

These horizontal, foot-mounted TEFC motors are designed for indoor and outdoor applications where internal parts must be protected from adverse ambient conditions. Utilizes cooling fins on all four quadrants of yoke and housings.

Feature	Standard	Available Option
Power Range	200 - 3,000 HP
Poles	2 - 16
Frame Sizes	500, 580, SH400, SH450, 880 & SH560
Voltage	460 - 11,000V (460-690V to 800 HP only)
Service Factor	1.0	1.15
Frame	Cast iron
Bearing Housings	Cast iron for 500-580 frames, fabricated steel for SH400, SH450, 880 & SH560 frames
Main Terminal Box	Cast iron	Fabricated steel
Auxiliary Boxes	Cast iron NEMA 4X	Stainless steel
Shaft	2 Pole - AISI 4140 4 Pole & slower - AISI 1045	Other materials available
Rotor	Die cast aluminum for 500 & most 580 frames, fabricated copper for SH400, SH450, 880 & SH560 frames	Fabricated copper for 500-580 frames
Lamination Material	C5 core plate	N/A
External Cooling Fan	Aluminum	Other materials available
Fan Cover	Cast iron for 500 and 580 frames, steel for SH400, SH450, 880 & SH560 frames	N/A
Insulation	<600V is Class F random wound, >600V is Class F-VPI	N/A
Hardware	300 series stainless steel	N/A
Paint	Two-part epoxy	Special paint system
Paint Color	Siemens Motor Blue	Other colors
Bearing Type	Ball bearing except for 2-pole SH400, SH450, 880 & SH560 frames which are sleeve bearing	Sleeve bearing
Vibration	0.12 IPS or as defined by NEMA	Special balance
Warranty	24 months from shipment per AboveNEMA Motor Supplemental Warranty Policy	Deferred and/or Extended

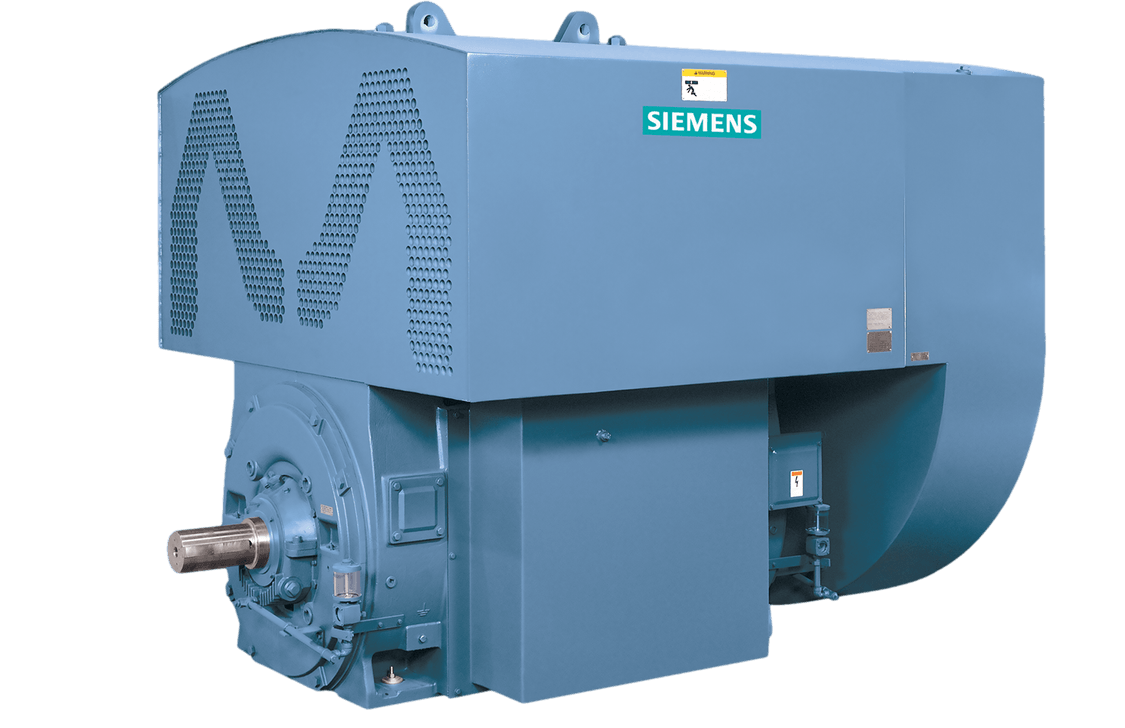

Horizontal WPII

WPII Enclosure / IC01 / IP24 - Siemens Type CGII / 1RP

These horizontal, foot-mounted motors are specifically designed for outdoor applications where the motor is not likely to be protected by other structures.

Feature	Standard	Available Option
Power Range	200 - 18,000 HP
Poles	2 - 16
Frame Sizes	500, 580, 680, 800, SH630 & SH710
Voltage	460 - 13,200V (460-690V to 800 HP only)
Service Factor	1.0	1.15
Frame	Cast iron yoke for 500-800 frames, fabricated steel for SH630/SH710 frames	N/A
Bearing Housings	Cast iron yoke for 500-800 frames, fabricated steel for SH630/SH710 frames	N/A
Main Terminal Box	Cast iron yoke for 500-800 frames, fabricated steel for SH630/SH710 frames	Fabricated steel
Auxiliary Boxes	Cast iron NEMA 4X	Stainless steel
Shaft	2 Pole - AISI 4140 4 Pole & slower - AISI 1045	Other materials available
Rotor	Die cast aluminum for 500 & most 580 frames Induction brazed copper bar for 680 - SH710 frames	Induction-brazed copper bar where die cast aluminum is standard
Lamination Material	C5 core plate	N/A
Top Cover	Fabricated steel with provisions for future filters	N/A
Insulation	<=600V is random wound class F, >600V is form wound class F-VPI	N/A
Hardware	<=M12 - 300 series stainless steel >M12 - zinc-plated carbon steel (per API541 4th Edition)	N/A
Paint	Two-part epoxy	Special paint system
Paint Color	Siemens Motor Blue	Other colors
Bearing Type	Anti-friction for 500-580 frames Anti-friction for SH630/SH710 frames (6 Pole & slower) Sleeve bearing for 680-800 frames and for SH630-SH710 frames (2 & 4 Pole)	Sleeve bearing for 500-580 frames
Vibration	0.12 IPS or as defined by NEMA	Special balance
Warranty	24 months from shipment per AboveNEMA Motor Supplemental Warranty Policy	Deferred and/or Extended

Horizontal TEAAC

TEAAC Enclosure / IC611 / IP54 - Siemens Type CAZ / 1RQ

These horizontal, foot-mounted motors are designed for indoor and outdoor applications where internal parts must be protected from adverse ambient conditions. Utilizes air-to-air, tube-type heat exchangers.

Feature	Standard	Available Option
Power Range	200 - 14,000 HP
Poles	2 - 16
Frame Sizes	580, 680, 800, SH630, SH710
Voltage	460 - 13,200V (460-690V to 800HP only)
Service Factor	1.0	1.15
Frame	Cast iron for 580-800 frames, fabricated steel for SH630/SH710 frame
Bearing Housings	Cast iron for 580-800 frames, fabricated steel for SH630/SH710 frame
Main Terminal Box	Cast iron for 580-800 frames, fabricated steel for SH630/SH710 frame	Fabricated steel
Auxiliary Boxes	Cast iron NEMA 4X	Stainless steel
Shaft	2 Pole - AISI 1045 4 Pole & slower - AISI 4140	Other materials available
Rotor	Die cast aluminum - 580 frames, Induction-brazed copper bar for 680-SH710 frames	Induction-brazed copper bar where die cast aluminum is standard
Lamination Material	C5 core plate	N/A
External Cooling Fan	Aluminum for 580-800 frames Steel for SH630/SH710 frames	Other materials available
Fan Cover	Fabricated steel	N/A
Heat Exchanger	Fabricated steel with aluminum cooling tubes	Stainless steel cooling tubes
Insulation	<=600V is random wound class F >600V is form wound class F-VPI	N/A
Hardware	<= M12 - 300 series stainless steel >M12 - zinc-plated carbon steel (per API541 4th Edition)	N/A
Paint	Two-part epoxy	Special paint system
Paint Color	Siemens Motor Blue	Other colors
Bearing Type	Anti-friction bearing for 580 frames and for SH630/SH710 (6 Pole & slower) Sleeve bearing for 680-800frames and for SH630/SH710 (2 & 4 Pole)	Sleeve bearing
Vibration	0.12 IPS or as defined by NEMA	Special balance
Warranty	24 months from shipment per AboveNEMA Motor Supplemental Warranty Policy	Deferred and/or Extended

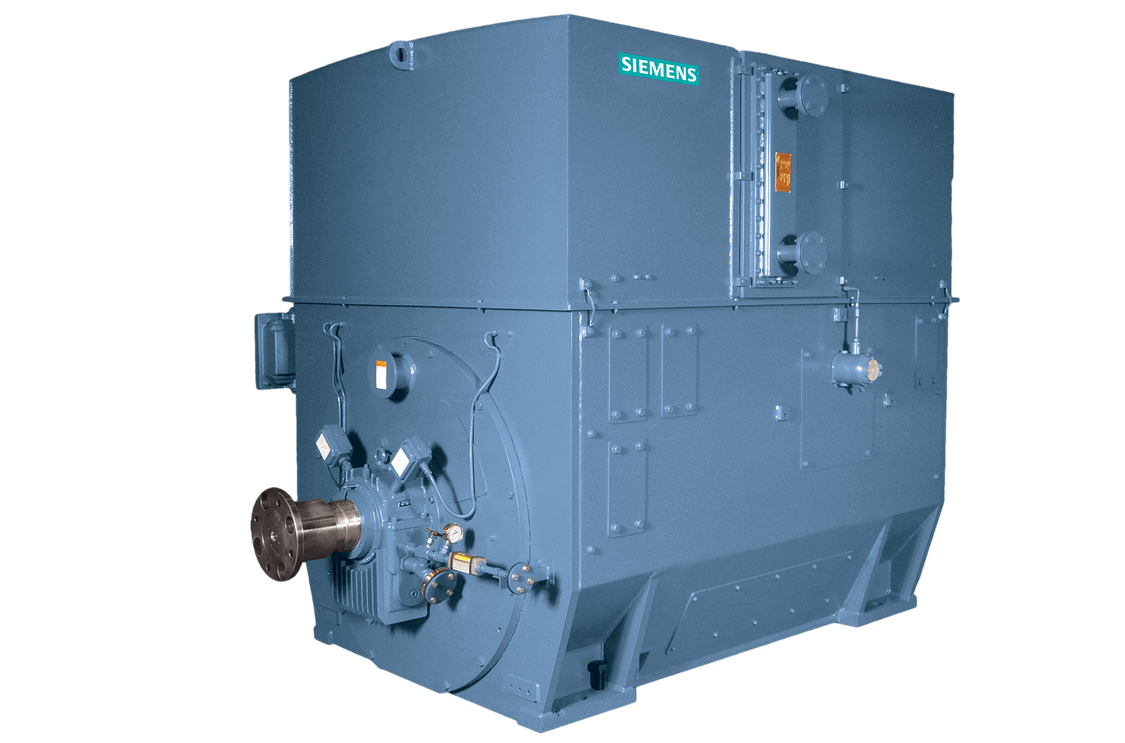

Horizontal TEWAC

TEWAC Enclosure / ICW81 / IP54 - Siemens Type CGG / 1RN

These horizontal, foot-mounted motors are designed for indoor and outdoor applications where internal parts must be protected from adverse ambient conditions. Utilizes water-to-air, tube-type heat exchangers with the added benefit of lower a noise level than TEAAC.

Feature	Standard	Available Option
Power Range	200 - 18,000 HP
Poles	2 - 16
Frame Sizes	580, 680, 800, SH630, & SH710
Voltage	460 - 13,200V (460V-690V to 800HP only)
Service Factor	1.0	1.15
Frame	Cast iron for 580-800 frames, fabricated steel for SH630/SH710 frame
Bearing Housings	Cast iron for 580-800 frames, fabricated steel for SH630/SH710 frame
Main Terminal Box	Cast iron for 580-800 frames, fabricated steel for SH630/SH710 frame	Fabricated steel
Auxiliary Boxes	Cast iron NEMA 4X	Stainless steel
Shaft	2 Pole - AISI 4140 4 Pole & slower - AISI 10455	Other materials available
Rotor	Die cast aluminum for 580 frames Induction-brazed copper bar for 680-SH710 frames	Induction-brazed copper bar where die cast aluminum is standard
Lamination Material	C5 core plate	N/A
Top Cover	Fabricated steel	N/A
Heat Exchanger	Single tube copper-nickel	Double tube copper-nickel Single tube stainless steel Double tube stainless steel
Insulation	<=600V is random wound class F >600V is form wound class F-VPI	N/A
Hardware	<=M12 - 300 series stainless steel >M12 - zinc-plated carbon steel (per API541 4th Edition)	N/A
Paint	Two-part epoxy	Special paint system
Paint Color	Siemens Motor Blue	Other colors
Bearing Type	Anti-friction for 580 frame and for SH630/SH710 (6 Pole & slower) Sleeve for 680-800 frames and for SH630/SH710 (2 & 4 Pole)	Sleeve bearing
Vibration	0.12 IPS or as defined by NEMA	Special balance
Warranty	24 months from shipment per AboveNEMA Motor Supplemental Warranty Policy	Deferred and/or Extended

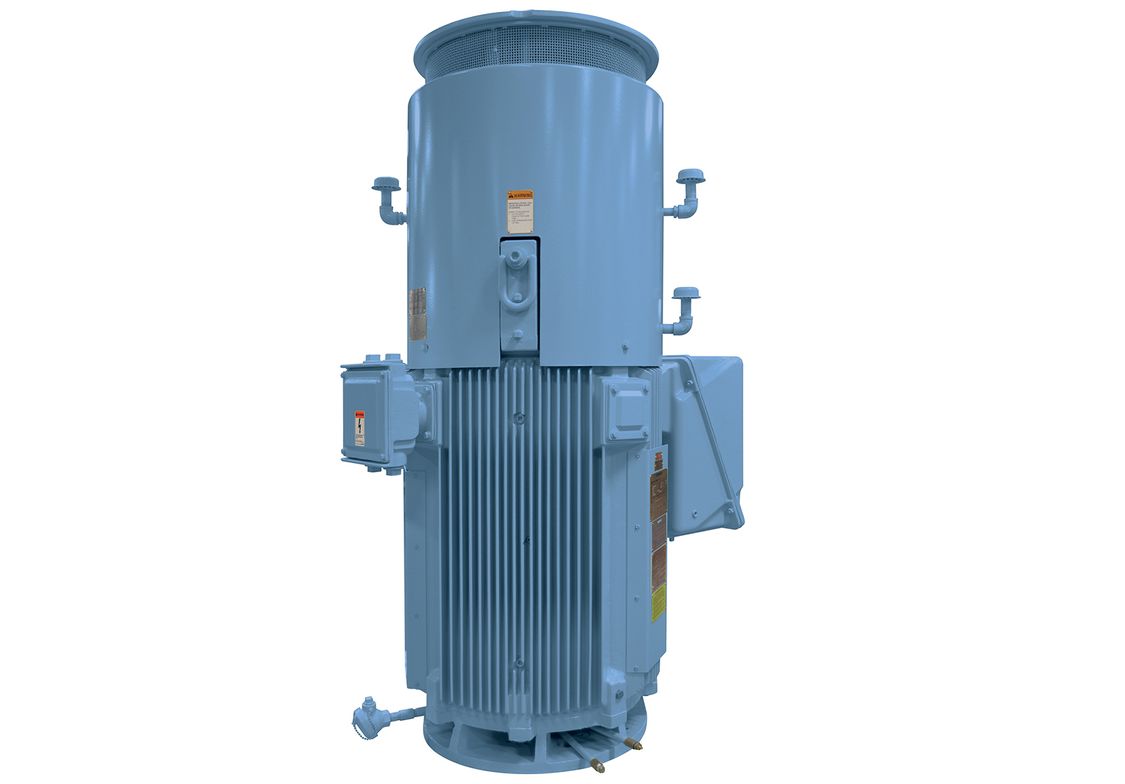

Vertical TEFC

TEFC Enclosure / IC411 / IP54 - Siemens Type CGZV & CGZHS

These vertical, flange-mounted motors are designed for indoor and outdoor applications where internal parts must be protected from adverse ambient conditions. Utilizes cooling fins on all four quadrants of yoke and housings.

Feature	Standard	Available Option
Power Range	200 - 900 HP
Poles	2 - 4 - 6
Frame Sizes	500 & 580
Voltage	2300 - 6900V
Service Factor	1.0	1.15
Frame	Cast iron
Bearing Housings	Cast iron
Main Terminal Box	Cast iron	Fabricated steel
Auxiliary Boxes	Cast iron	NEMA 4X
Shaft	Solid	Hollow for 4 - 6 pole
Shaft Material	AISI 1045	AISI 4140
Rotor	Die cast aluminum	Fabricated copper
Lamination Material	C5 core plate	N/A
External Cooling Fan	Aluminum	Other materials available
Fan Cover	Fabricated steel	N/A
Upper Thrust Bearing	Deep groove ball	Back-to-back angular contact for 2-pole, spherical roller for 4-6 pole
Lower Guide Bearing	Ball	N/A
Insulation	Class F-VPI	N/A
Hardware	300 series stainless steel	N/A
Paint	Two-part epoxy	Special paint system
Paint Color	Siemens Motor Blue	Other colors
Vibration	0.12 IPS or as defined by NEMA	Special balance
Warranty	24 months from shipment per AboveNEMA Motor Supplemental Warranty Policy	Deferred and/or Extended

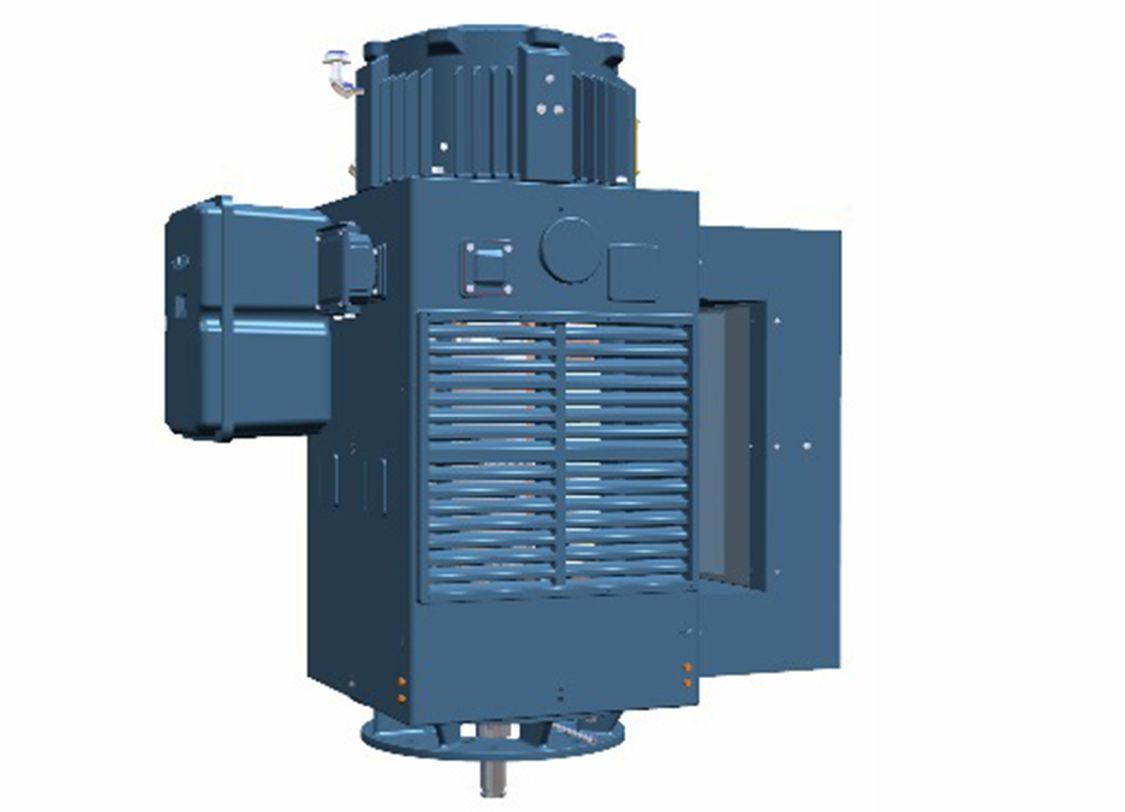

Vertical WPI/ODP

WPI Enclosure / IC01 / IP23 - Siemens Type CGV & CGHS

These vertical, flange-mounted motors are best suited for indoor applications and non-exposure to extreme ambient conditions.

Feature	Standard	Available Option
Power Range	200 - 4,000 HP
Poles	4 - 16
Frame Sizes	500, 580, 680, 800 & 1120
Voltage	2300 - 13,200V
Service Factor	1.0	1.15
Frame	Cast iron	N/A
Bearing Housings	Cast iron	N/A
Main Terminal Box	Cast iron for 500-800 frames, fabricated steel for 1120 frame	Fabricated steel for 500-800 frames
Auxiliary Boxes	Cast iron	NEMA 4X
Shaft	Solid	Hollow for 500-580 frames
Shaft Material	AISI 1045	AISI 4140
Rotor	Die cast aluminum for 500 & most 580 frames, fabricated copper for 680-1120 frames	Fabricated copper for 500-580 frames
Lamination Material	C5 core plate	N/A
Top Cover	Not applicable for 500 frames, fabricated steel for 580-1120 frames	N/A
Upper Thrust Bearing	Angular contact for 500 & 580 frames, spherical roller for 680-1120 frames	Spherical roller for 500 & 580 frames, shoe-type for 680-1120 frames
Lower Guide Bearing	Ball	N/A
Insulation	Class F-VPI	N/A
Hardware	300 series stainless steel	N/A
Paint	Two-part epoxy	Special paint system
Paint Color	Siemens Motor Blue	Other colors
Vibration	0.12 IPS or as defined by NEMA	Special balance
Warranty	24 months from shipment per AboveNEMA Motor Supplemental Warranty Policy	Deferred and/or Extended

Vertical WPII

WPII Enclosure / IC01 / IP24 - Siemens Type CGIIV & CGIIHS

These vertical, flange-mounted motors are specifically designed for outdoor applications where the motor is not likely to be protected by other structures.

Feature	Standard	Available Option
Power Range	200 - 4,000 HP
Poles	4 - 16
Frame Sizes	500, 580, 680, 800 & 1120
Voltage	2300 - 13,200V
Service Factor	1.0	1.15
Frame	Cast iron	N/A
Bearing Housings	Cast iron	N/A
Main Terminal Box	Cast iron for 500-800 frames, fabricated steel for 1120 frame	Fabricated steel for 500-800 frames
Auxiliary Boxes	Cast iron	NEMA 4X
Shaft	Solid	Hollow for 500-580 frames
Shaft Material	AISI 1045	AISI 4140
Rotor	Die cast aluminum for 500 & most 580 frames, fabricated copper for 680-1120 frames	Fabricated copper for 500-580 frames
Lamination Material	C5 core plate	N/A
Top Cover	Not applicable for 500 frames, fabricated steel for 580-1120 frames	N/A
Upper Thrust Bearing	Angular contact for 500 & 580 frames, spherical roller for 680-1120 frames	Spherical roller for 500 & 580 frames, shoe-type for 680-1120 frames
Lower Guide Bearing	Ball	N/A
Insulation	Class F-VPI	N/A
Hardware	300 series stainless steel	N/A
Paint	Two-part epoxy	Special paint system
Paint Color	Siemens Motor Blue	Other colors
Vibration	0.12 IPS or as defined by NEMA	Special balance
Warranty	24 months from shipment per AboveNEMA Motor Supplemental Warranty Policy	Deferred and/or Extended

Vertical TEAAC

TEAAC Enclosure / IC611 / IP54 - Siemens Type CAZV

These vertical, flange-mounted motors are designed for indoor and outdoor applications where internal parts must be protected from adverse ambient conditions. Utilizes air-to-air, tube-type heat exchangers.

Feature	Standard	Available Option
Power Range	800 - 3000 HP
Poles	4 - 16
Frame Sizes	680, 800, & 1120
Voltage	2300 - 13,200V
Service Factor	1.0	1.15
Frame	Cast iron & fabricated steel
Bearing Housings	Cast iron
Main Terminal Box	Cast iron for 680 & 800 frames, fabricated steel for 1120 frame	Fabricated steel for 680 & 800 frames
Auxiliary Boxes	Cast iron	NEMA 4X
Shaft	Solid	N/A
Shaft Material	AISI 1045	AISI 4140
Rotor	Fabricated copper	N/A
Lamination Material	C5 core plate	N/A
External Cooling Fan	Steel	Other materials available
Fan Cover	Fabricated steel	N/A
Heat Exchanger	Fabricated steel with aluminum cooling tubes	Stainless steel cooling tubes
Upper Thrust Bearing	Spherical roller	Shoe-type
Lower Guide Bearing	Ball	N/A
Insulation	Class F-VPI	N/A
Hardware	300 series stainless steel	N/A
Paint	Two-part epoxy	Special paint system
Paint Color	Siemens Motor Blue	Other colors
Vibration	0.12 IPS or as defined by NEMA	Special balance
Warranty	24 months from shipment per AboveNEMA Motor Supplemental Warranty Policy	Deferred and/or Extended

API 541/547 Motors

Feature	API 541 4th Edition	API 547
Configuration	Horizontal & Vertical	Horizontal
Enclosures	All	WPII & TEFC
Poles	2 - 16	2 - 8
Power Range	500 - 18,000 HP (<500 HP upon request)	250 - 3000 HP
Voltage	2300 - 13,200V	2300 - 13,200V
Service Factor	1.0 (1.15 option available)	1.0
Main Terminal Box	Cast iron or fabricated steel	Cast iron or fabricated steel
Auxiliary Boxes	Cast iron (NEMA 4X option available)	Cast iron (NEMA 4X option available)
Shaft	AISI 1045 (AISI 4140 option available)	AISI 1045 (AISI 4140 option available)
Rotor	Induction brazed copper bar	Aluminum die cast <=1000HP otherwise induction brazed copper bar. An Induction brazed copper bar option is available for <=1000HP
Lamination Material	C5 core plate	C5 core plate
Insulation	F-VPI	F-VPI
Hardware	300 series stainless steel	300 series stainless steel
Paint	Two-part epoxy (special paint system option available)	Two-part epoxy (special paint system option available)
Paint Color	Siemens Motor Blue (other color option available)	Siemens Motor Blue (other color option available)
Bearing Type	Sleeve bearing	Sleeve bearing
Warranty	24 months from shipment per AboveNEMA Motor Supplemental Warranty Policy	24 months from shipment per AboveNEMA Motor Supplemental Warranty Policy

IEEE 841 Motors

Specialty Motors per IEEE 841 - Siemens Type CZ & CGZ

These horizontal, foot-mounted motors are designed to comply with the requirements of the IEEE Std 841-2009 Standard for Petroleum and Chemical Industry - Severe Duty Totally Enclosed Fan-Cooled (TEFC) Squirrel Cage Induction Motors - Up to and Including 370KW (500HP).

Feature	Standard	Available Option
Power Range	200 - 500 HP
Poles	2 - 8
Frame Sizes	500 & 580
Voltage	460 - 4,000V
Service Factor	1.0
Frame	Cast iron
Bearing Housings	Cast iron
Main Terminal Box	Cast iron	Fabricated steel with standoff insulators and oversized to NEMA MG1 Figure 20.3 Type II
Auxiliary Boxes	Cast iron	NEMA 4X
Shaft	AISI 1045	AISI 4140
Rotor	Die cast aluminum	Fabricated copper
Lamination Material	C5 core plate
External Cooling Fan	Bronze alloy
Fan Cover	Cast iron
Insulation	<600V is Class F random wound, >600V is Class F-VPI
Hardware	300 series stainless steel
Paint	Two-part epoxy	Special paint system
Paint Color	Siemens Motor Blue	Other colors
Bearing Type	Ball bearing
Vibration	0.10 IPS on 2 pole, 0.08 IPS on all others	Special balance
Warranty	24 months from shipment per AboveNEMA Motor Supplemental Warranty Policy	Deferred and/or Extended

Medallion Series Motors

Highly customizable & flexible

Document Links

Brochure

API 541/547 Brochure

Motor Retrofit Guide

Technical Details
